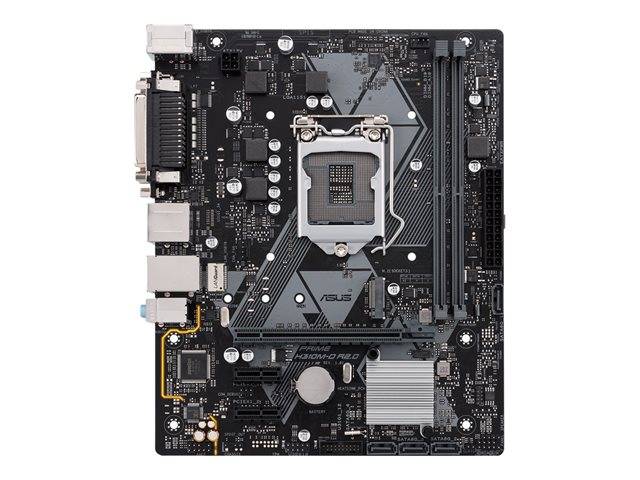

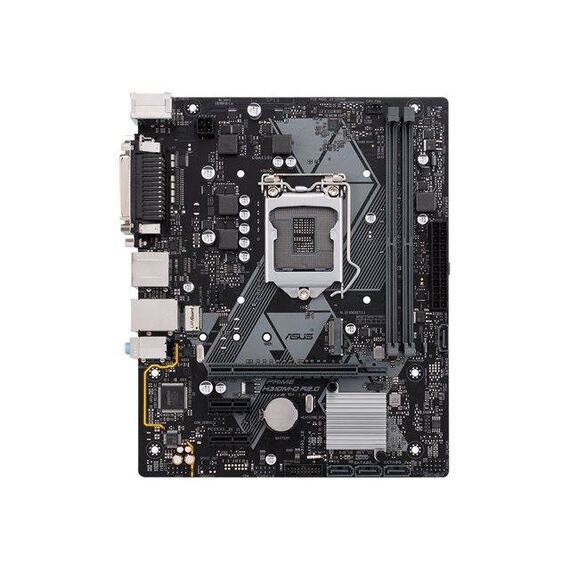

ASUS PRIME H310M-D R2.0 / Motherboard / micro ATX / LGA1151 Socket / H310 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0YZ0-M0EAY0

Brand: Asus

CODE (SKU):

90MB0YZ0-M0EAY0

€83.40 €90.65

€99.25 inc. VAT

Out of stock

Add to wish list Ask a question

Product Code04:273520 EAN Code4718017111263 ManufacturerAsus

Sales 8%

Find similar

Delivery

Payment options

Description
Features

ASUS PRIME H310M-D R2.0 / Motherboard / micro ATX / LGA1151 Socket / H310 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0YZ0-M0EAY0

Description

ASUS PRIME 300 series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions.

ASUS PRIME H310M-D R2.0 / Motherboard | 90MB0YZ0-M0EAY0

Special Features

Improved DDR4 stability
Future-proof connectivity
Built to last

Product features

Improved DDR4 stability
300 series support a wide range of dual- and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.
Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds faster than USB 2.0 with instant connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
Built to last
ASUS motherboards are extensively tested for compatibility - offering the peace of mind of knowing that your ASUS motherboard is fit for all environments and applications. Choosing ASUS is an assurance of trouble-free DIY experiences.

Product Specification

Product Type	Motherboard - micro ATX
Chipset Type	Intel H310
Processor Socket	LGA1151 Socket
Max Processors Qty	1
Compatible Processors	Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max Size	32 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Allocated RAM Size	1 GB
Type	HD Audio (8-channel)
Audio Codec	Realtek ALC887
Compliant Standards	High Definition Audio
Network Controller	Realtek RTL8111H
Network Interfaces	Gigabit Ethernet
Expansion Slots	1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2
Interfaces	1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x serial ¦ 1 x parallel ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces	2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, 4 Phase Power Design, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS OptiMem
Width	22.6 cm
Depth	18.5 cm
Service & Support	Limited warranty - 3 years
