ASUS PRIME Q370M-C / Motherboard / micro ATX / LGA1151 Socket / Q370 / USB 3.1 Gen 1, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB0W70-M0EAYM
Description
ASUS lineup of business motherboards provides enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization.
ASUS PRIME Q370M-C / Motherboard | 90MB0W70-M0EAYM
Special Features
- Protection against moisture and corrosion
- Anti-sulfur resistors
- Overvoltage protection
Product features
- Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and Internet cafés. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard. - Anti-sulfur resistors
Consider long-term reliability of commercial product, ASUS business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS business motherboard can be operated under the harsh environments. - Overvoltage protection
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel Q370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size | 1024 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219LM |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 1 x M.2 ¦ PCIe -connectors: 1 x M.2 |

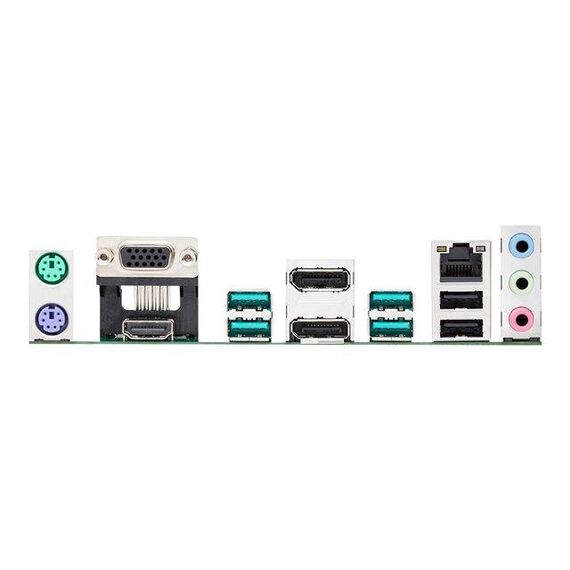

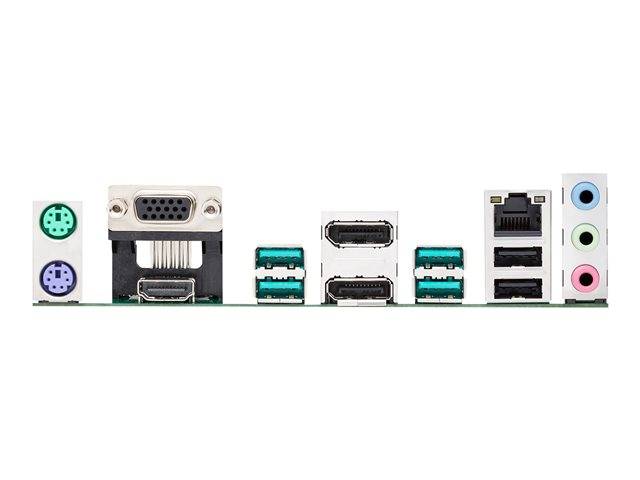

| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 2 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x parallel - header ¦ 1 x speaker - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | WatchDog Timer, jack retasking, Q-DIMM, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, Intel Optane Memory Ready, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard |

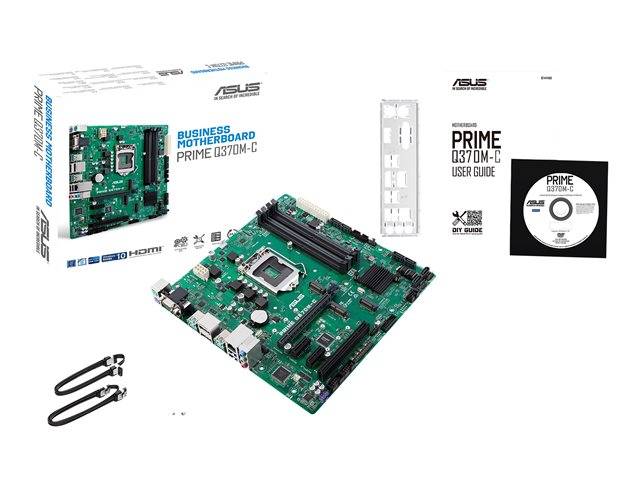

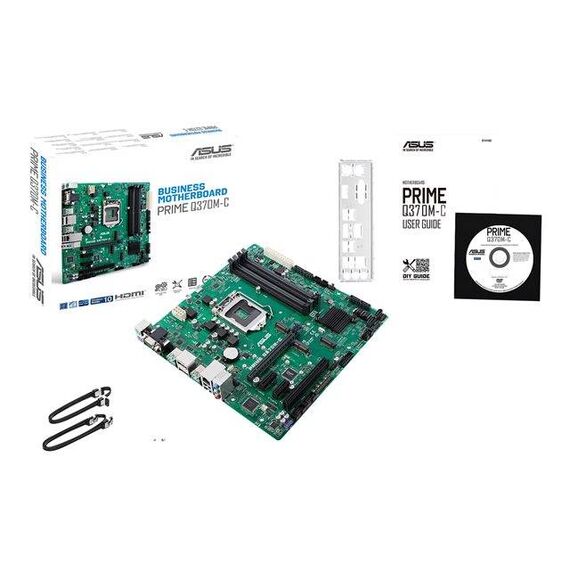

| Included Accessories | I/O back cover, 3 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Compliant Standards | Plug and Play, UL, FCC, NIST SP800-147 |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB0W70-M0EAYM
More Details
Product Code
B993F11
EAN Code
4718017039468
Manufacturer
Asus
