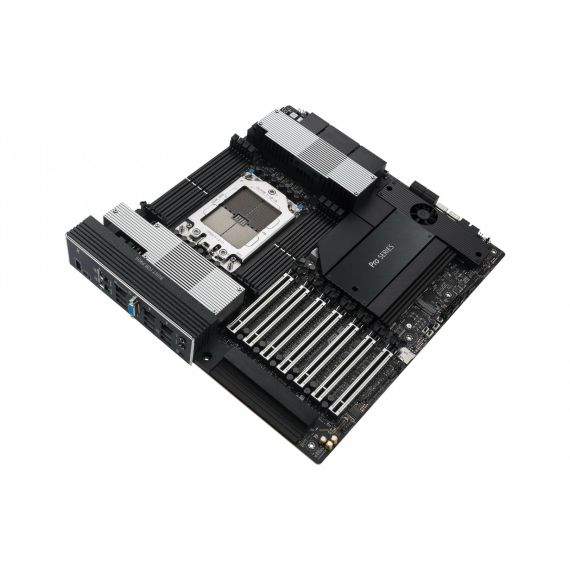

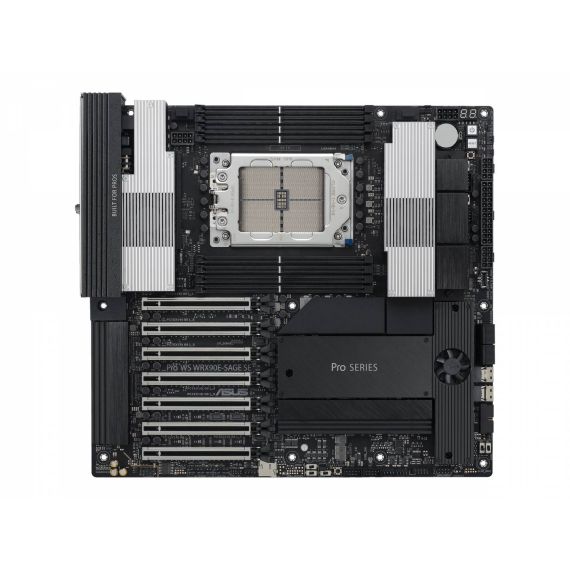

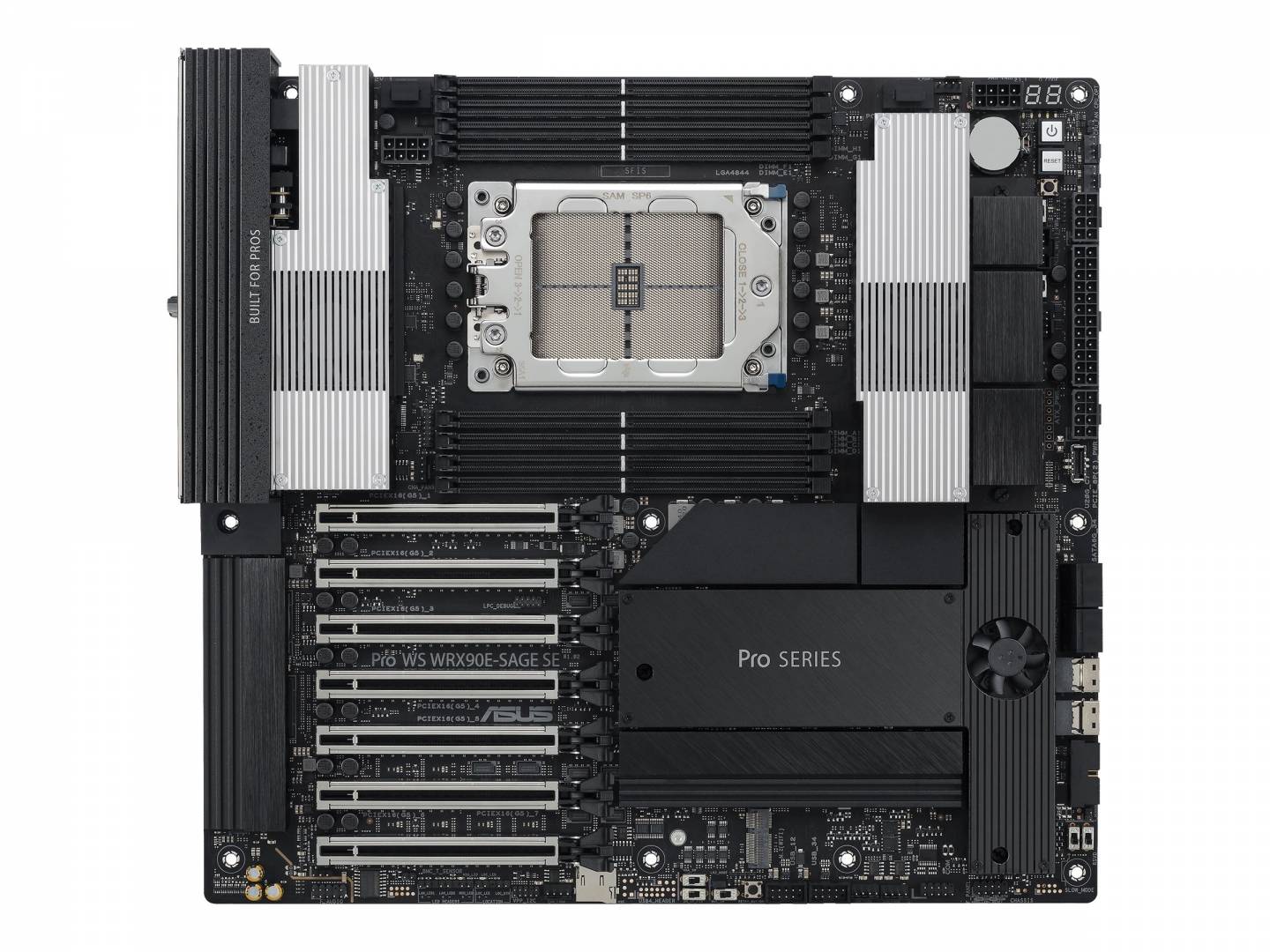

ASUS PRO WS WRX90E-SAGE SE - Motherboard - SSI EEB AST2600 - Socket sTR5 - AMD WRX90 Chipset - USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 2x2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (6-channel) | 90MB1FW0-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Ultrafast connectivity
Features seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support. - Robust power and thermal design
32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad. - PCIe Q-release slim
Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch. - Trusted stability
Validated for extensive compatibility with advanced technologies, an expansive QVL list, and tested for 24/7 operation.
Special Fetures
- AMD sTR5 socket supports up to 96-core CPUs
- Ultrafast connectivity
- Robust power and thermal design
- PCIe Q-release slim
- Trusted stability
Product Specification
| Product Type | Motherboard - SSI EEB |
| Processor | AST2600 |
| Chipset Type | AMD WRX90 |
| Processor Socket | Socket sTR5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Supported RAM | |
| Technology | DDR5 |
| Supported RAM Integrity Check | ECC |
| Registered or Buffered | Registered |
| Features | Quad channel memory architecture |
| Audio | |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 8 x DIMM 288-pin ¦ 6 x PCIe 5.0 x16 ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 4 x M.2 ¦ PCIe 4.0 -connectors: 2 x SlimSAS |

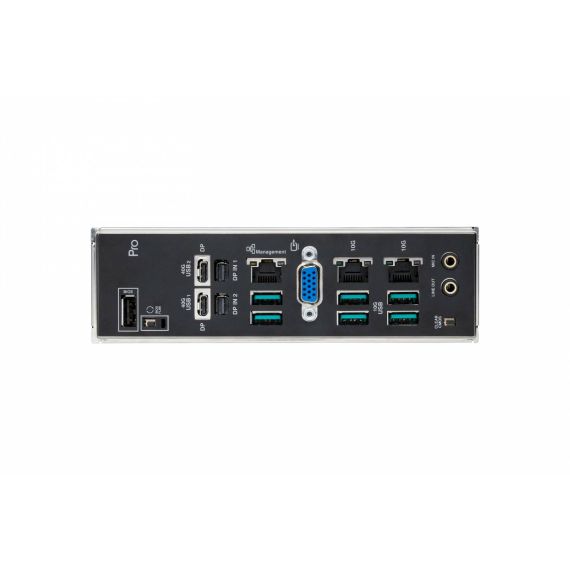

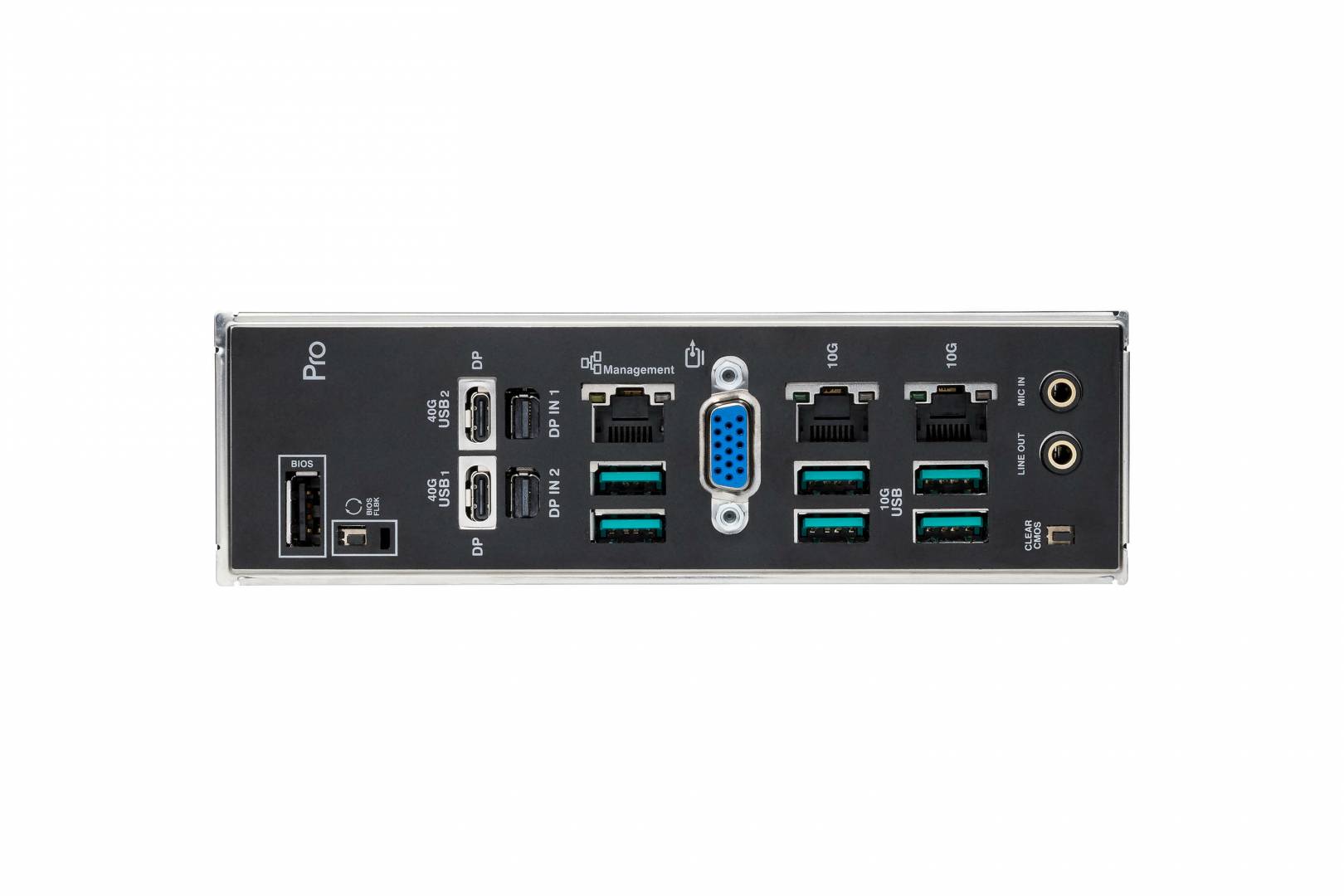

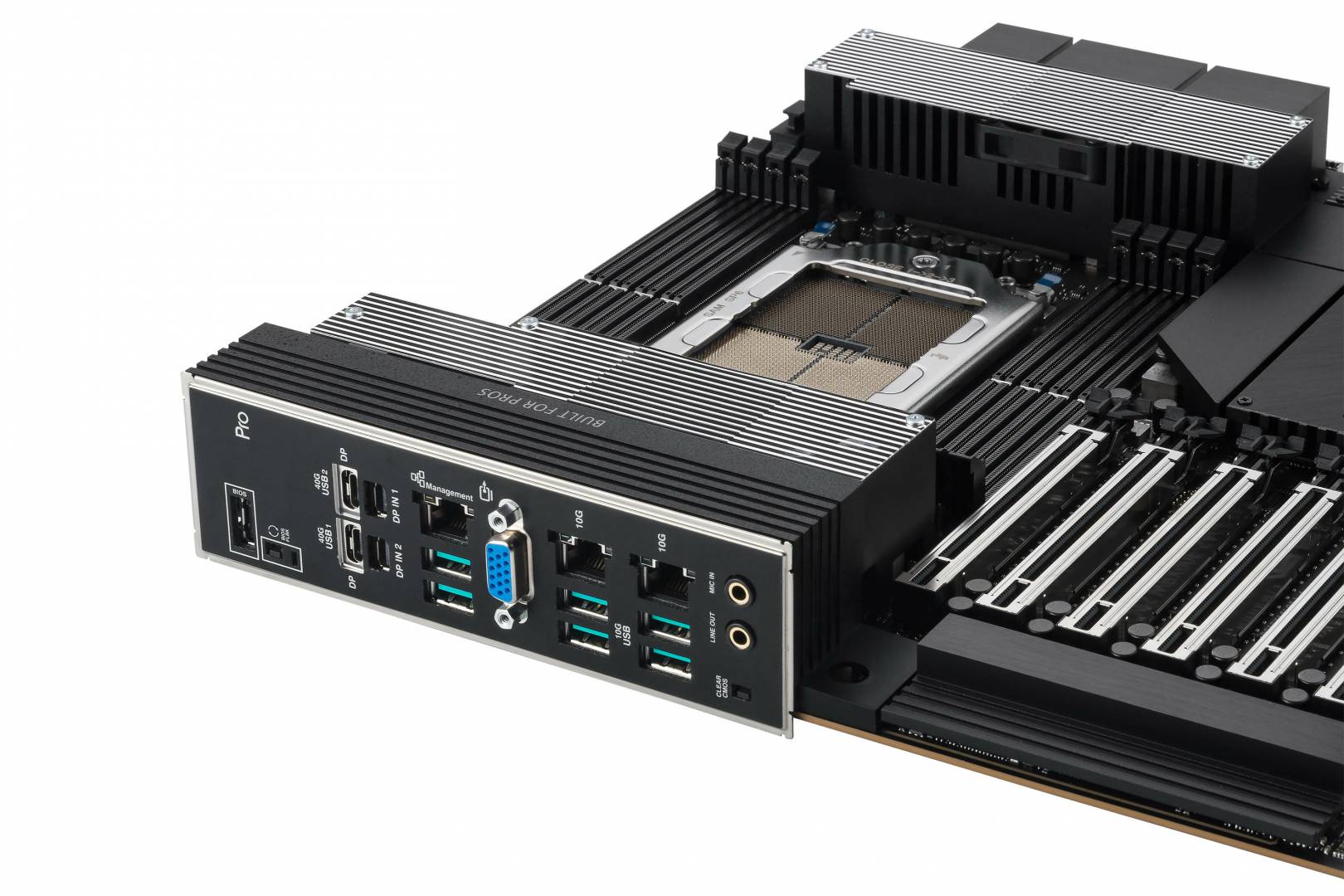

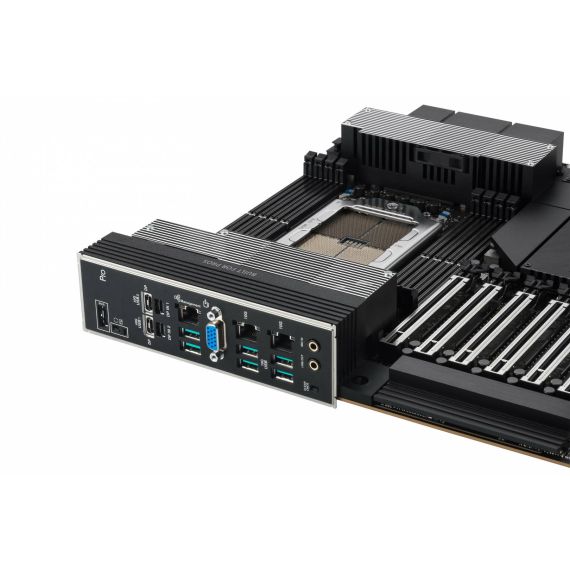

| Interfaces | 1 x VGA ¦ 2 x Mini DisplayPort ¦ 6 x USB 3.2 Gen 2 ¦ 2 x USB4 ¦ 1 x USB 2.0 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector |
| Features | |
| BIOS Features | UEFI BIOS |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Q-Code, Clear CMOS Button, ASUS Stainless Steel Back I/O, overcurrent protection, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, ASUS ProCool II, M.2 Q-Latch, PCIe Slot Q-Release, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, steel backplate, M.2 heatsink backplate, Q-Connector, 32+3+3+3 Phase Power Design |
| Miscellaneous | |
| Included Accessories | Thermistor cable, Q-Connector, M.2 Q-Latch, M.2 Key E screw package, AMI license sticker, 4 x M.2 rubber package |
| Cables Included | 4 x Serial ATA cable ¦ 2x 8-pin PCIe to single 8-pin CPU convertor ¦ 1 x 24-pin power cable (Y-cable) ¦ 2 x Mini DisplayPort cable |
| Software Included | ASUS CPU-Z, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial) |
| Width | 30.5 cm |
| Depth | 33 cm |
Features - Asus - 90MB1FW0-M0EAY0
More Details
Product Code
04:458318
EAN Code
4711387441145
Manufacturer
Asus
