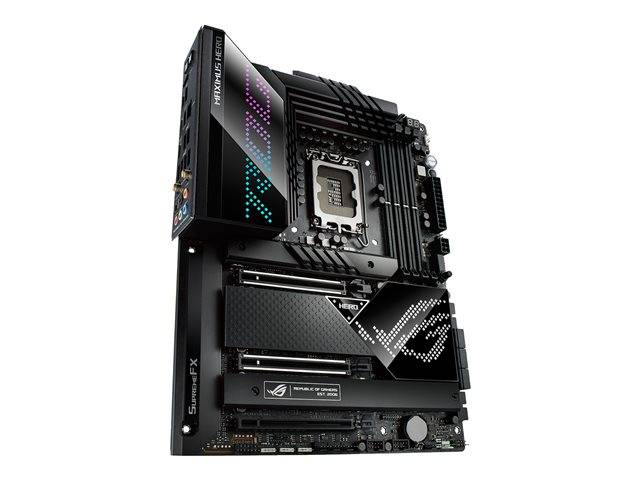

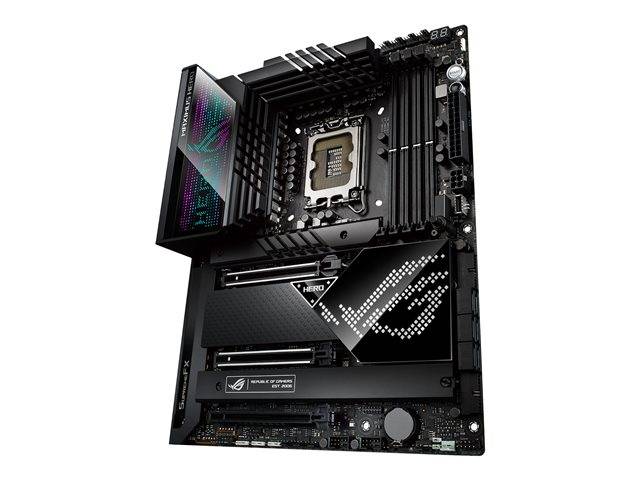

ASUS ROG MAXIMUS Z690 HERO / Motherboard / ATX / LGA1700 Socket / Z690 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB18E0-M0EAY0
90MB18E0-M0EAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
ASUS ROG MAXIMUS Z690 HERO / Motherboard / ATX / LGA1700 Socket / Z690 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB4 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB18E0-M0EAY0
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4082) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 4.0 x16 (x4 mode) |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |

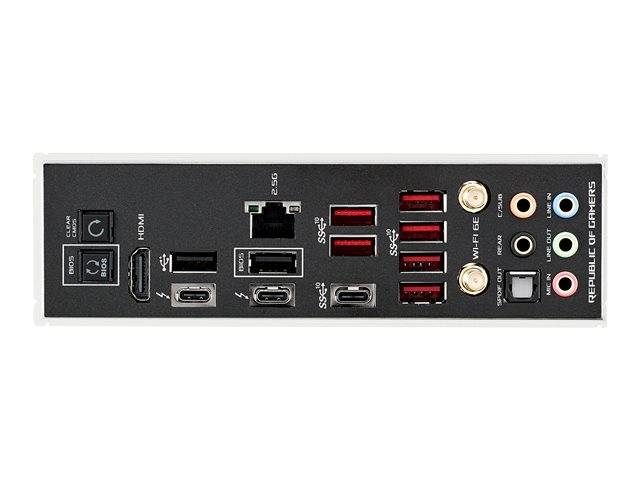

| Interfaces | 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x HDMI ¦ 2 x Thunderbolt 4/USB4 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 6-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| BIOS Type | AMI |
| BIOS Features | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS ROG Extreme OC, SupremeFX Shielding technology, ASUS DIGI+ Power Control, Gold Plated Audio Hardware, Clear CMOS Button, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ESS 9018 SABRE HiFi DAC, FlexKey button, ASUS ProCool II, GameFirst VI, ASUS HYDRANODE, M.2 Q-Latch, SafeDIMM |
| Included Accessories | ROG fan stickers, 2 x M.2 screws, RGB (RGBW) LED strip extension cable, ROG thank you card, Q-Connector, ROG key chain, 1 x M.2 rubber package, USB drive, ARGB LED strip extension cable, graphics card holder |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, WinRAR, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year licence), MemTest86, ASUS AURA Creator, AIDA64 Extreme (1 year licence) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB18E0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
03:185348
EAN Code
4711081455493
Manufacturer
Asus
