ASUS ROG-STRIX-1000G / Power supply (internal) / ATX12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt | 90YE00A5-B0NA00
Please sign in so that we can notify you about a reply
- Let it sink in
The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0 dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

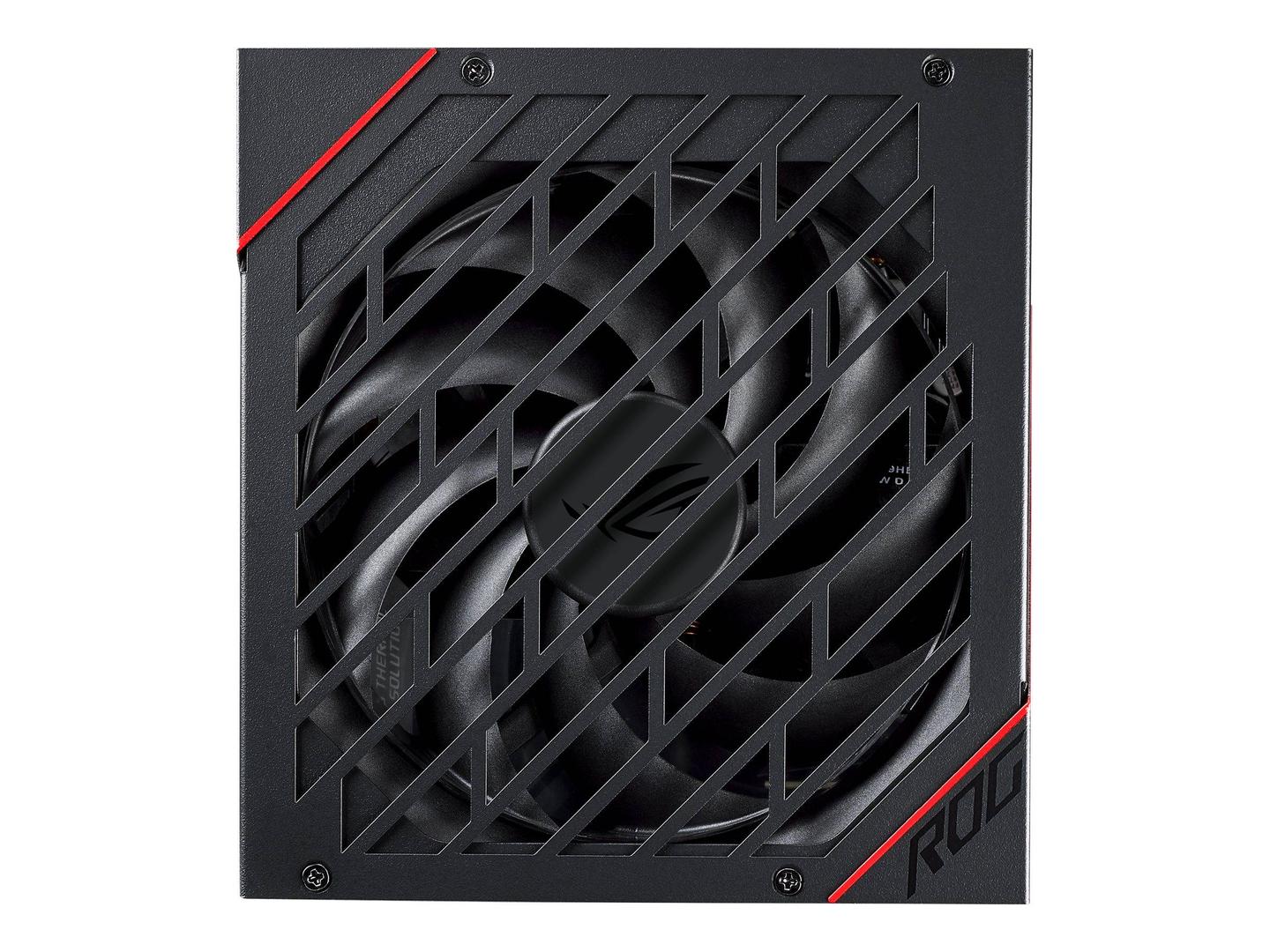

- Axial-tech fan design
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 2x longer lifespan
Different bearing types have unique pros and cons.
- Quiet intelligence
An onboard controller brings the 135 mm fan to a standstill when thermal design power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.
- Heart of gold
Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
- Cosmetic customization
Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

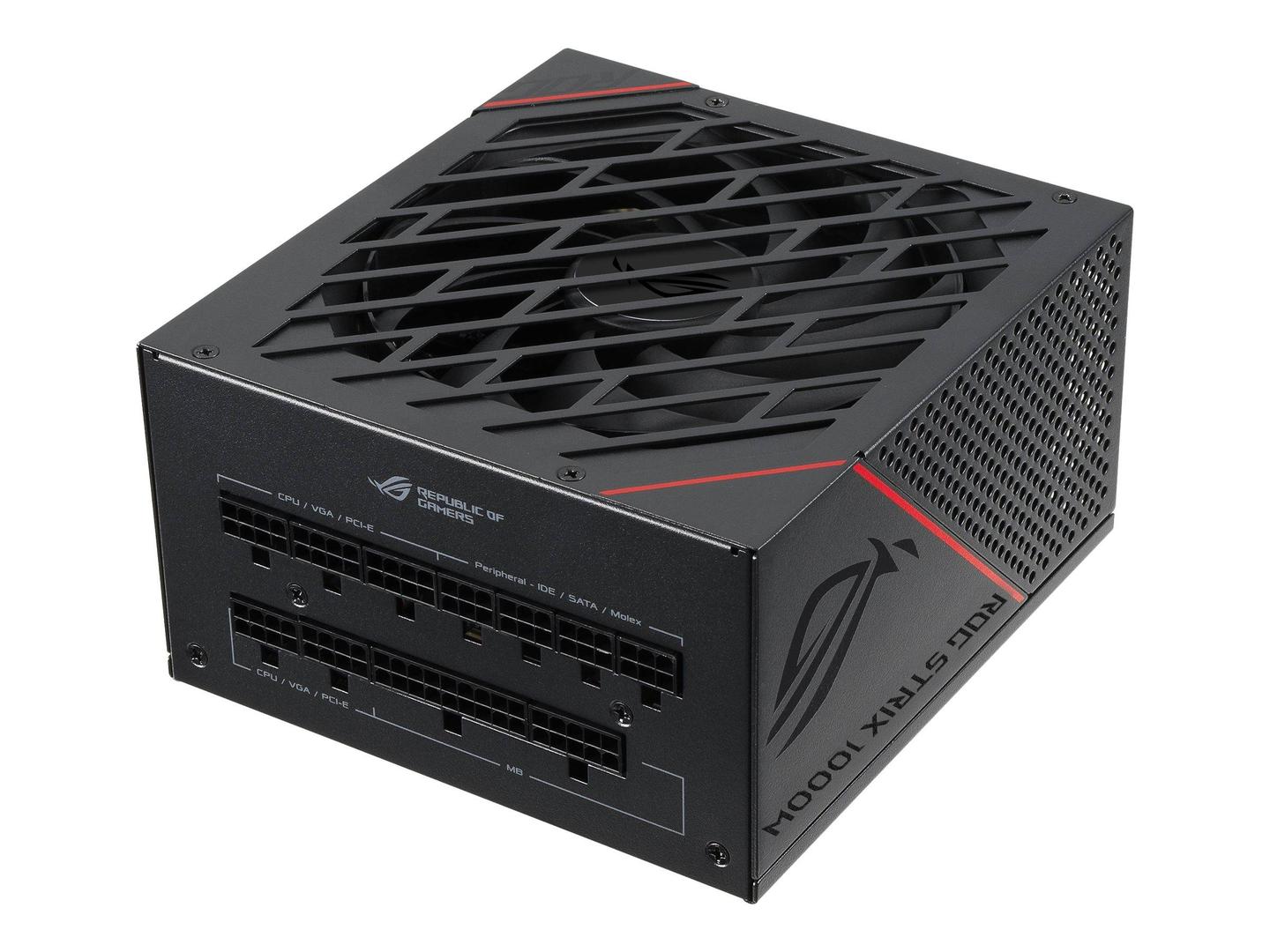

- Fully modular cables
Each model comes with fully modular 24-pin, 6+2-pin PCI-e, and 8-pin CPU cables that have embedded capacitors to reduce voltage ripple. And if you'd like to add a dash of color to your build, the CableMod coupon will set you on your way towards next-level customization.
- ROG heatsinks cover critical components, delivering lower temperatures and reduced noise
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0 dB Technology lets you enjoy light gaming in relative silence
- Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking
- Fully modular cables keep your rig neat and tidy
|Device Type||Power supply - internal|
|PSU Form Factor||ATX|
|Power Device||Power Device|
|Input Voltage||AC 100-240 V|
|Power Output Connectors Details||1 x power 24 pin ATX with detachable 4 pin section Â¦ 2 x power 8 pin +12V with detachable 4 pin section Â¦ 6 x 8 pin PCI Express power with detachable 2 pin section Â¦ 8 x 15 pin Serial ATA power Â¦ 6 x 4 PIN internal power|
|Output Voltage||+3.3, +5, Â±12 V|
|Power Capacity||1000 Watt|
|Output Current||+3.3V - 25 A Â¦ +5V - 25 A Â¦ +12V - 83 A Â¦ -12V - 0.3 A Â¦ +5VSB - 3 A|
|Modular Cable Management||Yes|
|80 PLUS Certification||80 PLUS Gold|
|Included Accessories||2 x ROG badges, ROG logo magnet, 3 x ROG labels|
|Cooling System||135 mm fan|
|Features||Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology|
|Manufacturer Warranty||Manufacturer Warranty|
|Service & Support||Limited warranty - 10 years|
|Dimensions & Weight||Dimensions & Weight|
|Dimensions & Weight (Shipping)||Dimensions & Weight (Shipping)|
|Shipping Weight||3.54 kg|
