ASUS ROG-STRIX-750G / Power supply (internal) / ATX12V / 80 PLUS Gold / AC 100-240 V / 750 Watt | 90YE00P3-B0NA00

90YE00P3-B0NA00
217.37
(258.67 inc. VAT)
Availability: 10 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:422245 EAN Code4711081722366 ManufacturerAsus

Product Features

  • ROG heatsinks: Let it sink in
    The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0 dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.
  • Axial-tech fan design: Better, faster, stronger
    Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.
  • Dual ball fan bearings: 2x longer lifespan
    Different bearing types have unique pros and cons. In a PSU, durability is paramount, so ASUS built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
  • 0 dB technology: Quiet intelligence
    An onboard controller brings the 135 mm fan to a standstill when total draw power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.
  • 80 Plus Gold certification: Heart of gold
    Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 Plus Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
  • Cosmetic customization
    Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.
  • Fully modular cables
    Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.

Special Features

  • ROG heatsinks cover critical components. Lower temps result in a longer lifespan and reduced noise
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • 0 dB Technology lets you enjoy light gaming in relative silence
  • An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
  • Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking
  • Fully modular cables keep your rig neat and tidy

Product Specification

Device Type Power supply - internal
Specification Compliance ATX12V
PSU Form Factor ATX
Power Device Power Device
Input Voltage AC 100-240 V

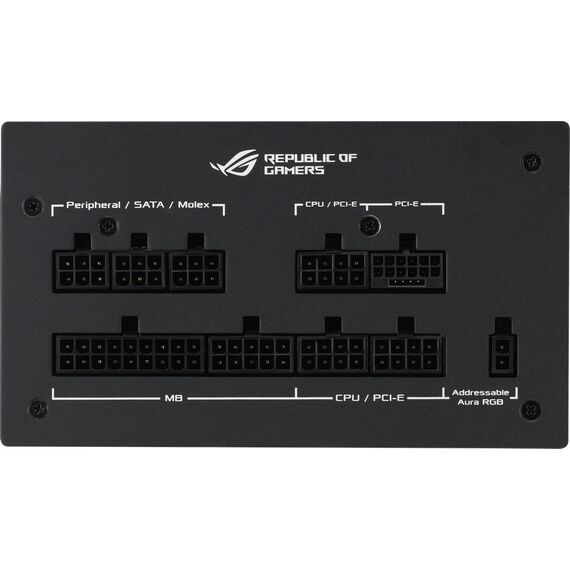

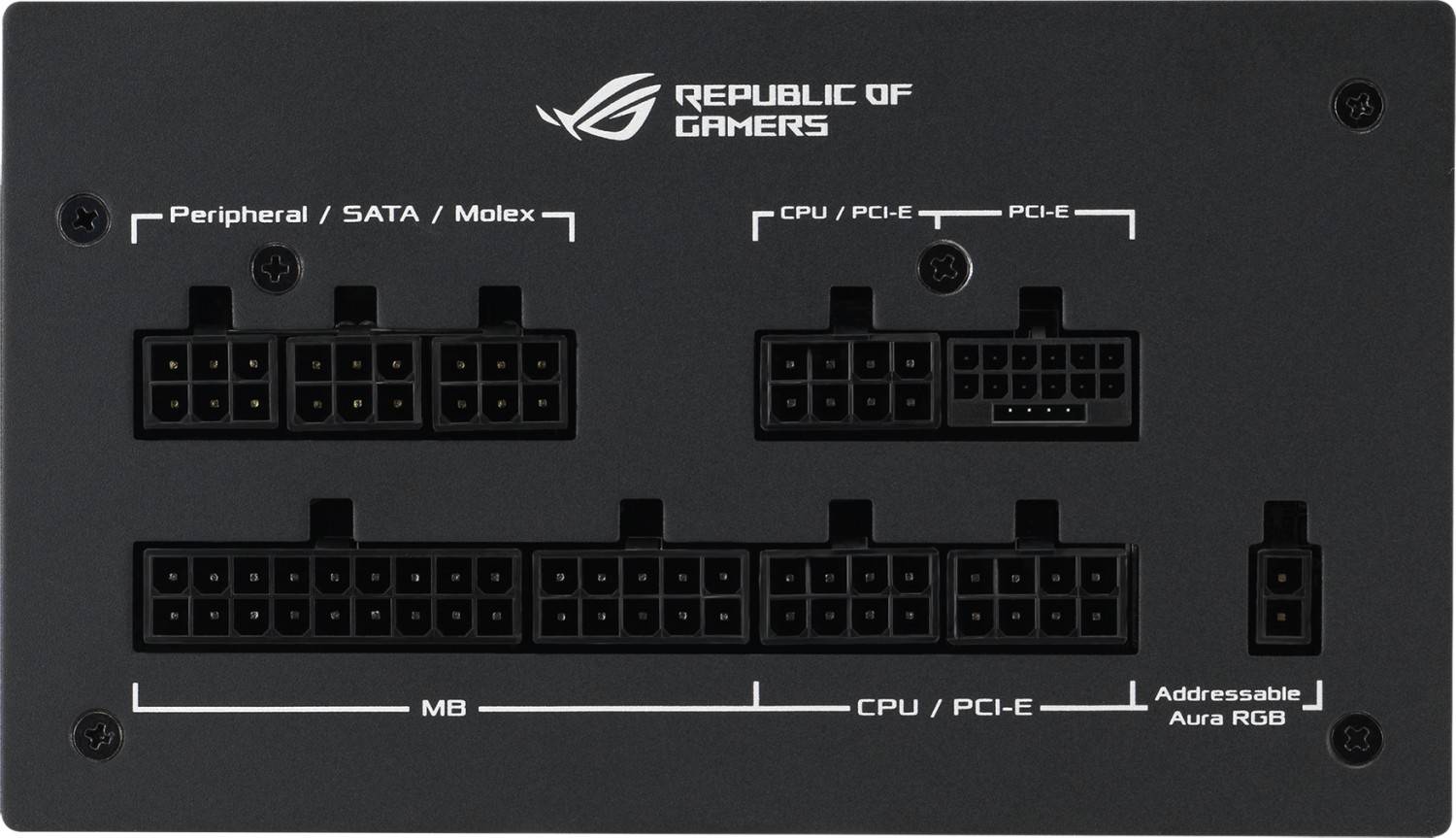

Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage +3.3, +5, ±12 V
Power Capacity 750 Watt
Output Current +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 62 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management Yes
80 PLUS Certification 80 PLUS Gold
Miscellaneous Miscellaneous
Included Accessories 2 x ROG badges, ROG logo magnet, 3 x ROG labels
Cables Included ATX power cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 100 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable ¦ AC input cable - external
Cooling System 135 mm fan
Features Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology
Compliant Standards CCC, RoHS, WEEE, EAC
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 10 years
Dimensions & Weight Dimensions & Weight
Width 15 cm
Depth 16 cm
Height 8.6 cm
