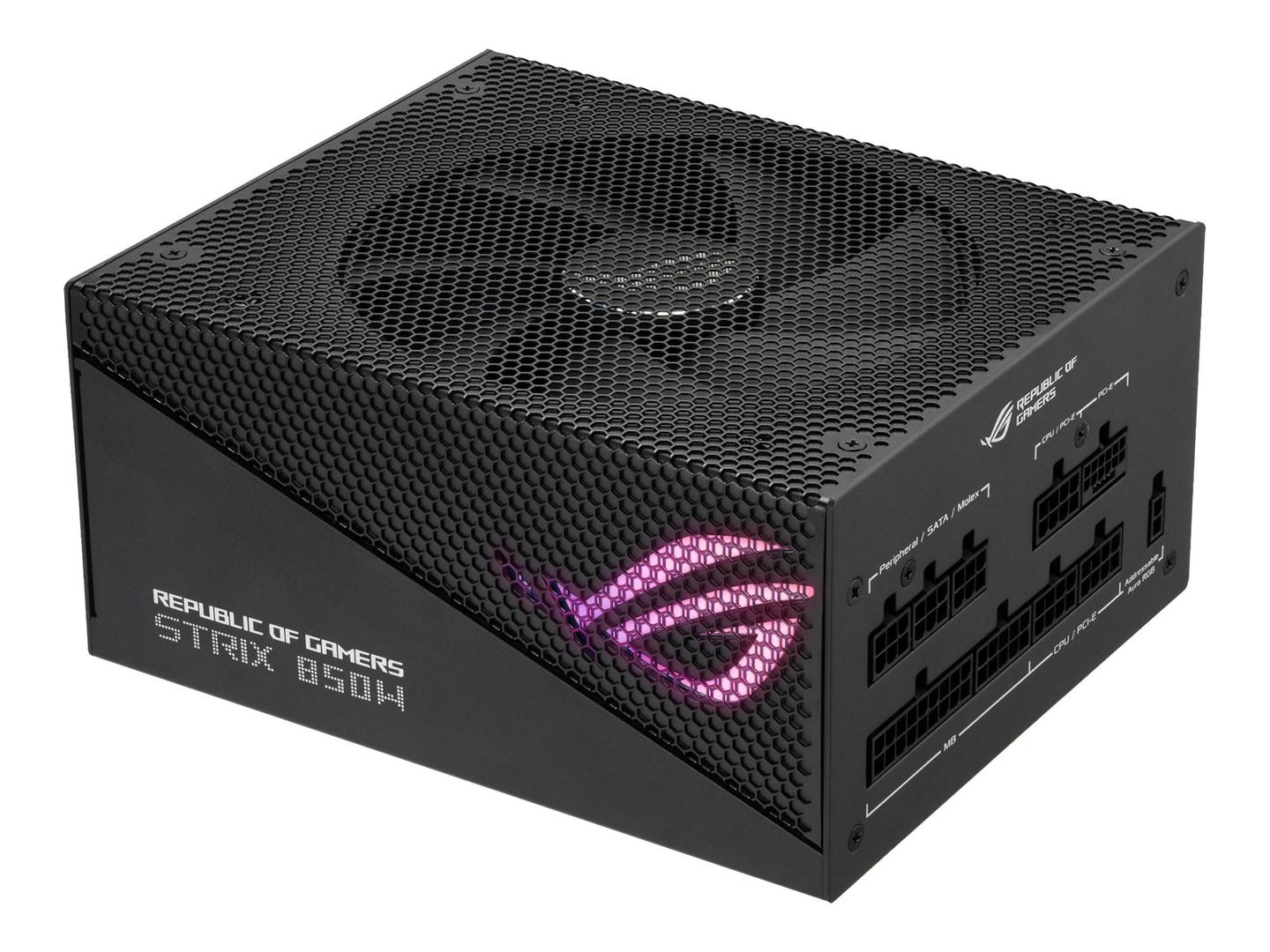

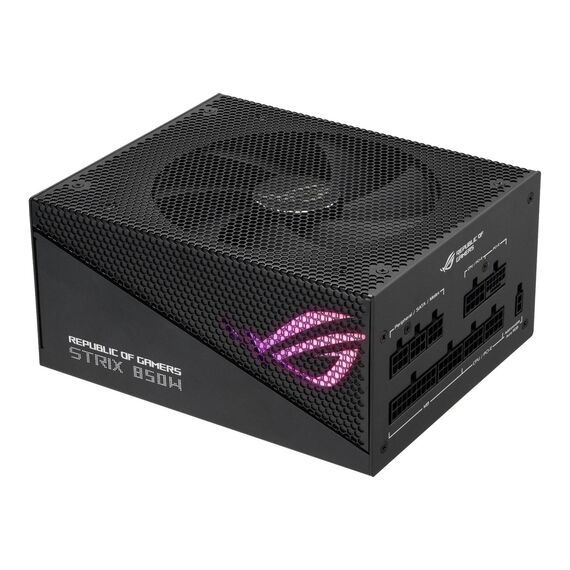

ASUS ROG Strix / Aura Edition / power supply (internal) / ATX12V 3.0/ EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt | 90YE00P2-B0NA00
90YE00P2-B0NA00
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 3 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 70.8 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Cables Included | AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 16-pin 12VHPWR power cable 70 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ ARGB sync cable 80 cm ¦ 3x Serial ATA modular cable ¦ 2x Serial ATA modular cable ¦ 4 pin internal power cable |
| Cooling System | 135 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, aluminium enclosure, 0dB fan button |
| Compliant Standards | RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 2.728 kg |
Features - Asus - 90YE00P2-B0NA00
More Details
Product Code
03:204264
EAN Code
4711081722014
Manufacturer
Asus
