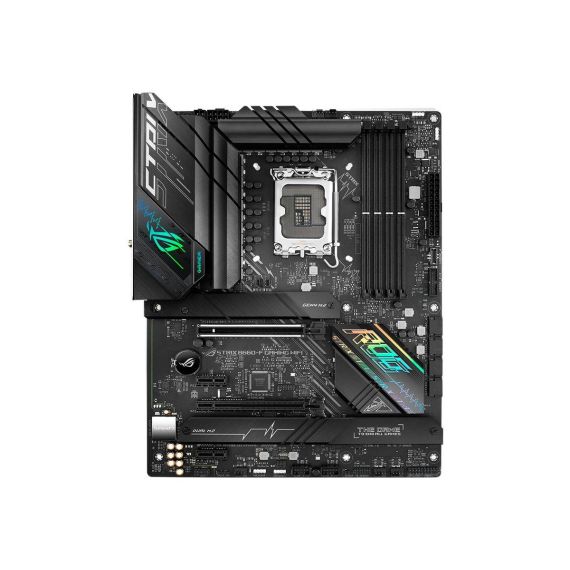

ASUS ROG STRIX B660-F GAMING WIFI / Motherboard / ATX / LGA1700 Socket / B660 Chipset / USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB18R0-M1EAY0

Product Features

• Teamed power stages
  16+1 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors can take full advantage of.
• Alloy chokes and durable capacitors
  High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
• ProCool power connector
  The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.
• Digi+ power control
  The Digi+ voltage regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.
• Six-layer PCB
  A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
• PCIe performance
  With three strategically placed M.2 slots, ROG Strix B660-F Gaming WiFi takes full advantage of CPU and chipset bandwidth to usher in support for dizzyingly quick PCIe 4.0 SSDs and high-capacity drives that blaze past traditional SATA-based storage.
• Undeniably ROG Strix
  The ROG Strix B660-F Gaming WiFi will turn heads with a striking matte black finish that contrasts with a bold Aura RGB-illuminated glitch-effect logo. Meanwhile, parallel strakes and dotted text on the precision-cut metal I/O shroud, M.2 and PCH heatsinks tie the whole aesthetic together and underline the ROG Strix fundamentals of speed, diversity and attitude.
• Outshine the competition
  ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control, and a variety of presets for both embedded RGB LEDs and third-party lighting strips. In addition, all lighting can be easily synced with other Aura-capable ASUS hardware.
• UEFI BIOS
  The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY and more comprehensive features for seasoned veterans.
• MemTest86
  For added convenience, MemTest86 has been pre-installed into the ROG UEFI (BIOS). Run the test to pinpoint memory issues with just one click, without needing to insert a USB stick or load an operating system. The memory report will also be stored in the BIOS archives for reference.
• 5-way optimization
  The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Special Features

• Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
• Optimal power solution: 16+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized thermal design: integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates
• High-performance Networking: on-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best gaming connectivity: supports HDMI 2.1 and DisplayPort 4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
• Intelligent control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY friendly design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Clr CMOS button
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
• Industry-leading gaming audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
• Renowned software: bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
