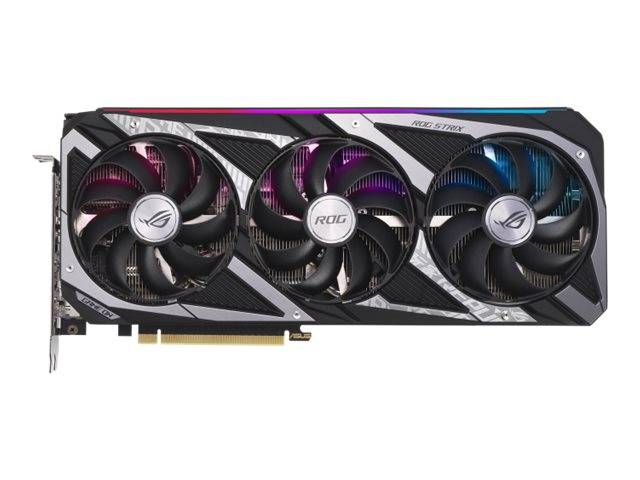

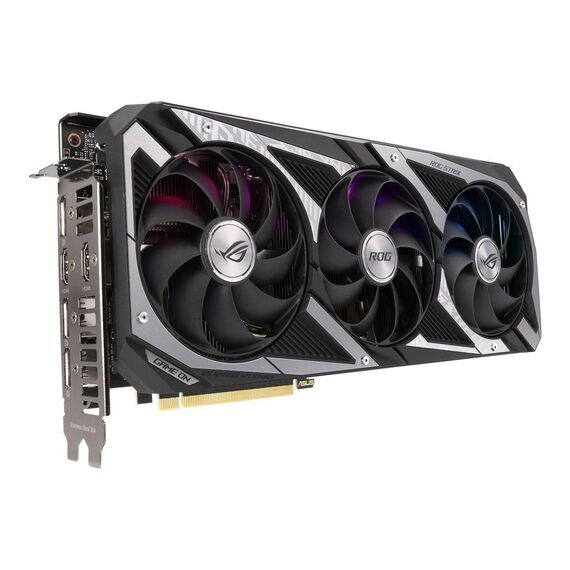

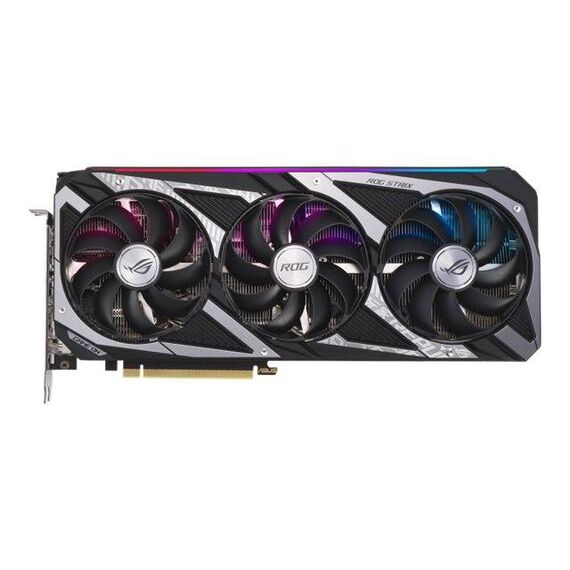

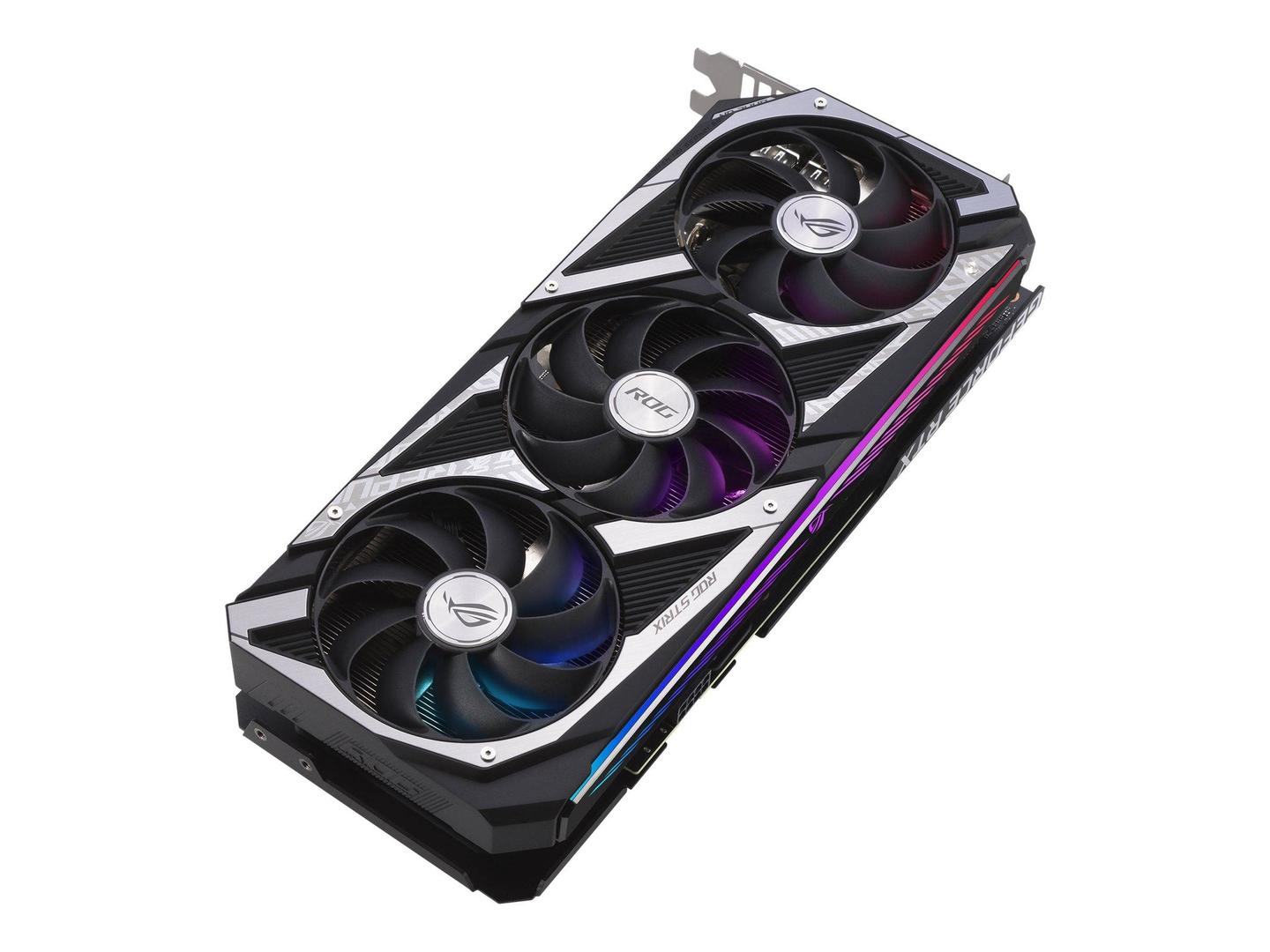

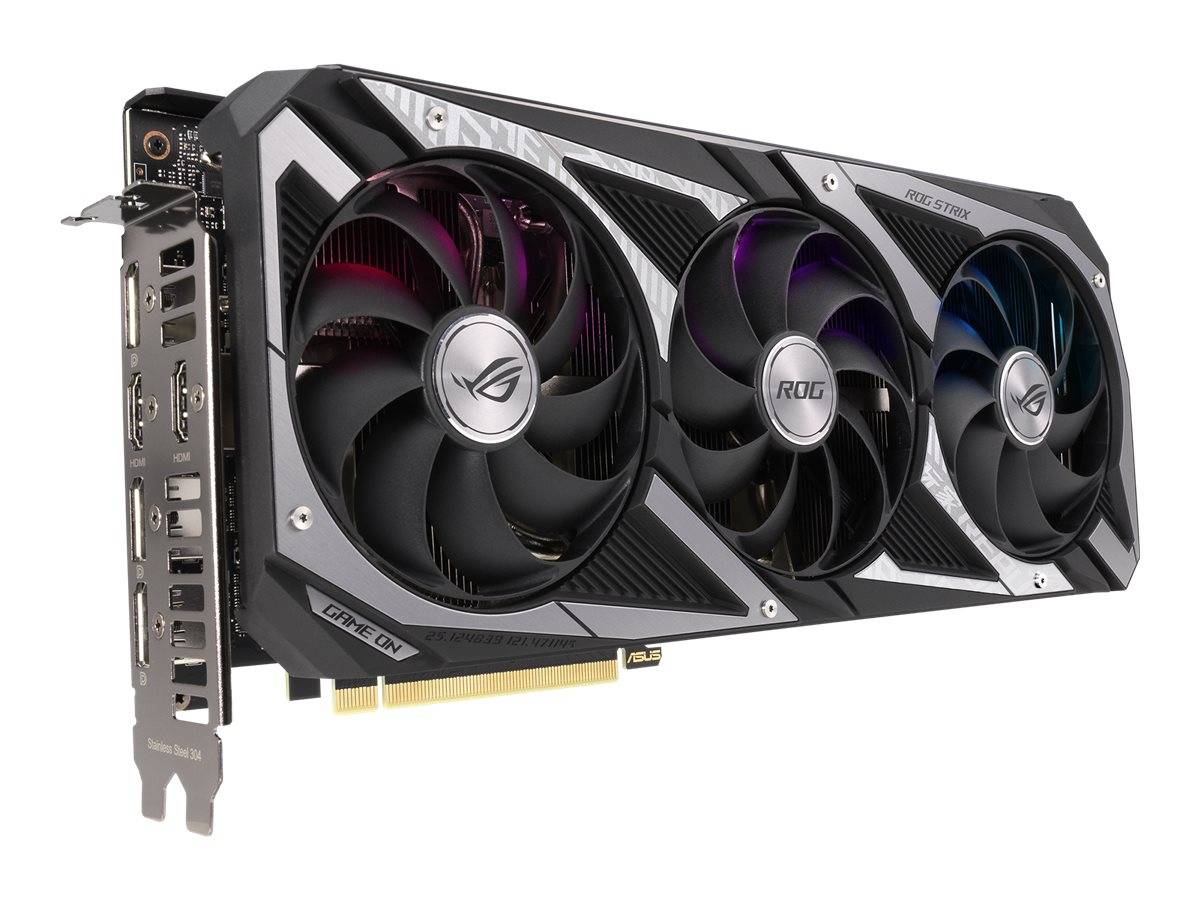

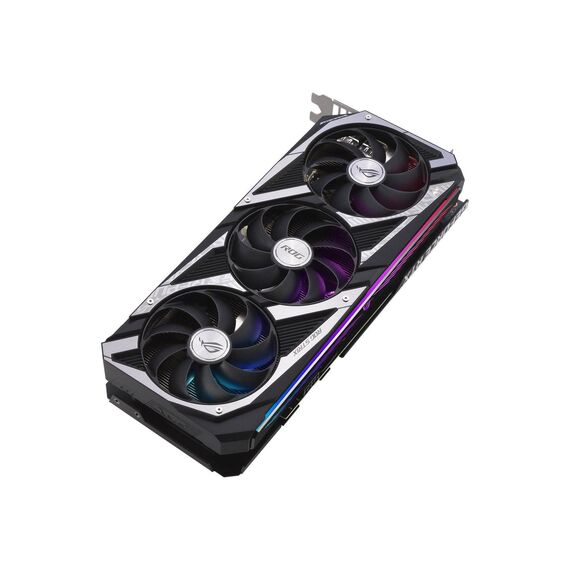

ASUS ROG-STRIX-RTX3060-O12G-V2-GAMING / OC Edition / graphics card / GF RTX 3060 / 12 GB GDDR6 / PCIe 4.0 / 2 x HDMI, 3 x DisplayPort | 90YV0GC2-M0NA10

Product Features

• Axial-tech fan design
  Three fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
• Advanced fans
  The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50° and power consumption is low.
• 2.7-slot design
  The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.7-slot footprint.
• Fresh shroud
  In addition to under-the-hood design changes, the ROG Strix features a face with metal accents that mirror the design aesthetic of ROG and ROG Strix motherboards.
• It's cooler out back

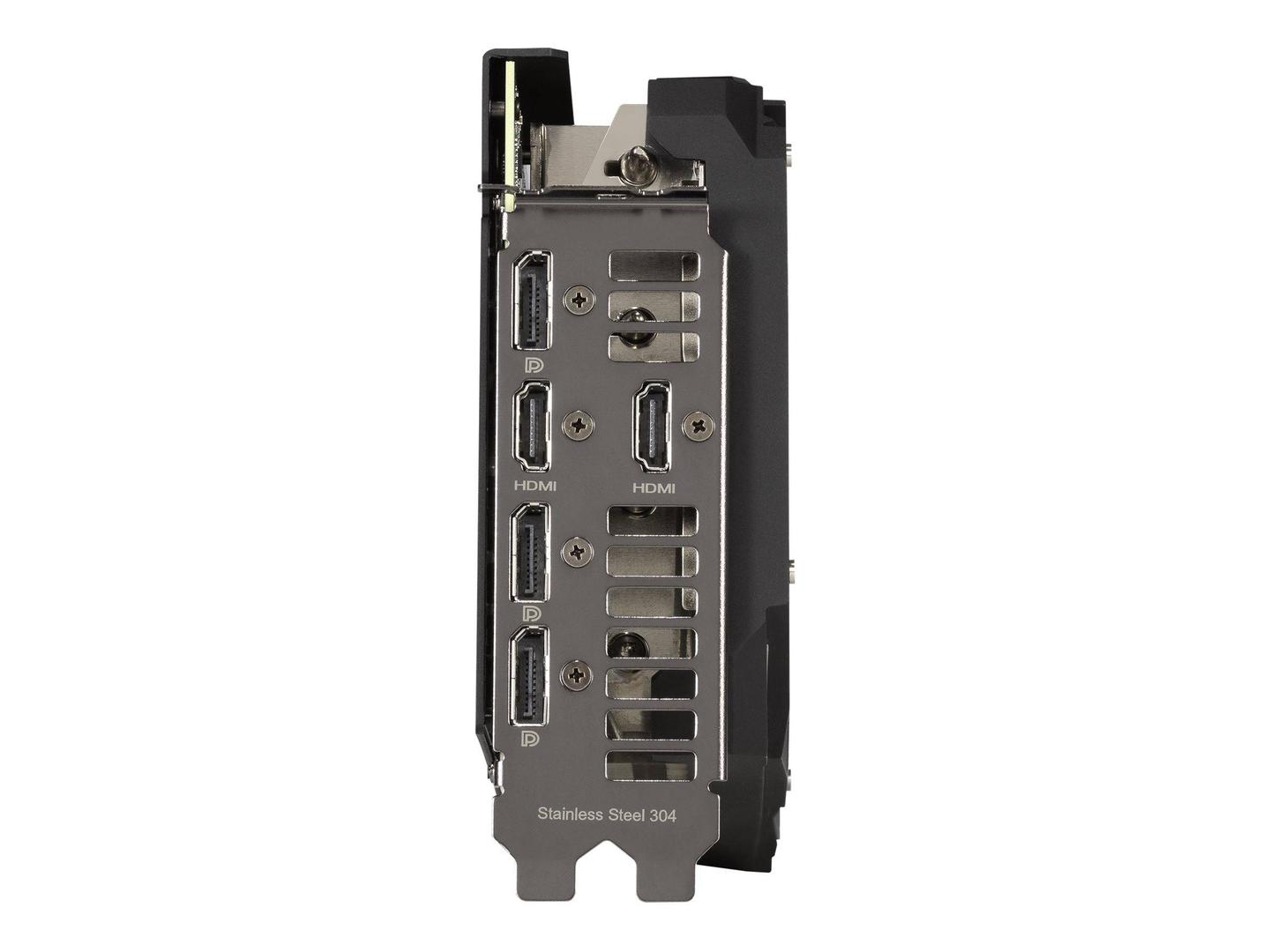

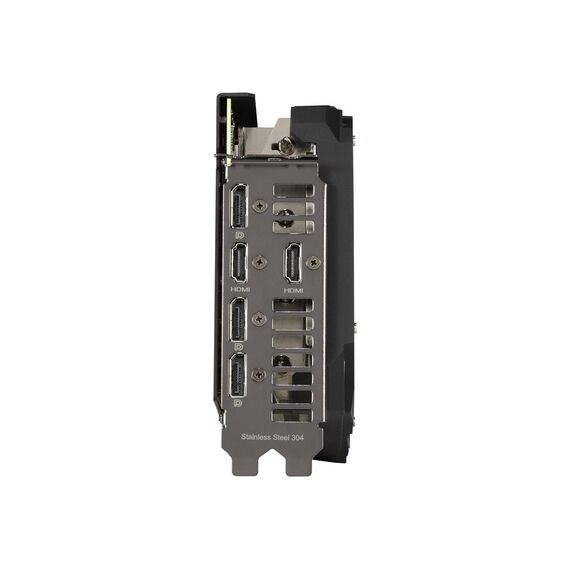

  Flipping the card around reveals more design improvements. For enhanced heat dissipation, a wide backplate vent and shortened PCB allow hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual BIOS switch allows quick selection between "performance" and "quiet" mode for basic customization of the card's default behavior without software.
• Functional front
  To fulfill the power demands of the GeForce RTX 3060, an 8-pin power connector is present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue.

Special Features

• Fast, more efficient GPUs
• Better throughput and improved power efficiency
• Concurrent RT and shading for an advanced level of ray tracing performance
• Cores deliver a massive boost in game performance and great AI capabilities
• Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
• 2.7-slot design expands cooling surface area to make the most of the three powerful axial-tech fans
• Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages

Product Specification
