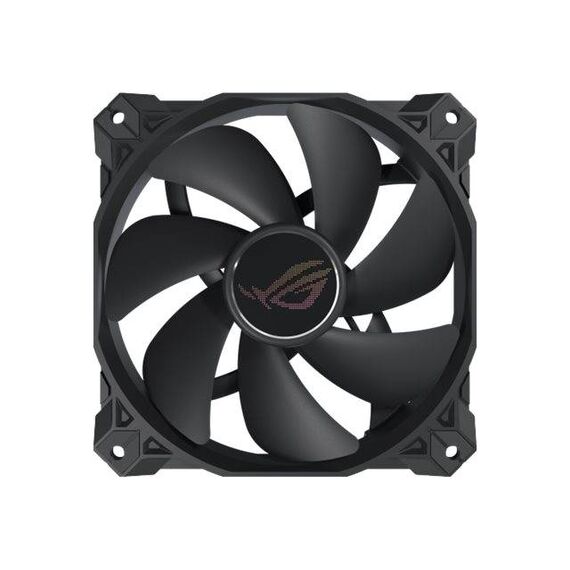

ASUS ROG STRIX XF 120 / Case fan / 120 mm / black | 90DA0010-B09000

(23.99 inc. VAT)
Availability: 43 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Payment options
Product Code04:358618 EAN Code4718017984515 ManufacturerAsus

Product Features

  • Magnetic-levitation technology
    The fan bearing in ROG Strix XF 120 features 360° MagLev technology to prevent slanting and friction. This technology delivers exceptional cooling performance, low noise and a long lifespan of up to 400,000 hours.
  • Fan-blade grooves
    Precision-engineered grooves on the fan blades direct and focus air to flow smoothly along the blades for reduced flow separation. This increases fan performance and reduces vortex noise, improving overall acoustics.
  • Direct-flow frame
    The angle and curvature of the frame struts are carefully designed to direct and channel airflow in a unidirectional, highly focused stream. This design minimizes turbulence and the focused airflow enhances static pressure.
  • Dynamic balance pre-calibration
    The balance of each fan is manually tuned to minimize inefficiency and ensure optimal performance.
  • Precise, flexible PWM speed control
    An extensive operating range of 250 - 1800 rpm offers the precision and flexibility to maximize cooling performance across various workloads, and the fan automatically turns off when set to 0% PWM duty cycle for an ultralow noise profile when handling lighter workloads.

Special Features

  • Optimal blend of airflow and static pressure: enables use as a PC case, radiator or CPU cooler fan
  • MagLev bearing: stabilizes rotor for reduced friction and noise, and offers 400,000-hour life span
  • Minimized acoustic profile: whisper-quiet, 22.5 dB(A) cooling performance and tuned to deliver a smooth and stable sound frequency
  • Aerodynamic fan blade and frame design: minimizes turbulence and maximizes airflow
  • Extensive operating range: 250 - 1800 rpm range for more flexibility and to create a quiet fan curve (fan spins down at 0% PWM utilization)
  • Anti-vibration pads and mounts: reduces vibration and prevents rattling

Product Specification

Product Type Case fan
Weight 145 g
Colour Black
Heatsink & Fan Heatsink & Fan
Fan Diameter 120 mm
Fan Height 25 mm
Fan Bearing Magnetic bearing
Rotation Speed 1800 rpm
Air Flow 62.5 cfm
Air Pressure 3.07 mm
Noise Level 22.5 dBA
Power Connector 4-pin fan connector
Rated Voltage 12 V
Start Voltage 10.2 V
Rated Current 0.09 A
Power Consumption 1.08 W
Features Pulse-width modulation (PWM) support, anti-vibration rubber pads, aerodynamical blade design, 7 fan blade design
Miscellaneous Miscellaneous
MTBF 400,000 hour(s)
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 5 years
