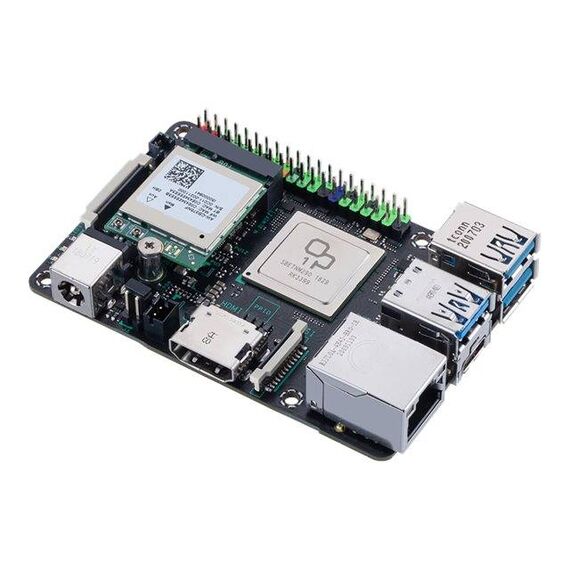

ASUS Tinker Board 2 / Single-board computer / Rockchip RK3399 / RAM 2 GB / 802.11a/b/g/n/ac, Bluetooth 5.0 | 90ME01N0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Single-board computer |
| Category | Artificial intelligence |
| Features | Realtek RTL8211F-CG |
| Parameters | Short circuit protection, OpenGL ES 3.0, RTC battery header, Arm big.LITTLE technology, OpenGL ES 3.1, OpenVG 1.1, OpenCL, dual display support, 4K UHD resolution, DisplayPort Alt Mode, overcurrent protection, ESD protection (8kV of contact discharge), overvoltage protection, firmware over-the-air (FOTA) support |
| Supported Software | Debian Linux, Android, Android Neural Networks API 1.2 |
| Processor | Processor |
| Type | Rockchip |
| Processor Number | RK3399 |
| Number of Cores | 6-core |
| RAM | RAM |
| Technology | LPDDR4 SDRAM |
| Installed Size | 2 GB |
| Flash Memory | Flash Memory |
| Supported Flash Memory Cards | microSD |
| Graphics System | Graphics System |
| Graphics Accelerator | Mali T860 MP4 |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Wireless Protocol | 802.11a/b/g/n/ac, Bluetooth 5.0 |
| Wired Protocol | Gigabit Ethernet |
| Interface Provided | Interface Provided |
| Interface Provided | LAN (Gigabit Ethernet) - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A ¦ USB 3.2 Gen 1 OTG - Type C ¦ HDMI - Type A ¦ SPDIF out ¦ MIPI CSI-2 (2 lane) - 15 pins ¦ GPIO - 28 pins ¦ 2 x SPI ¦ 2 x I2C ¦ 2 x UART ¦ I2C ¦ Debug input |
| Power Device | Power Device |
| Power Source | AC power adapter |
| Miscellaneous | Miscellaneous |
| Width | 8.5 cm |
| Depth | 5.6 cm |
Features - Asus - 90ME01N0-M0EAY0
More Details
Product Code
04:405357
EAN Code
4718017922609
Manufacturer
Asus
