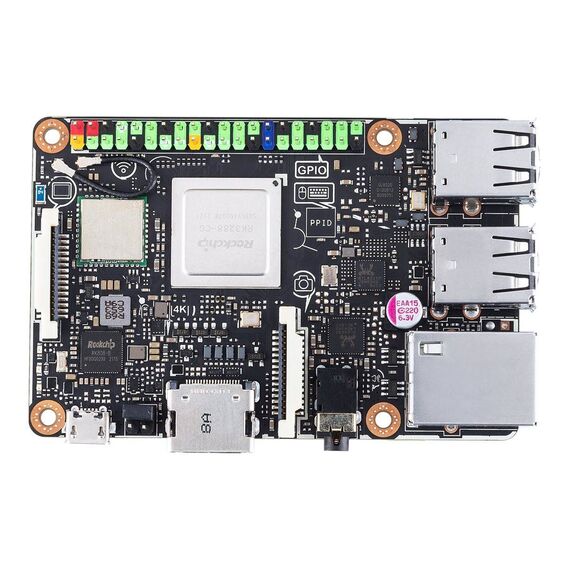

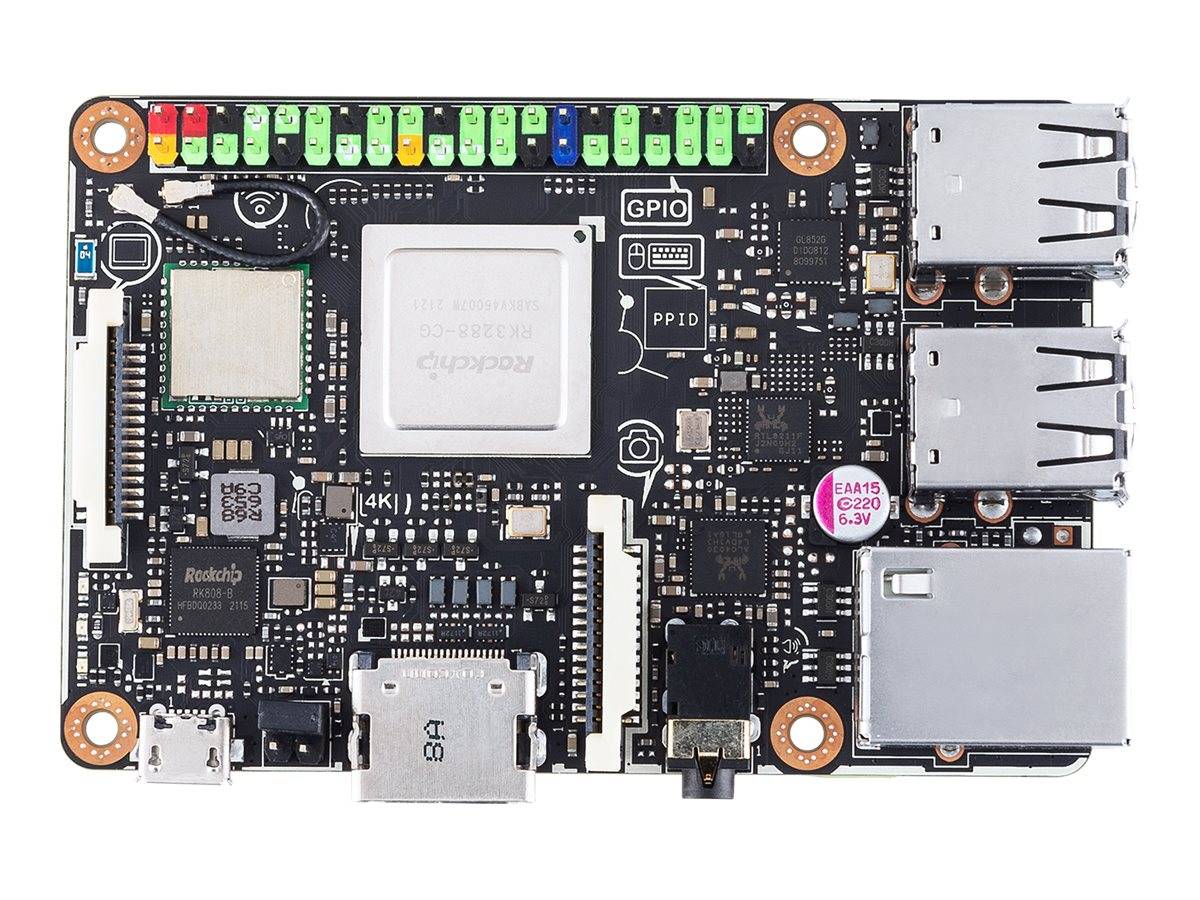

ASUS Tinker Board R2.0 / Single-board computer / Rockchip RK3288-CG.W / RAM 2 GB / 802.11b/g/n, Bluetooth 4.2 EDR | 90ME03D1-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Single-board computer |
| Features | ALC4030U Realtek audio codec |
| Parameters | 4K UHD resolution, eMMC recovery header |
| Supported Software | Debian Linux, Android |
| Processor | Processor |
| Type | Rockchip |
| Processor Number | RK3288-CG.W |
| Number of Cores | Quad-Core |
| RAM | RAM |
| Technology | LPDDR3 SDRAM |
| Installed Size | 2 GB |
| Flash Memory | Flash Memory |
| Supported Flash Memory Cards | microSDHC, microSD |
| Graphics System | Graphics System |
| Graphics Accelerator | Mali T764 |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.2 EDR |
| Wireless Protocol | 802.11b/g/n, Bluetooth 4.2 EDR |
| Wired Protocol | Gigabit Ethernet |
| Interface Provided | Interface Provided |
| Interface Provided | LAN (Gigabit Ethernet) - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ GPIO - 40 pin IDC ¦ MIPI DSI ¦ SPDIF ¦ CSI ¦ HDMI - Type A ¦ Audio line-out/microphone - mini-jack ¦ USB - micro-USB |
| Power Device | Power Device |
| Power Source | GPIO, USB port |
| Miscellaneous | Miscellaneous |
| Width | 8.55 cm |
| Depth | 5.4 cm |
| Weight | 55 g |
Features - Asus - 90ME03D1-M0EAY0
More Details
Product Code
04:405355
EAN Code
4711081466031
Manufacturer
Asus
