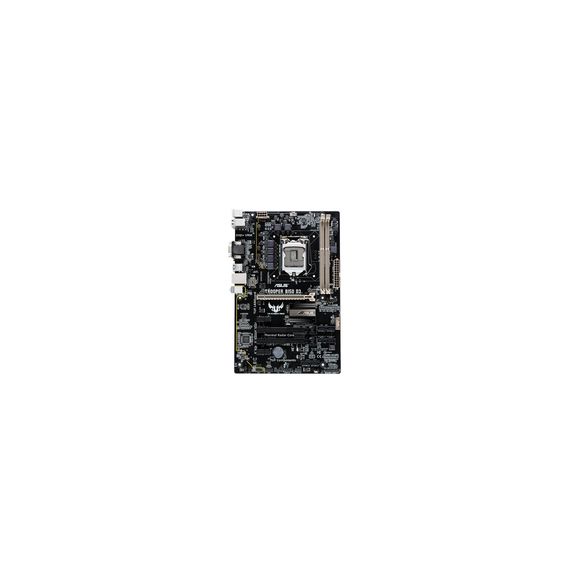

Asus TROOPER B150 D3 S1151 B150 ATX (90MB0N40-M0EAY0)

Asus 90MB0N40-M0EAY0 Asus TROOPER B150 D3 S1151 B150 ATX (90MB0N40-M0EAY0)

Best-value TUF B150 ATX board with military-grade components and cooling tech to guarantee 24/7 durability

- TUF Certified 24/7 durability - Promised Reliability with Strict Testing
- TUF LANGuard - Exclusive military-grade LAN protection
- TUF ESD Guards 2 - 2X Stronger ESD protection for extended component lifespan
- TUF Audio Design– LED-lit shielding and noise reduction
- TUF Thermal Radar Core - Complete System Cooling, Customized Fan Tuning
- TUF Components [Caps, Chokes & MOSFETs; Certified by Military-standard] – Certify for Tough Duty

Trooper Series Design Story

All TUF. Durability Guaranteed.

TUF TROOPER series motherboards are pumped with pure TUF spirit, able to survive the most rigorous conditions under even heavy loading. To create TROOPER, our engineers focused on the TUF founding principles of durability that overcomes all. The result are motherboards designed tough and built to last, staying true to our mission to take reliability to the next level for the longest lifespan. You demand guaranteed quality that endures 24/7 durability – so demand TUF TROOPER series.

24/7 DURABILITY

You demand 24/7 durability, so we've delivered! TUF motherboards undergo the industry's most-punishing tests to ensure they're ready for permanent duty in all scenarios. In our development labs we heat them, chill them, bend them, shock them and drop them — so you know that your TUF motherboard is certified for 24/7 durability!

5 Years Warranty

Guaranteed reliability

Each and every TUF motherboard is built with components certified for military use and undergoes serious server-level burn-in tests. TUF is forged solid for your confidence, which is why every board is covered by a 5-year warranty.

Shielded Power Signal

Effective shielding to minimize power-signal interference

A shielded trace path between our renowned Digi voltage-regulator module VRM and the I/O ports greatly reduces power-signal interference — and that improves the compatibility and reliability of connected devices.

TUF LANGuard

Exclusive military-grade LAN protection

Trooper B150 D3's TUF LANGuard socket has advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput tested to military grade, TUF LANGuard is certified for tough duty to protect your motherboard from lightening strikes and static electricity.

TUF ESD Guards 2

2X Stronger ESD protection for extended component lifespan

Electrostatic discharge ESD can happen suddenly, and its damaging effects are easily underestimated. TUF ESD Guards 2 technology raises the bar that are 2X higher than industry standards and exclusive pin-level on specific rear IO connectors testing is 30% higher than previous TUF standard, ensuring electrostatic discharges are properly grounded from all onboard connectivity — and that means greater component longevity.

TUF Components

Certified for tough duty

TUF Caps :

110% high temp, tolerance and 1.5X longer lifespan.

TUF Chokes :

military-grade certified TUF chokes for unbeatable durability, and maximize the lifespan of your system.

TUF Audio Design

TUF Audio Design makes short work of optimizing audio settings for the way you want to listen, chatting, watching movies or relaxing to your favorite music. Onboard physical shielding, professional engineered design and premium components result in sound output that has exceptional clarity and fidelity.

Ultimate cooling

Thermal Radar CORE

Complete system cooling. Customized fan tuning

ASUS TUF Thermal Radar Core enables complete system cooling management – quickly, easily and safely. Customizable controls allow you to adjust fan speeds, allowing the temperature to be tuned with just a single click. And talking of single-click simplicity, live update ensures that your Thermal Radar Core is never out of date – just click the button to check for updates.

Thermal Assessment allows you to judge when the CPU zone needs more cooling, making system fan control more precise — because it is based on real temperature information. Sensors record the CPU's temperature over time, so you can customize fan settings based on your computing habits.

With customizable settings for each fan, you can extend your motherboard's lifespan. You can even monitor, manage and individually name and control your system's fans to create your perfect balance between quietness, cooling and performance.

You can also choose to optimize the whole system's fan setup with a single click. Based on the characteristics of each fan connected to your motherboard, all fan profiles can be quickly optimized.

Easy PC DIY

Safe motherboard mounting

Component-free areas to minimize damage risk

Fitting your ASUS motherboard is now safer than ever. The comprehensive component-free ‘safe zones' around every case-mounting hole minimizes the risk of damage and short circuits caused by contact — so you'll assemble your PC with total confidence!

Q-Slot

Effortless PCI Express component removal

The large winged clip is easy to reach and easy to operate. Just press the Q-Slot clip lightly, and graphics card just pop out. Installing or removing even the biggest graphics cards is no sweat!

-DIMM

Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Intel CPU and chipset features

Intel® B150 Express Chipset

The Intel® B150 Express is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to six USB 3.0 ports, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® B150 Express chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel 4-DIMM DDR3L memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Intel® SBA support

Intel® SBA Small Business Advantage is a combination of hardware and software that provides unique security and productivity capabilities designed for small businesses. Intel® SBA requires MEI drivers AMT host software kit be installed.

Platform requirements:
Windows® 7 32/64-bit / 8.1 64-bit / 10 64-bit
PCH with 6th-generation Intel® Core™ processor 100 Series platforms with 6.5MB Intel® Management Engine ME 11.0 firmware installed

CPU and chipset requirements:
Intel® Core™ i3/i5/i7 with one of these chipsets: B150, H170, Q170
The Intel® Management Engine software kit must be installed the Local Manageability Service and the Intel ® Management Engine Interface must be installed and running.

Feature list

Supported memory types:	DDR3-SDRAM
Memory slots type:	DIMM
Memory channels:	Dual
Non-ECC:	Y
Supported memory clock speeds:	1333,1600 MHz
Maximum internal memory:	32 GB
Unbuffered memory:	Y
Processor family:	Intel
Compatible processor series:	Core i5,Core i7,Celeron,Pentium,Core i3
Processor socket:	LGA1151
USB 2.0 connectors:	1
USB 3.0 connectors:	1
Supported hard disk drive interfaces:	Serial ATA III
Number of SATA connectors:	6
S/PDIF out connector:	Y
CPU fan connector:	Y
Number of COM connectors:	1
ATX Power connector 24-pin:	Y
Number of EATX power connectors:	1
Chassis intrusion connector:	Y
Number of chassis fan connectors:	2
Front panel audio connector:	Y
TPM connector:	Y
Number of SATA III connectors:	6
USB 2.0 ports quantity:	4
USB 3.0 ports quantity:	4
Ethernet LAN RJ-45 ports:	1
PS/2 ports quantity:	2
Headphone outputs:	1
Microphone in:	Y
VGA D-Sub ports quantity:	1
DVI-D ports quantity:	1
Ethernet LAN:	Y
Ethernet interface type:	Gigabit
Component for:	PC
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B150
Motherboard form factor:	ATX
Audio output channels:	7.1
Intel Extreme Memory Profile XMP:	Y
PCI Express x1 Gen 3.x slots:	2
PCI Express x16 Gen 3.x slots:	3
BIOS type:	UEFI AMI
BIOS memory size:	128 MB
ACPI version:	5.0
Width:	198 mm
Height:	305 mm
