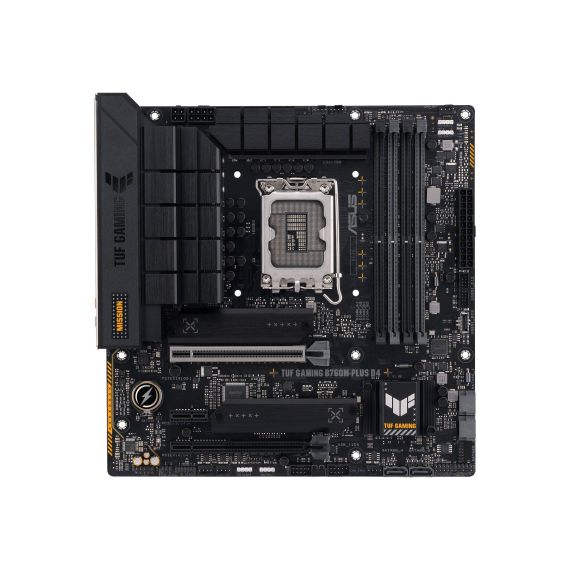

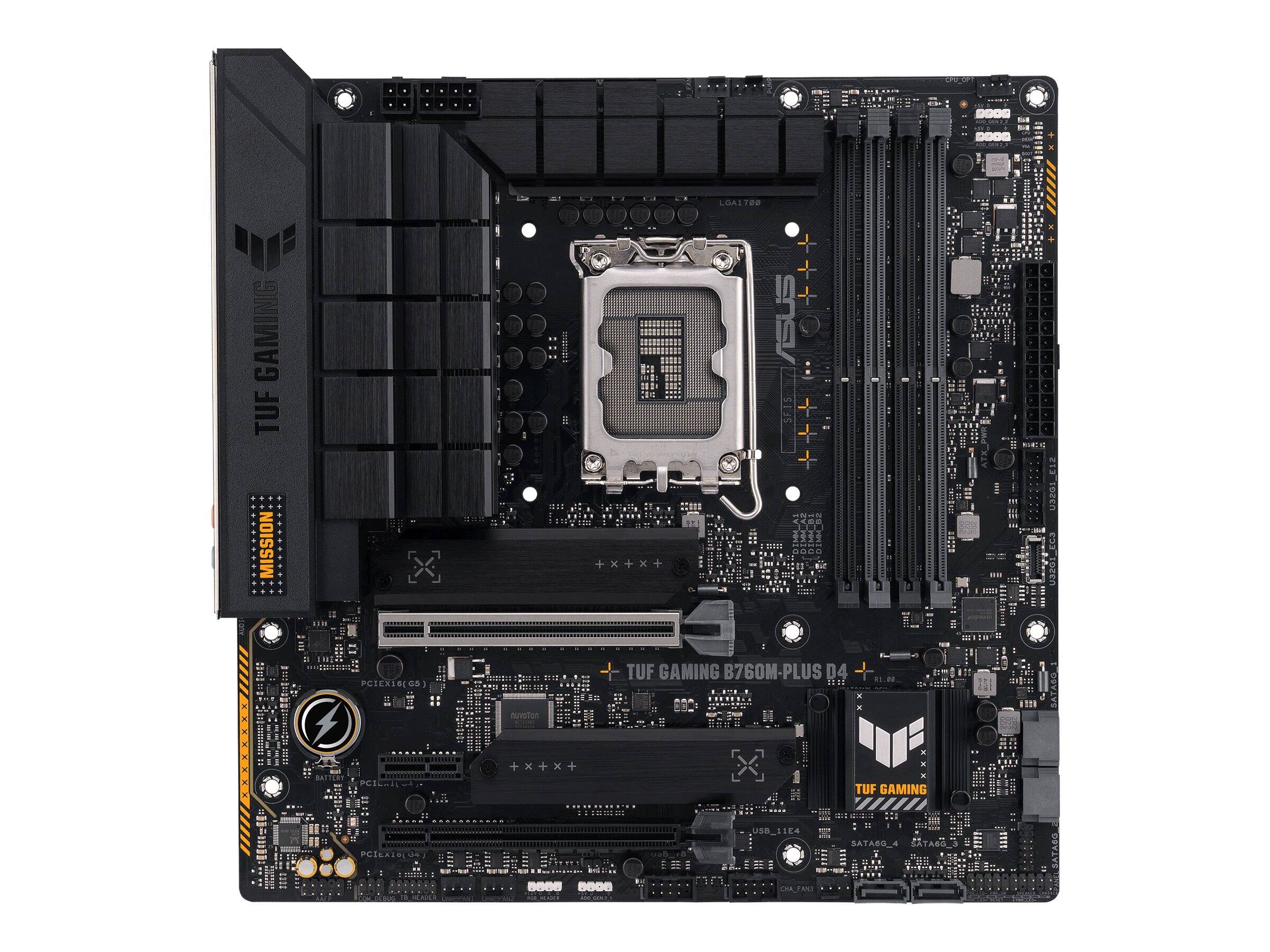

ASUS TUF GAMING B760M-PLUS D4 / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DI0-M0EAY0
ASUS TUF GAMING B760M-PLUS D4 / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DI0-M0EAY0
€231.66 inc. VAT
90MB1DI0-M0EAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Intelligent control
TUF GAMING B760M motherboards feature flexible tools for fine-tuning every aspect of the system, allowing you to tweak performance to best suit the way you play. - Comprehensive power efficiency
The power-saving function contains several settings that make it easy to optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power-saving mode. - New UEFI BIOS
The popular ROG UEFI (BIOS) provides everything you need to configure, modify, and optimize your build. It offers intelligently simplified options for newbies but also advanced features for true experts. - Rock-solid performance
With enhanced power and comprehensive cooling options to power the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, TUF GAMING B760M-PLUS D4 is the perfect foundation for your next Intel battle rig. - DrMOS Power Stages
12+1 power stages that combine high-side and low-side MOSFETs and drivers in one package to provide power, efficiency, and stable performance for all compatible processors. - DRAM Overclocking Performance
Trace routing improvements provide the latest Intel processors with advanced access to memory bandwidth. ASUS OptiMem II technology accurately maps signal paths between PCB layers reducing the distance to be traced, the addition of shielding zones significantly reduces the crosstalk problem. - Larger VRM heat sink
The large surface area of this heatsink covers the VRMs and coils to improve heat dissipation. - Optimized M.2 heatsink design
All M.2 slots have dedicated heatsinks, which keep M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability. - Immersive Gaming
TUF GAMING B760M motherboards offer a package of high-performance gaming features, with ultrafast networking for smoother online gaming, pristine audio with positional cues for FPS gaming, and integrated RGB lighting that synchronizes with connected equipment to personalize the gaming atmosphere.
Special Features
- Intelligent control
- Complete power efficiency
- New UEFI BIOS
- Rock-solid performance
- DrMOS power stages
- DRAM overclocking performance
- Enhanced VRM heat sink
- Optimized M.2 heatsink design
- Immersive gaming
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 4 x USB 3.2 Gen 2 2 x USB 2.0 1 x USB 3.2 Gen 1 1 x SPDIF out 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header 1 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x Thunderbolt 4 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF LANGuard, overvoltage protection, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS SafeSlot Core+, M.2 Q-Latch, SafeDIMM, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1DI0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
07:129804
EAN Code
4711387005316
Manufacturer
Asus
