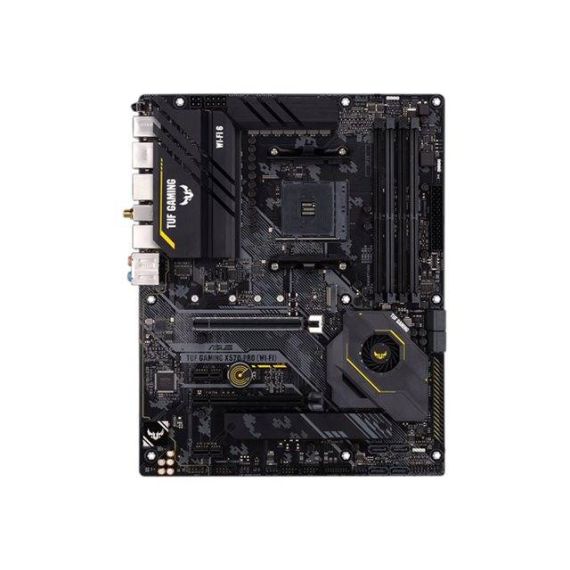

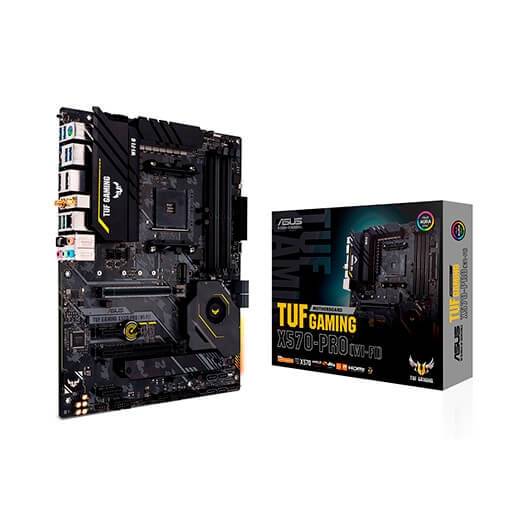

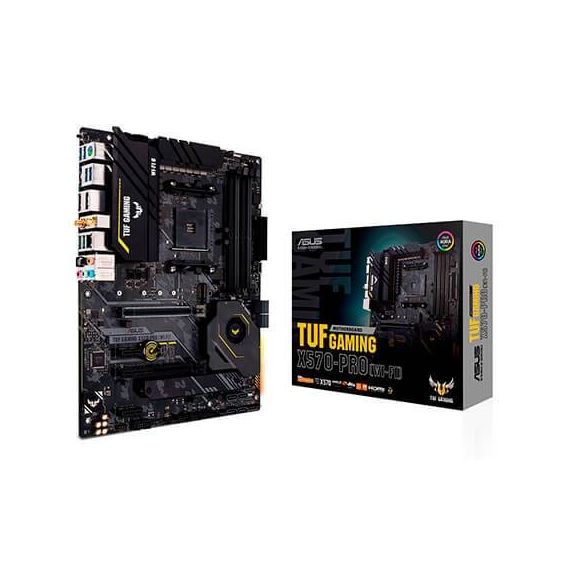

ASUS TUF GAMING X570-PRO (WI-FI) / Motherboard / ATX / Socket AM4 / AMD X570 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB15H0-M0EAY0

Description

TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

ASUS TUF GAMING X570-PRO (WI-FI) / Motherboard | 90MB15H0-M0EAY0

Special Features

• Enhanced power solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
• Next-gen connectivity: dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
• Exclusive onboard 2.5G Intel LAN, Intel Wi-Fi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
• Realtek S1200A codec: pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
• Aura Sync RGB: synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips

Product features

• Rock-solid performance
  With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Pro (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.
• Dr. MOS
  The TUF Gaming X570-Pro (Wi-Fi)'s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
• 6-layer PCB design
  Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.
• SafeSlot
  SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
• ESD Guards
  ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.
• TUF LANGuard
  TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
• Intel Wi-Fi 6 AX200
  The Intel Wi-Fi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
• Outshine the competition
  A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
