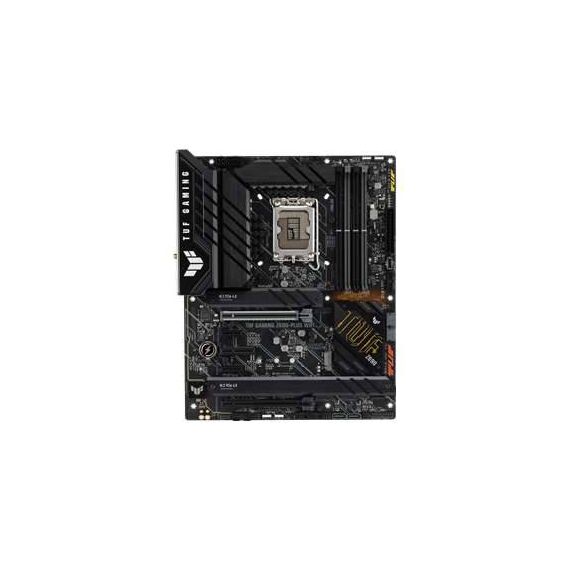

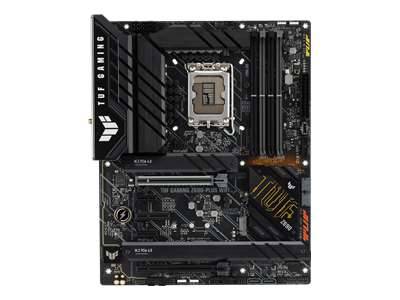

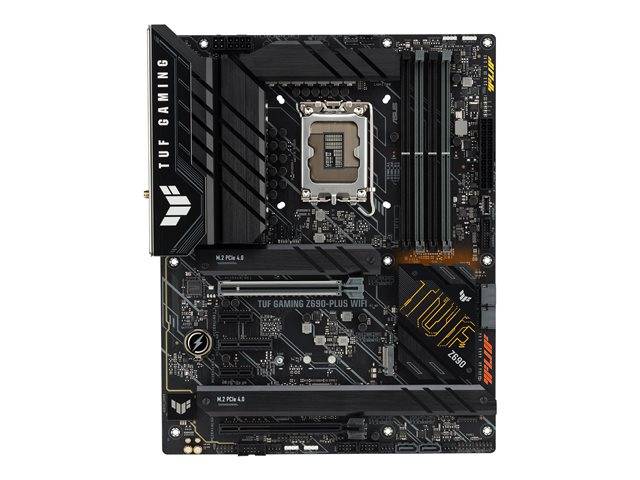

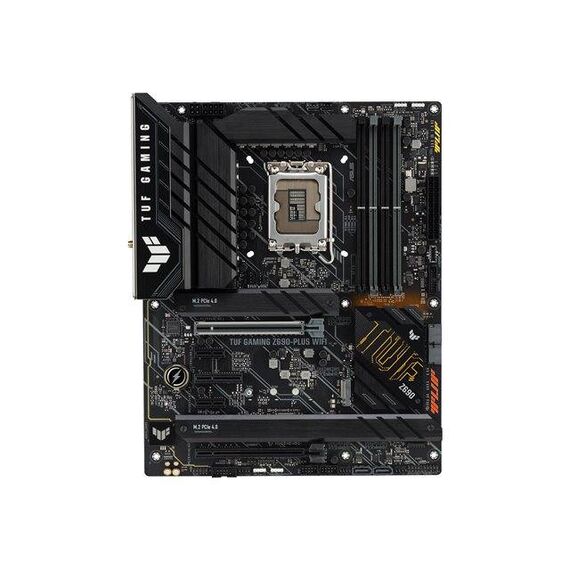

ASUS TUF GAMING Z690-PLUS WIFI / Motherboard / ATX / LGA1700 Socket / Z690 Chipset / USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1AW0-M0EAY0
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z690 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x4 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Rapid Storage Technology |
| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C Gen1 ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, TUF LANGuard, ASUS Overvoltage Protection, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, M.2 Q-Latch, SafeDIMM |
| Included Accessories | 1 x M.2 screw, TUF stickers, ASUS Wi-Fi moving aerial, 2 x M.2 rubber package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASUS AI Suite III, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asus - 90MB1AW0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
03:190581
EAN Code
4711081646235
Manufacturer
Asus
