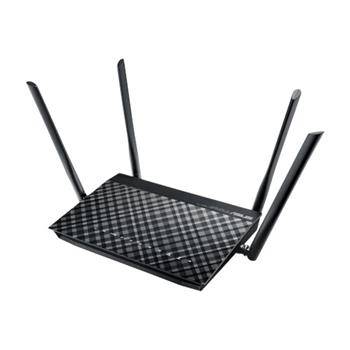

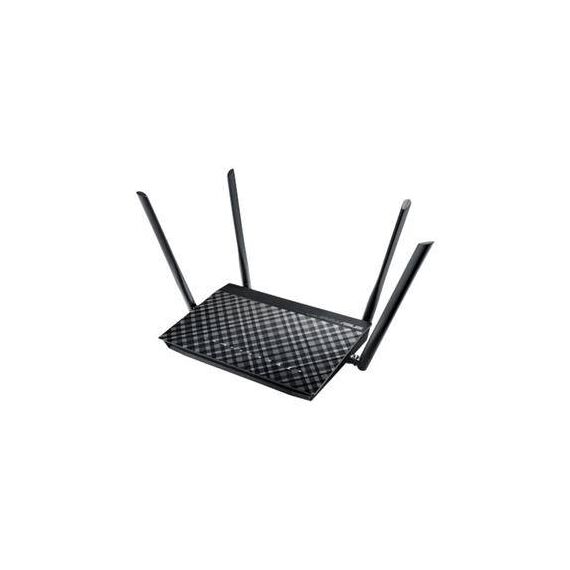

ASUS DSL-AC52U / Wireless router / DSL modem / 4-port switch / GigE / 802.11a/b/g/n/ac / Dual Band | 90IG02B0-BM3100
ASUS DSL-AC52U / Wireless router / DSL modem / 4-port switch / GigE / 802.11a/b/g/n/ac / Dual Band | 90IG02B0-BM3100
Description The ASUS DSL-AC52U is a ADSL/VDSL 802.11ac Wi-Fi modem router, with combined dual-band data rates of up to 733 Mbps. On the 5 GHz band, 802.11ac gives 433Mbps wireless data rates, while 2.4 GHz 802.11n performance supports 300 Mbps. Compatible with ADSL2/2+, ADSL, VDSL2, fiber and cable services, the top specification completes future-proofing.ASUS AiRadar enhances the Wi-Fi stability and improves coverage up to 150%. Most importantly, the universal beamforming not only works on 802.11ac clients, but also 802.11a/b/g/n clients. Equipped with powerful hardware NAT acceleration and built-in Gigabit Ethernet, the DSL-AC52U gives you full Gigabit internet performance, with a WAN-to-LAN throughput performance of over 900 Mbps.USB 2.0 port allows the DSL-AC52U to share printer and scanner over a network, and it can also operate as high-speed NAS (Network Attached Storage) device when external storage is connected.The easy-to-use ASUSWRT graphical user interface unlocks the power of the DSL-AC52U giving robust control to optimize your network for you. 30-second set-up and easy traffic management means even network newbies can enjoy its sophisticated features, while power users will love its Download Master, IPv6 support, multiple wireless SSIDs and secure VPN access Special Features
Product features
|
Product Specification
Device Type | Wireless router - 4-port switch (integrated) |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 733 Mbps |
Capacity | Concurrent sessions: 300000 |
Network / Transport Protocol | PPTP, L2TP, IPSec, FTP |
Encryption Algorithm | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
Features | Firewall protection, NAT support, load balancing, dynamic DNS server, print server, IPv6 support, parental control, firmware upgradable, Asynchronous Transfer Mode (ATM), download client, event log, Quality of Service (QoS), IPSec passthrough, WAN failover, DHCP server, FTP server, Multiple SSID support, ASUS AiDisk, reset button, bandwidth control, IPv4 support, 3G/4G USB Dongle Support, VPN Server, ASUS AiCloud, ASUSWRT, PPTP passthrough, L2TP passthrough |
Compliant Standards | IEEE 802.3, IEEE 802.3u, ANSI T1.413, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, UPnP, IEEE 802.11ac , ETSI, RCM |
RAM | 128 MB DDR3 SDRAM |
Flash Memory | 128 MB |
Status Indicators | Power, WLAN, LAN, USB, ADSL, Internet |
Framing Format | ANSI T1.413 |
Type | DSL modem |
Digital Signaling Protocol | ADSL, ADSL2, ADSL2+, VDSL2 |
Protocols & Specifications | ITU G.992.2 (G.Lite), ITU G.992.1 (G.DMT) Annex A, ITU G.992.1 (G.DMT) Annex B, ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.998.4, ITU G.993.5 |
Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 2.0: 1 x ¦ WAN: 1 x VDSL2 / ADSL2+ - RJ-11 ¦ WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Antenna Qty | 4 |
Power Device | External power adapter |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 18 Watt |
Cables Included | 1 x network cable ¦ 1 x modem cable |
Software Included | Drivers & Utilities |
OS Required | Microsoft Windows 2000, Apple MacOS X 10.1, Apple MacOS X 10.4, Apple MacOS X 10.6, Apple MacOS X 10.5, Apple MacOS X 10.7 Lion, Apple MacOS X 10.8, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 |
Width | 20.7 cm |
Depth | 14.9 cm |
Height | 3.6 cm |
Weight | 360 g |
Service & Support | Limited warranty - 3 years |
