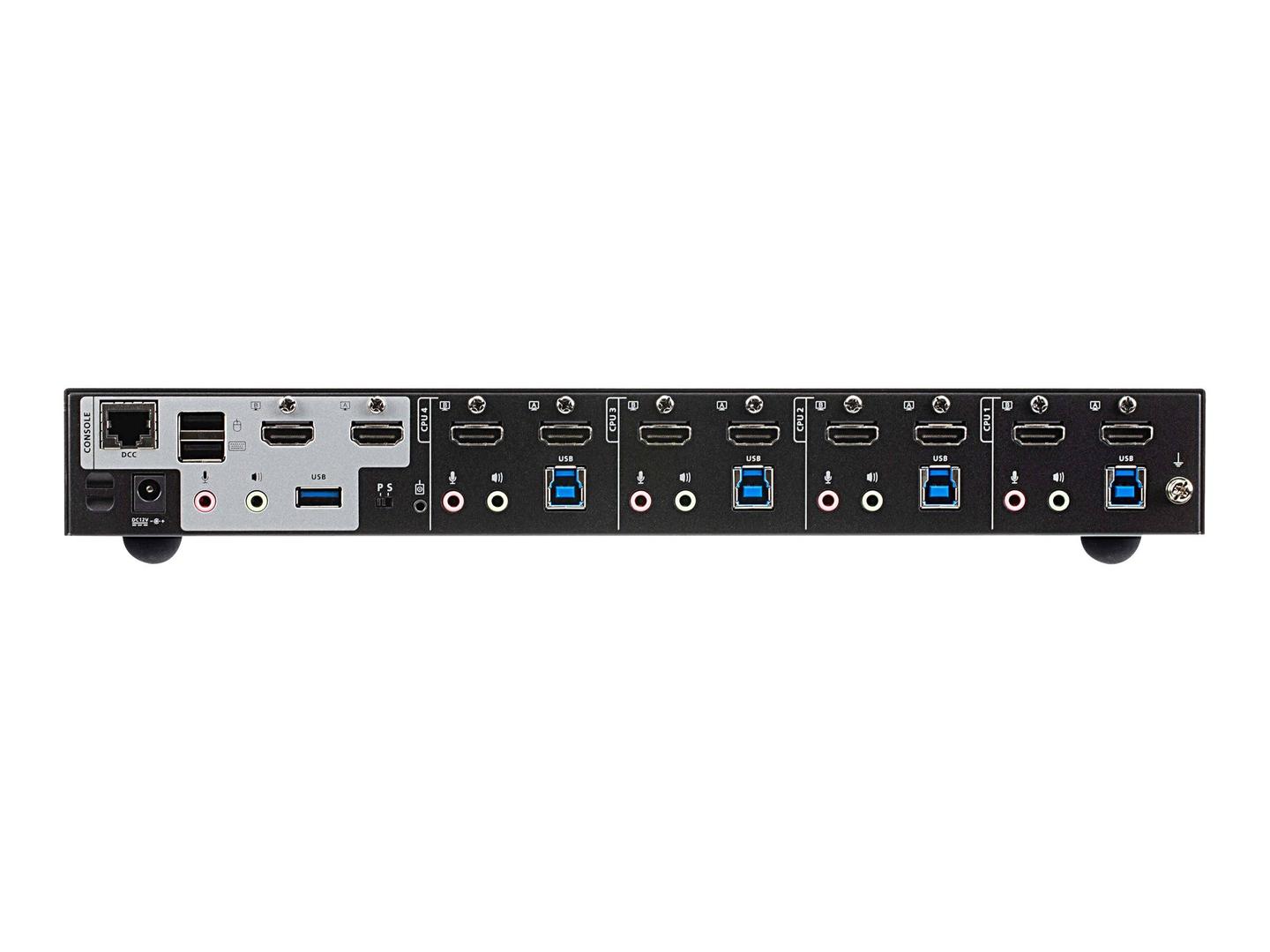

ATEN CS1844 KVMP Switch / KVM / audio / USB switch / 4 x KVM / audio / USB / 1 local user / desktop / for VanCryst VS184B | CS1844
CS1844
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Video DynaSync - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
- Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
- Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB peripheral, and stereo audio focus
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
- HDMI 2.0 compliant; HDCP 2.2 compliant
- Supports HD audio
- Power on detection
- Firmware upgradable
Product Specification
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | Firmware upgradable, metal housing, switch buttons, ATEN Video DynaSync |
| Compliant Standards | HDCP 2.2, USB 3.1 Gen 1 |
| Built-in Devices | USB 3.1 Gen 1 hub |
| Status Indicators | Select, USB, audio, online |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x keyboard (USB) Type A console ¦ 1 x mouse (USB) Type A console ¦ 8 x HDMI Type A ¦ 4 x microphone mini-jack ¦ 4 x audio output mini-jack ¦ 4 x USB 3.1 Gen 1 Type B ¦ 2 x microphone mini-jack console ¦ 2 x HDMI Type A console ¦ 2 x audio output mini-jack console ¦ 2 x USB 3.1 Gen 1 Type A ¦ 1 x remote selector switches mini-jack 2.5 mm ¦ 1 x cascading RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 4.42 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Remote port selector switch |
| Cables Included | 8 x HDMI cable ¦ 4 x speaker cable ¦ 4 x SuperSpeed USB cable ¦ 4 x microphone cable |
| Compliant Standards | RoHS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33.5 cm |
| Depth | 16.05 cm |
| Height | 4.4 cm |
| Weight | 1.57 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
| Compatibility Information | Compatibility Information |
| Designed For | ATEN VanCryst VS184B |
Features - Aten - CS1844
More Details
Product Code
03:205463
EAN Code
4710469340048
Manufacturer
Aten
