ATEN CS1924 KVMP Switch / KVM / audio / USB switch / 2 x KVM / audio / USB / 1 local user / desktop | CS1924
Please sign in so that we can notify you about a reply
Special Features
- 4-port DisplayPort KVMP switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
- One USB console controls 4 computers and 2 USB peripherals

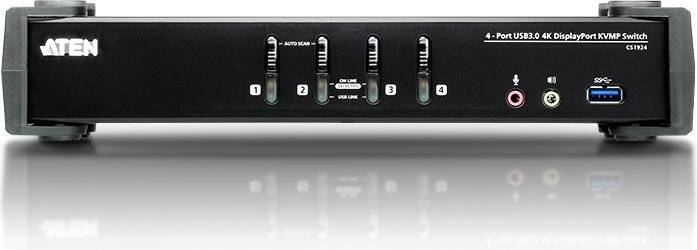

- Computer selection via front panel pushbuttons, hotkeys and mouse
- Independent switching of KVM, USB, and audio focus
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- DisplayPort 1.2 compliant, HDCP compliant
- Full bass response for high-quality 2.1 channel surround sound systems
Product Specification
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | DisplayPort |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Features | 4K resolution support, metal housing |
| Compliant Standards | USB 3.1 |
| Built-in Devices | USB 3.1 hub |
| Expansion / Connectivity | Expansion / Connectivity |

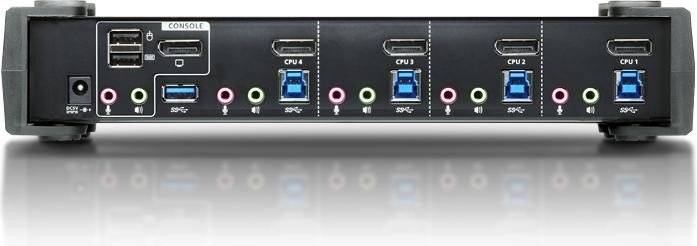

| Interfaces | 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 4 x DisplayPort ¦ 1 x DisplayPort output ¦ 4 x headphones output mini-jack ¦ 4 x microphone output mini-jack ¦ 1 x microphone input mini-jack ¦ 1 x headphones mini-jack ¦ 4 x USB 3.1 Type B ¦ 1 x USB 3.1 Type A ¦ 1 x headphones mini-jack ¦ 1 x microphone mini-jack |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 27 cm |
| Depth | 8.8 cm |
| Height | 5.55 cm |
| Weight | 910 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - CS1924
More Details
Product Code
03:205461
EAN Code
4719264644771
Manufacturer
Aten
