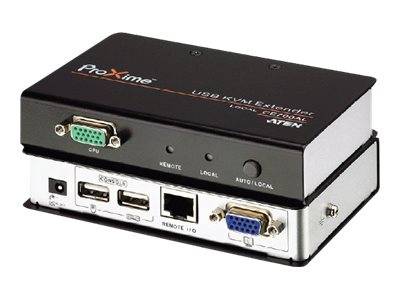

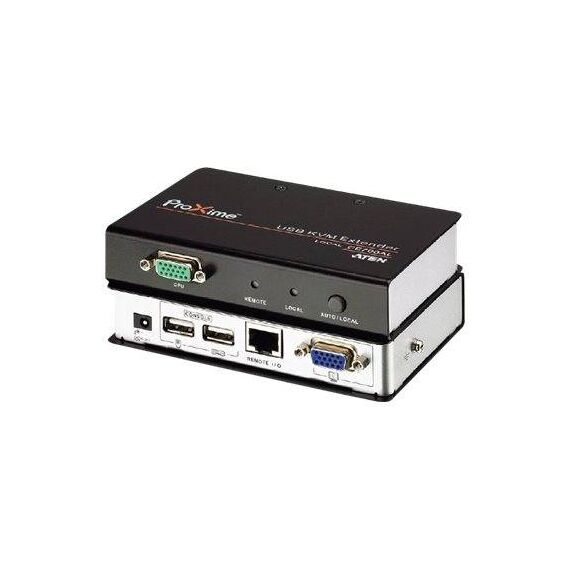

ATEN CE 700A Local and Remote Units / KVM extender / USB / up to 150 m | CE700A
CE700A
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Automatic gain control
Adjusts signal strength to compensate for distance. - Rack mountable, easy to install
No software required - connecting cables to the devices is all it takes. - Dual console operation
Control your system from both the local and remote USB keyboard, monitor, and mouse consoles.
Special Features
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB keyboard and USB mouse ports
- USB over-current detection and prevention
- Pushbutton operating mode selection
Product Specification
| Device Type | KVM extender |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Features | Surge protection |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x USB - Type A ¦ 1 x VGA - HD-15 ¦ 1 x network - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x keyboard / mouse / video cable - 1.8 m |
| Compliant Standards | DDC-2B |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.2 cm |
| Depth | 12.5 cm |
| Height | 2.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% |
Features - Aten - CE700A
Length
>50m
More Details
Product Code
03:504445
EAN Code
4710423776593
Manufacturer
Aten
