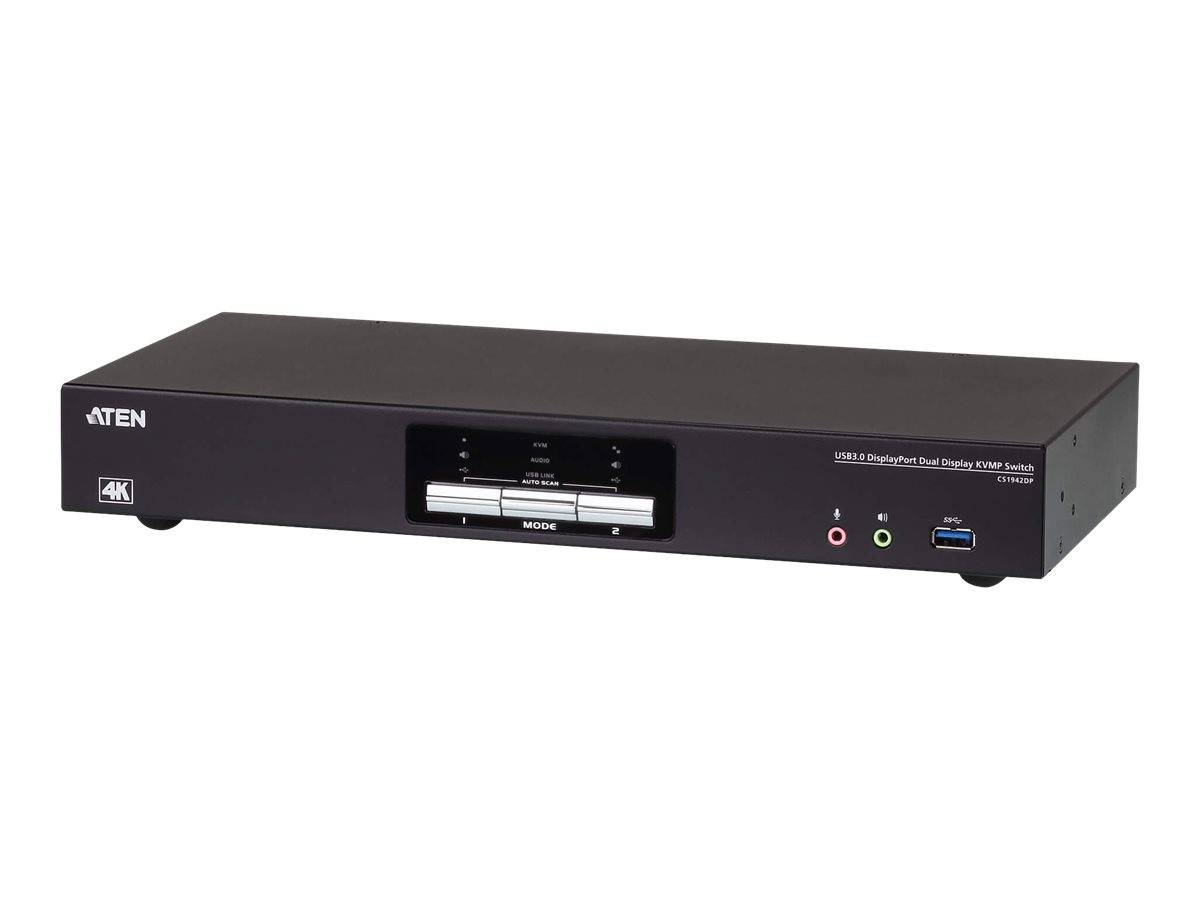

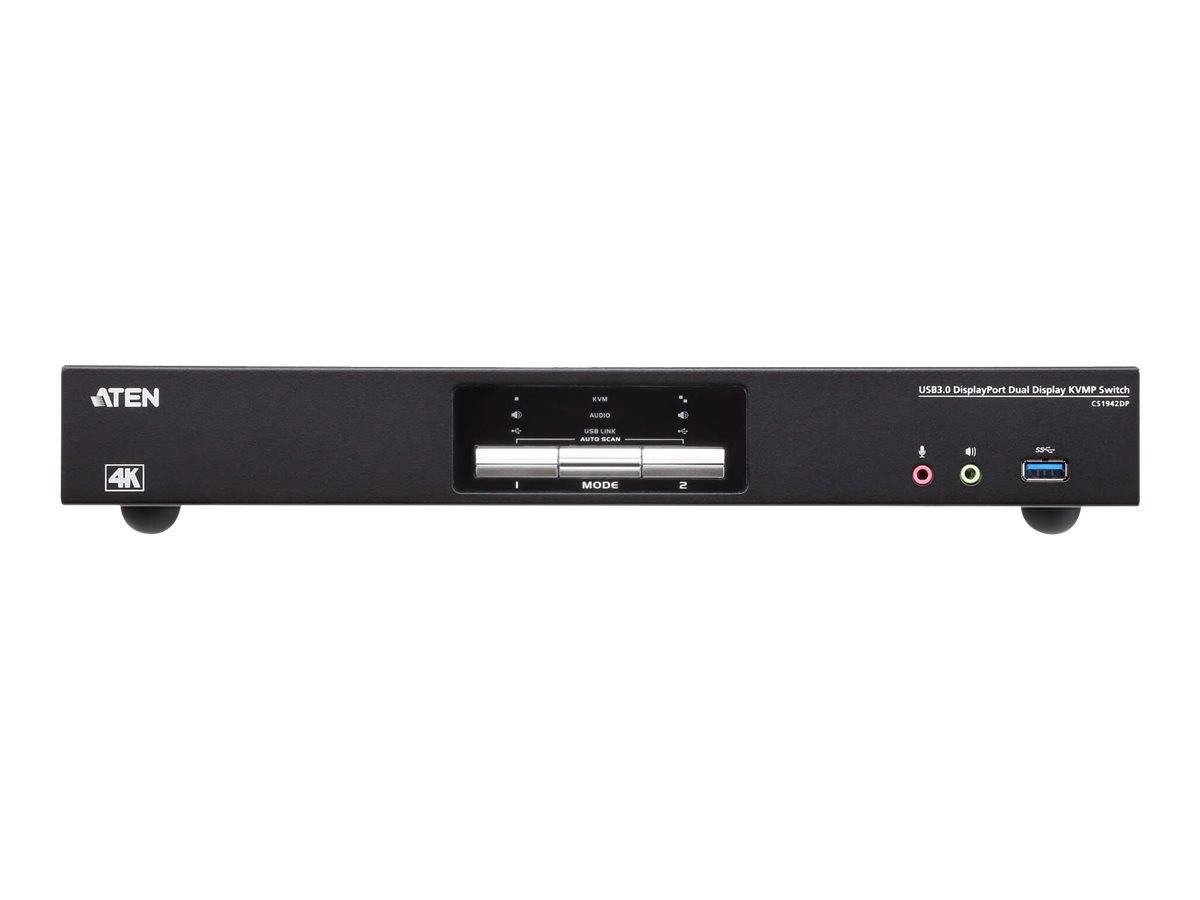

ATEN CS1942DP / KVM / audio / USB switch / 2 x KVM / audio / 2 local users / desktop | CS1942DP
Please sign in so that we can notify you about a reply
Special Features
- One USB keyboard and mouse controls two DisplayPort computers and share two USB peripherals
- Supports Quad Display by connecting two Dual Display KVM switches
- Supports superior video quality - up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
- Computer selection via front panel, hotkeys, mouse, and RS-232 commands
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports DisplayPort Dual-Mode technology (DP++)
- Supports MST (Multi-Stream Transport)
- Supports console keyboard emulation / bypass feature
- Supports console mouse emulation / bypass feature
- Independent switching of KVM, USB, and Audio
- Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
- DisplayPort 1.2 compliant; HDCP compliant
- Supports HD audio
- Power on detection
- Firmware upgradable
Product Specification
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | DisplayPort |
| Ports | 2 x KVM / audio |
| KVM Local Users Qty | 2 local users |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Features | Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, daisy-chaining support, built-in 2-port USB 3.1 hub, DisplayPort Dual-Mode technology (DP++) |
| Compliant Standards | USB 3.1 Gen 1 |
| Built-in Devices | USB 3.1 Gen 1 hub |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x DisplayPort output ¦ 2 x microphone input mini-jack ¦ 2 x headphones output mini-jack ¦ 1 x network stack device RJ-45 ¦ 2 x USB 3.1 Gen 1 Type B ¦ 2 x USB 3.1 Gen 1 Type A ¦ 2 x microphone output mini-jack ¦ 2 x headphones input mini-jack ¦ 4 x DisplayPort input |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 12 V |
| Miscellaneous | Miscellaneous |
| Cables Included | 4 x DisplayPort cable ¦ 2 x USB cable ¦ 4 x audio cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33.5 cm |
| Depth | 15.66 cm |
| Height | 4.4 cm |
| Weight | 1.54 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - CS1942DP
More Details
Product Code
03:135331
EAN Code
4719264645952
Manufacturer
Aten
