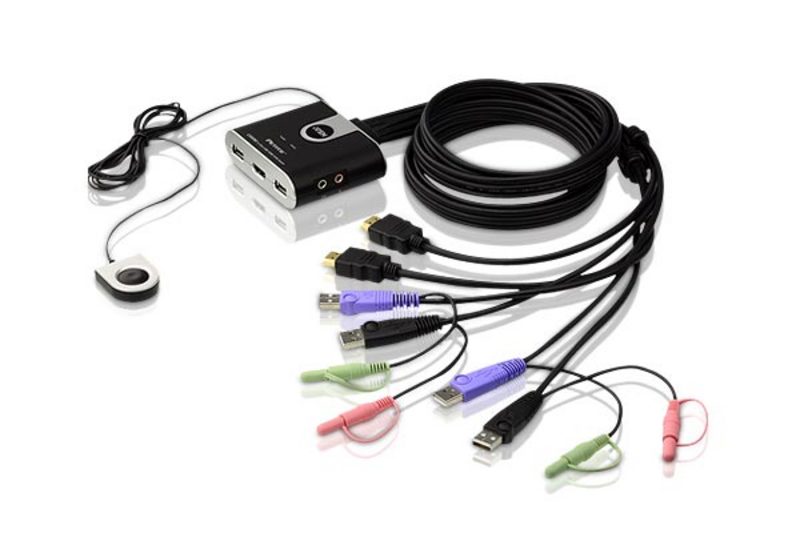

ATEN CS692 KVM / audio switch USB 2 x KVM / audio 1 local user desktop
ATEN CS692 - KVM / audio switch - USB - 2 x KVM / audio | CS692-AT
DescriptionThe CS692 HDMI USB KVM switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display console. The CS692 switch takes a giant step forward by offering full HDMI functionality, USB 2.0 peripheral sharing.Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications. Special Features
Product features
|
Product Specification
Device Type | KVM / audio switch - 2 ports |
Enclosure Type | Desktop |
Subtype | KVM |
Ports | 2 x KVM / audio |
KVM Local Users Qty | 1 local user |
Keyboard / Mouse Interface | USB |
Max Resolution | 1920 x 1200 / 1080p |
Features | Firmware upgradable, USB powered, HDCP compliant |
Status Indicators | Port status |
Interfaces | 3 x HDMI ¦ 6 x USB - Type A ¦ 3 x audio output - mini-jack ¦ 3 x audio / microphone - mini-jack |
Power Consumption Operational | 2.65 Watt |
Cables Included | 2 x keyboard / mouse / video / audio cable - 1.2 m |
Width | 8.2 cm |
Depth | 6.7 cm |
Height | 2.7 cm |
Weight | 410 g |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 0 - 80% (non-condensing) |
Min Storage Temperature | -20 °C |
Max Storage Temperature | 60 °C |
Features - Aten - CS692
