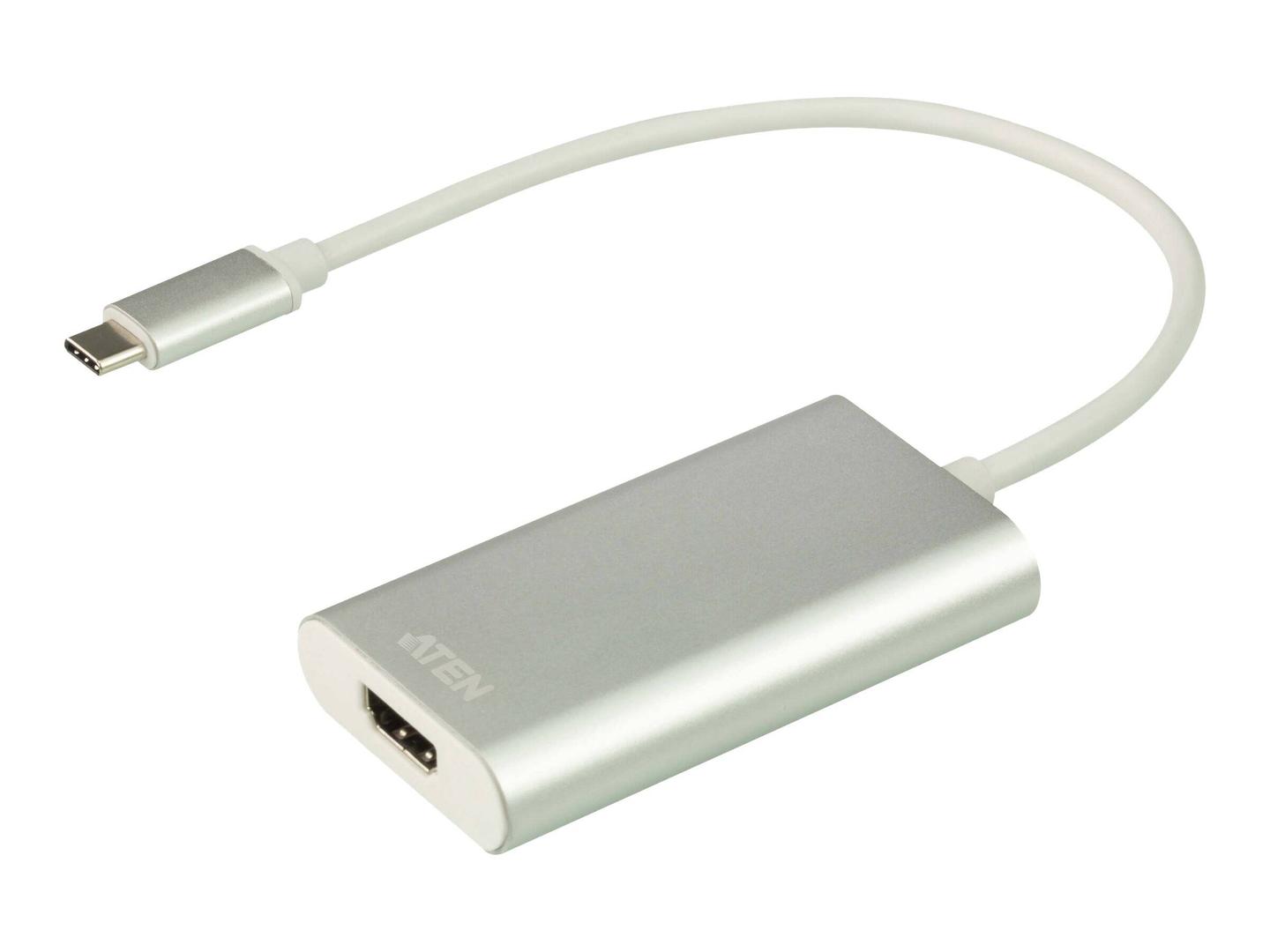

ATEN UC3020 CAMLIVE - Video capture adapter - USB 3.1 Gen 1 | UC3020
Please sign in so that we can notify you about a reply
Special Fetures

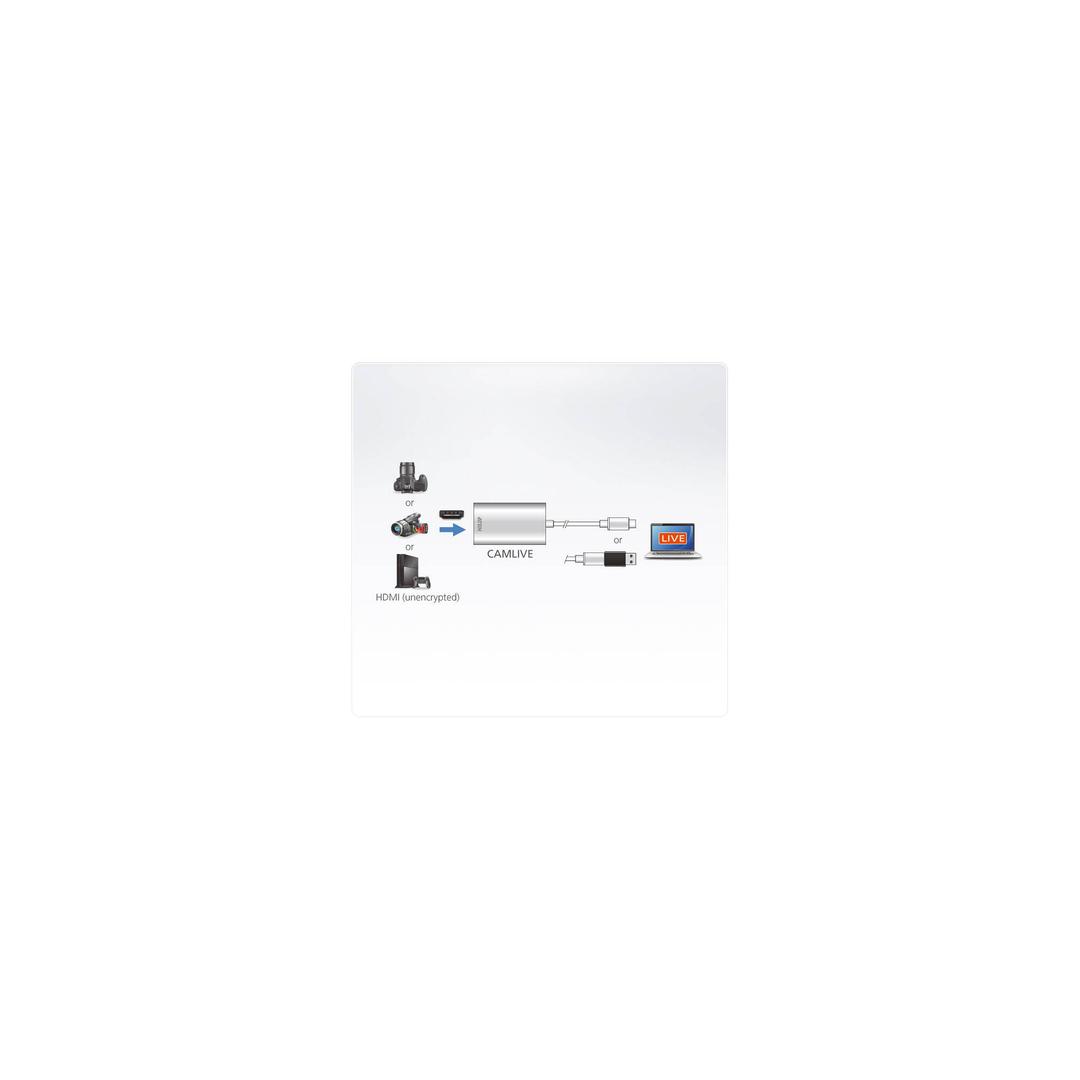

- Captures unencrypted HDMI video signal from a camcorder or DSLR
- Supports live video streaming, webcasting and video conferencing
Product Specification
| Device Type | Video capture adapter |
| Interface Type | USB 3.1 Gen 1 |
| Width | 7.3 cm |
| Depth | 4.2 cm |
| Height | 1.4 cm |
| Weight | 42 g |
| Video | |
| Interface Type | HDMI input |
| Video Modes | 480p, 720p, 1080p |
| Digital Video Format | MJPEG |
| Audio Input Support | Standard |
| Audio Sampling Format | Stereo 16-bit / 48 kHz, stereo 16-bit / 44.1 kHz, stereo 16-bit / 32 kHz |
| Expansion / Connectivity | |
| Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A |
| Connections | 1 x USB 3.1 Gen 1 - 24 pin USB-C |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-A adapter - external |
| Device Features | USB powered |
| Compliant Standards | Plug and Play, FCC, RoHS |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Apple macOS 10.13 or later |
| System Requirements Details | Core i3 - 2.8 GHz - RAM 4 GB |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - UC3020
More Details
Product Code
03:217810
EAN Code
4719264647475
Manufacturer
Aten
