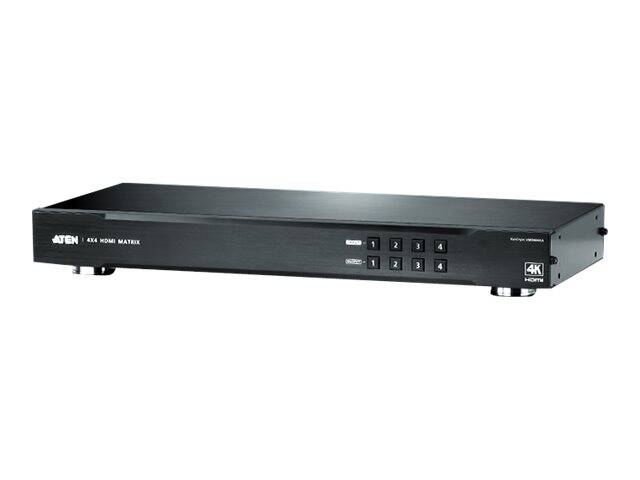

ATEN VanCryst 4 x 4 4K HDMI Matrix Switch VM0404HA - Video/audio switch - desktop, rack-mountable | VM0404HA
Please sign in so that we can notify you about a reply
Special Fetures
- 4x4 HDMI I/O connections
- Supports up to 4K resolution

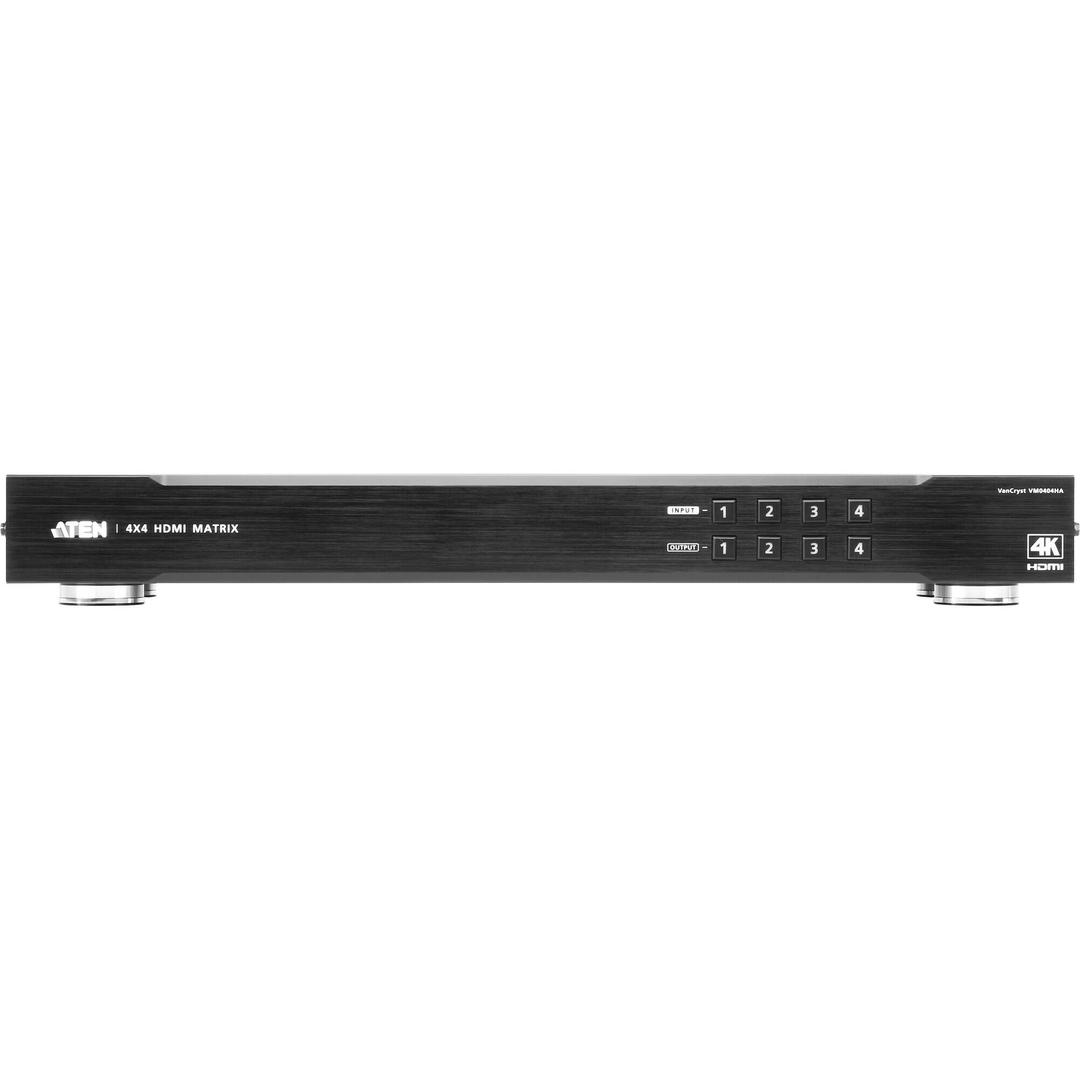

- Multiple control methods - system management via front-panel pushbuttons, IR and RS-232 connections
- EDID Expert - selects optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens
- ESD protection for HDMI
- Rack-mountable
Product Specification
| Device Type | Video/audio switch |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | HDMI |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Video Bandwidth | 340 MHz |
| Features | Firmware upgradable, input selection buttons, 3D support, 4K resolution support, metal housing, Dolby TrueHD support, DTS-HD Master Audio support, EDID Expert |
| Compliant Standards | HDCP 1.4 |
| Expansion / Connectivity | |

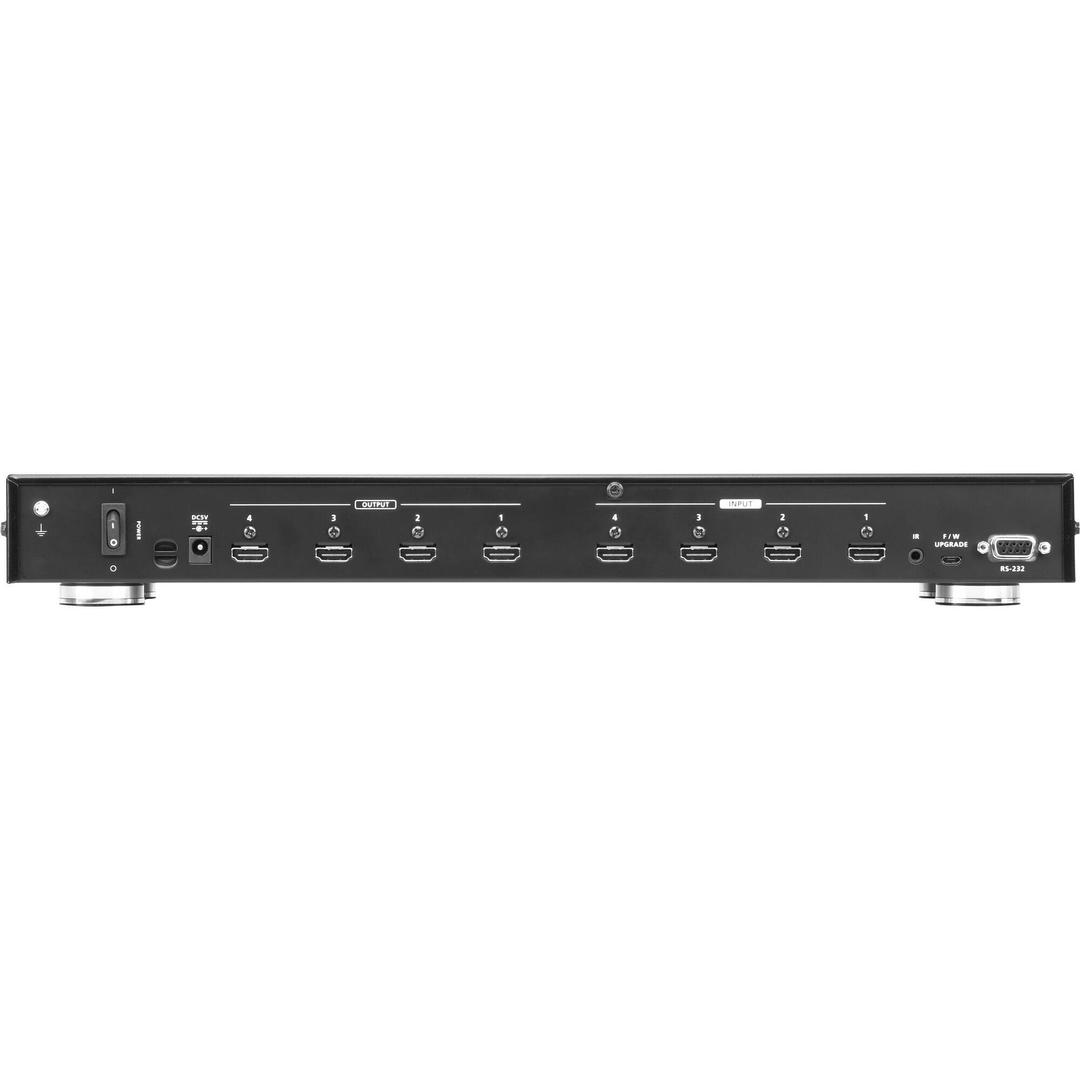

| Interfaces | 4 x HDMI input ¦ 4 x HDMI output ¦ 1 x serial (RS-232) DB-9 management ¦ 1 x USB management ¦ 1 x remote control (IrDA) mini-jack |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 10.58 Watt |
| Miscellaneous | |
| Included Accessories | Remote control, IR receiver |
| Rack Mounting Kit | Included |
| Compliant Standards | FCC Part 15 B, RoHS, DDC, WEEE, CEC |
| Dimensions & Weight | |
| Width | 43.72 cm |
| Depth | 16.29 cm |
| Height | 4.4 cm |
| Weight | 2.02 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - VM0404HA
More Details
Product Code
03:217869
EAN Code
4719264643873
Manufacturer
Aten
