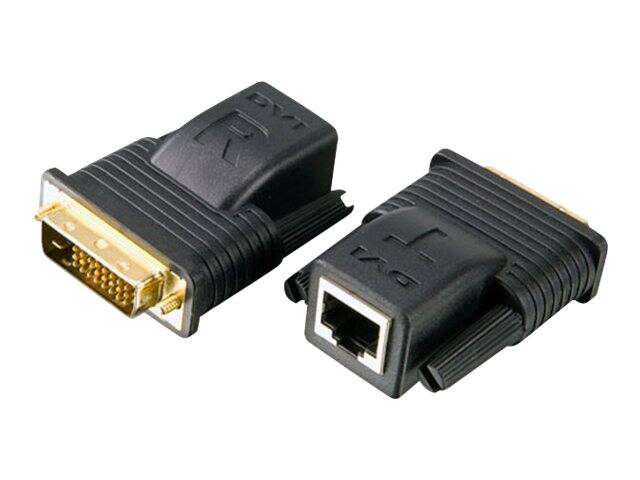

ATEN VE066 Local and Remote Units - Video extender - 24+5 pin combined DVI / 24+5 pin combined DVI - up to 20 m - for P/N: VE602-AT-E | VE066
Please sign in so that we can notify you about a reply
Special Fetures

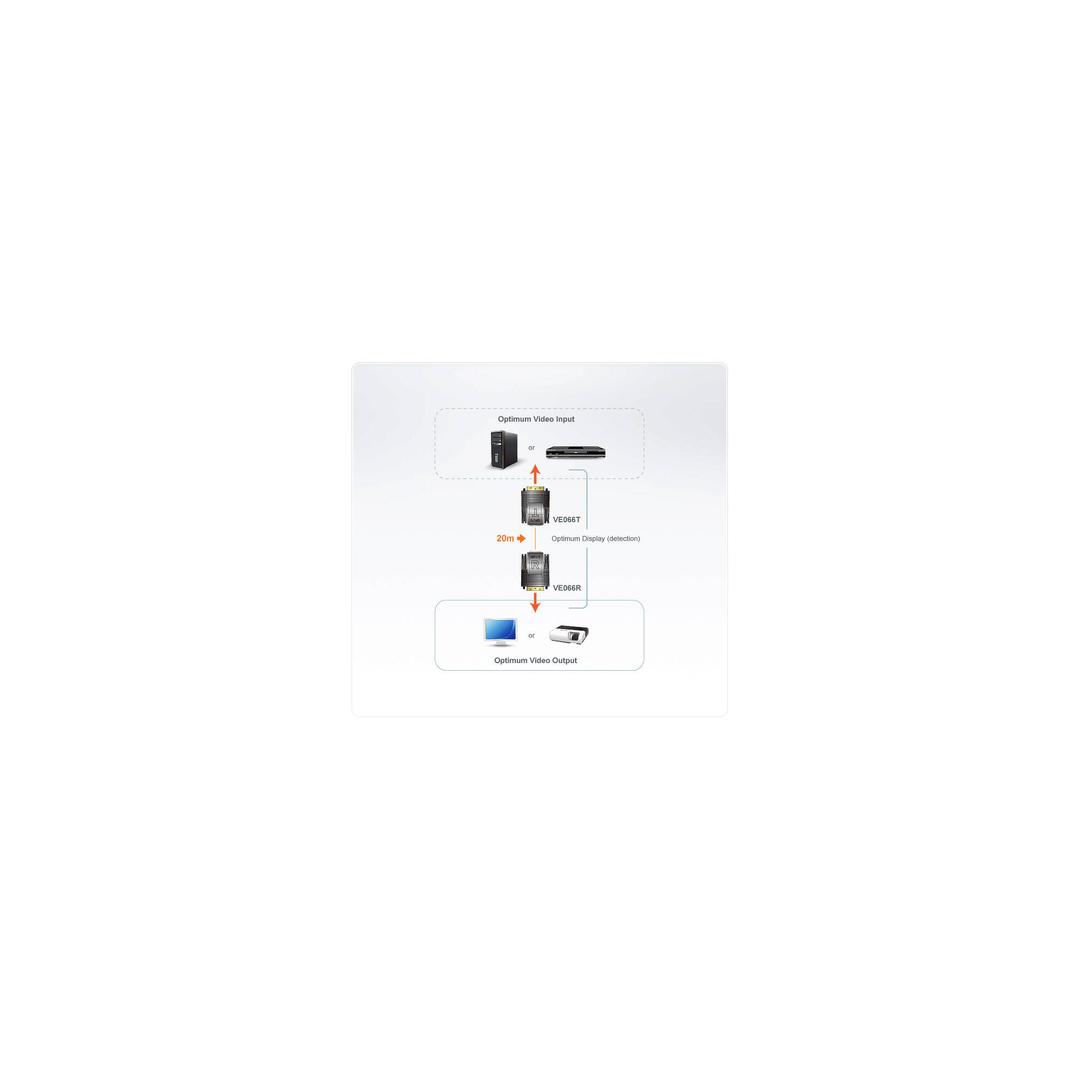

- Extends the distance between DVI source and DVI display
- Uses Cat 5e cable to connect the Transmitter and Receiver units
- Long distance transmission - up to 15m for 1080p; up to 15 m for 1600 x 1200; up to 20m for 1080i (HDTV)
- HDCP 1.1 compliant
- Supports hot-plugging
- Superior video quality - HDTV resolutions of 720p, 1080i and 1080p (1600 x 1200); SVGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Compact housing
- Compatible with all ATEN DVI switches and DVI splitters
- Supports LCD Screen, Plasma TV, and projectors
- Perfect for home entertainment system, bank, surveillance system, outdoors multimedia display, airport, finance institution
- Smart video display - image quality is optimized based on the available resolution of the output device
Product Specification
| Device Type | Video extender |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Max Resolution | 1920 x 1200 / 1080p |
| Max Transfer Distance | 20 m |
| Compliant Standards | HDCP 1.1 |
| Expansion / Connectivity | |
| Interfaces | 1 x display / video - DVI-Digital input - 24+5 pin combined DVI female ¦ 1 x display / video - DVI-Digital output - 24+5 pin combined DVI female |
| Dimensions & Weight | |
| Width | 5.7 cm |
| Depth | 4 cm |
| Height | 2.2 cm |
| Weight | 47 g |
| Compatibility Information | |
| Designed For | P/N: VE602-AT-E |
Features - Aten - VE066
More Details
Product Code
03:217852
EAN Code
4710423776531
Manufacturer
Aten
