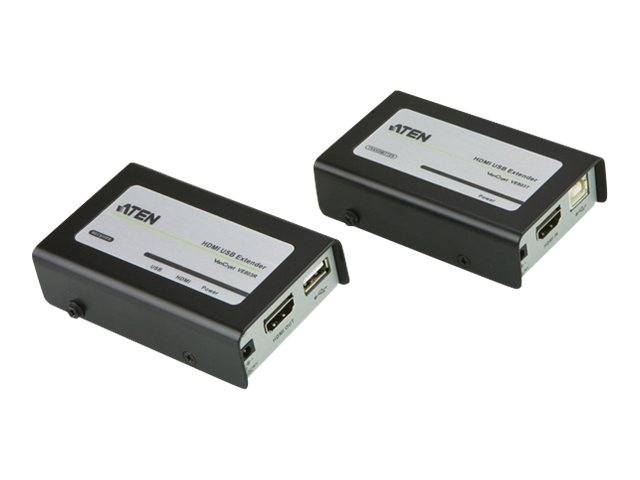

ATEN VE803 HDMI USB Extender / Video/audio/USB extender / HDMI / up to 60 m | VE803
Please sign in so that we can notify you about a reply
Special Features
- Uses two Cat 5e cables to connect the local and the remote units
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- Supports USB touch panel
- 8 segment equalization adjustment switch optimizes display quality
- Support Dolby True HD and DTS HD Master Audio
- Built-in 8 KV/15 KV ESD protection
- Transparent USB support - supports all USB 2.0 full speed device
- Supports wide screen formats
- HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 2.25 Gbps
Product Specification
| Device Type | Video/audio/USB extender |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI |
| Max Resolution | 1920 x 1200 |
| Max Transfer Distance | 60 m |
| Status Indicators | Power |
| Features | HDCP compliant, 3D support |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x HDMI ¦ 1 x USB |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB cable - 1.8 m |
| Mounting Kit | Included |
| Compliant Standards | VESA EDID, RoHS, WEEE |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.16 cm |
| Depth | 7.16 cm |
| Height | 2.3 cm |
| Weight | 160 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
Features - Aten - VE803
Length
>50m
More Details
Product Code
03:184056
EAN Code
4710423779716
Manufacturer
Aten
