Special Features

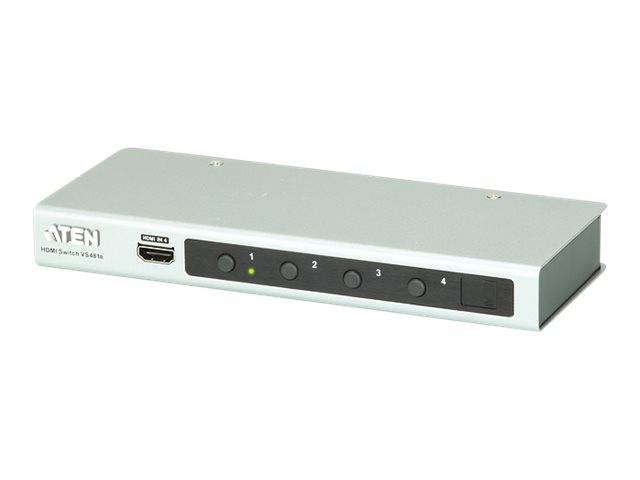

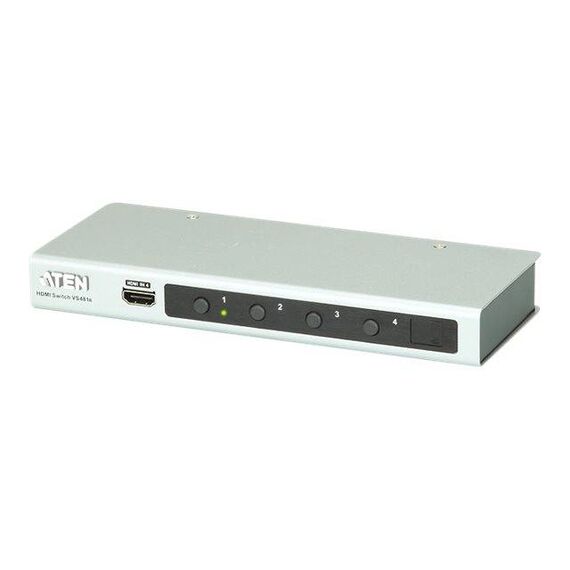

- Allows up to four HDMI A/V sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR remote control
- HDMI (3D, Deep Color, 4kx2k); HDCP compatible
- Auto switching modes for auto port selection
- Long distance transmission - up to 15 m (24 AWG)
- Supports Dolby true HD and DTS HD master audio
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Instant switching between HDMI input sources
- LED indication of video source devices
Product Specification
| Device Type | Video/audio switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | HDMI |
| Ports | 4 x HDMI |
| Max Resolution | 4096 x 2160 |
| Max Video Bandwidth | 340 MHz |
| Features | HDCP compliant, 4K resolution support, 2K resolution support |
| Status Indicators | Select |
| Expansion / Connectivity | Expansion / Connectivity |

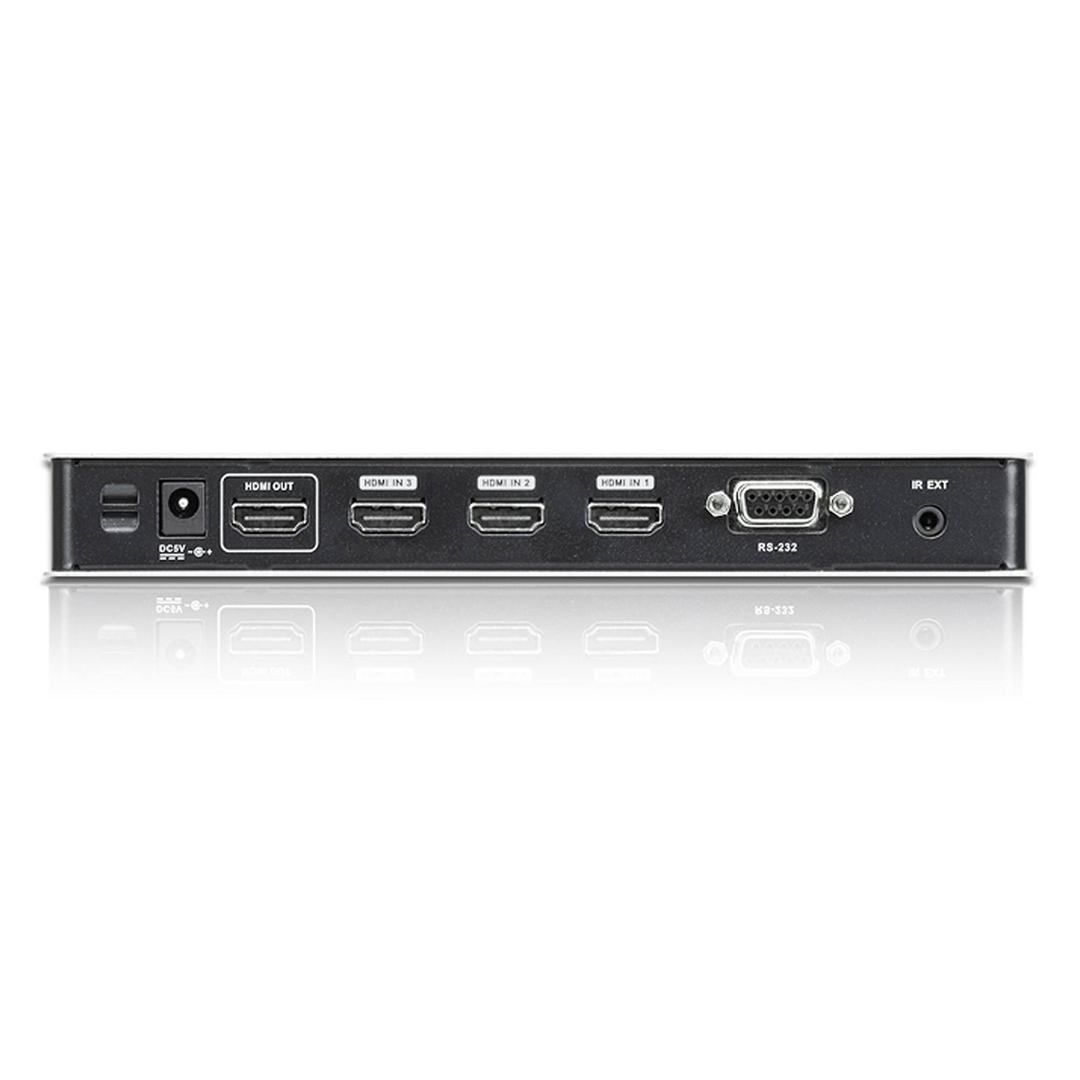

| Interfaces | 4 x HDMI input Type A ¦ 1 x HDMI output Type A ¦ 1 x serial (RS-232) DB-9 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wireless remote control |
| Cables Included | 1 x HDMI cable |
| Compliant Standards | RoHS, WEEE |
| Dimensions & Weight | Dimensions & Weight |
| Width | 20 cm |
| Depth | 8.25 cm |
| Height | 2.5 cm |
| Weight | 470 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 60 °C |
Features - Aten - VS481B
More Details
Product Code
03:201322
EAN Code
4719264642203
Manufacturer
Aten
