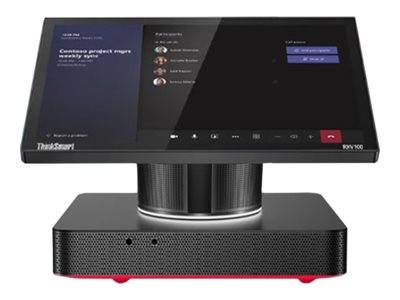

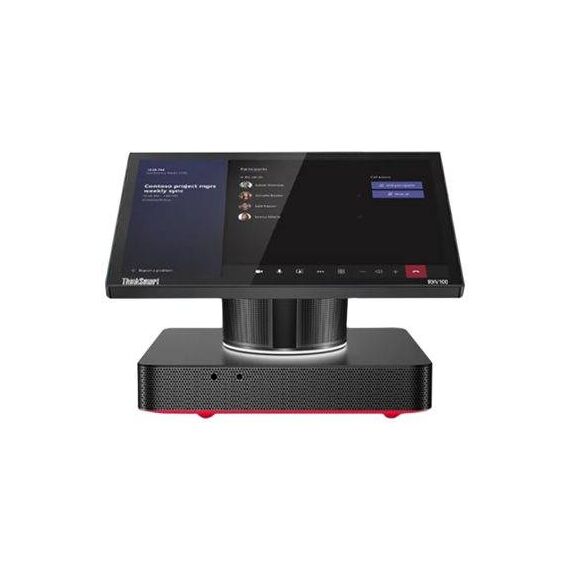

AudioCodes Room Experience (RX) Suite RXV100-B05 / Hub / Certified for Microsoft Teams Rooms | RXV100-B05-EU

Product Features
- Integrated audio clarity
The RXV100-B05 features an integrated 4-microphone array and 4 speakers, ensuring clear audio input and output. With a 3 W output power per channel, it delivers sound that is both powerful and precise, enhancing the overall room experience. - Versatile connectivity
Equipped with a wide range of interfaces including HDMI input and output, USB 3.2, and network connectivity through RJ-45, the RXV100-B05 offers versatile connection options for seamless integration into any setup. - High-definition display
A 10.1-inch touchscreen with a native resolution of 1920 x 1200, anti-glare, and smudge-resistant features, provides a vivid and clear visual experience. The display is also 360° rotatable, making it adaptable to any room configuration. - Advanced networking capabilities
With support for Bluetooth 5.0 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, and IEEE 802.11ac, alongside Quality of Service (QoS), VLAN support, and more, the RXV100-B05 ensures reliable and high-speed connectivity. - Secure and user-friendly design
The device comes with a Kensington Security Slot for physical security, while its compliance with Plug-and-Play standards ensures easy setup and operation. The inclusion of a proximity sensor further enhances its user-friendly nature.
Special Features
- Integrated 4-microphone array and 4 speakers for clear audio
- 10.1-inch touchscreen with 1920 x 1200 resolution for vivid visuals
- 360° rotatable display with anti-glare and smudge-resistant features
- Multiple connectivity options including HDMI, USB 3.2, and Bluetooth 5.0 LE
- Supports Quality of Service (QoS) and VLAN for enhanced network performance
Product Specification
Device Type | Hub |
Width | 24 cm |
Depth | 20 cm |
Height | 18.53 cm |
Weight | 2.47 kg |
Built-in Devices | 4 speakers, proximity sensor, 4 microphone array |
Localisation | Europe |
Display | Display |
Diagonal Size | 10.1" |
Native Resolution | 1920 x 1200 |
Image Aspect Ratio | 16:10 |
Image Brightness | 320 cd/m² |
Monitor Features | Anti-glare, touch screen, 360° rotatable, smudge resistant, Kensington Security Slot |
Audio Input | Audio Input |
Type | 4-microphone array - integrated |
Audio Output | Audio Output |
Type | Speaker(s) |
Output Power / Channel | 3 Watt |
Networking | Networking |
Type | Network adapter |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac, Bluetooth 5.0 LE |
Features | VLAN support, Quality of Service (QoS), Type of Service (ToS) |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 1 x audio / video - HDMI input - 19 pin HDMI Type A 1 x USB 3.2 - 24 pin USB-C 3 x USB 3.2 - 9 pin USB Type A 2 x audio / video - HDMI output - 19 pin HDMI Type A 1 x network - RJ-45 1 x audio - mini-phone stereo 3.5 mm |
Miscellaneous | Miscellaneous |
Software Certification | Certified for Microsoft Teams Rooms |
Compliant Standards | Plug and Play |
Software / System Requirements | Software / System Requirements |
Software Included | Windows 10 IoT Enterprise 64-bit |
