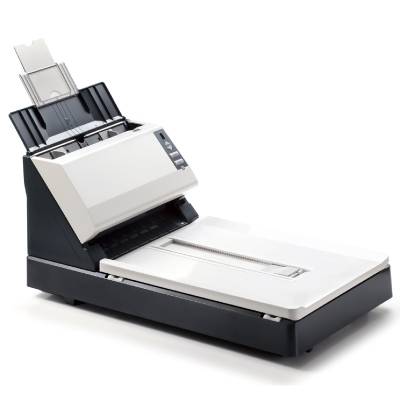

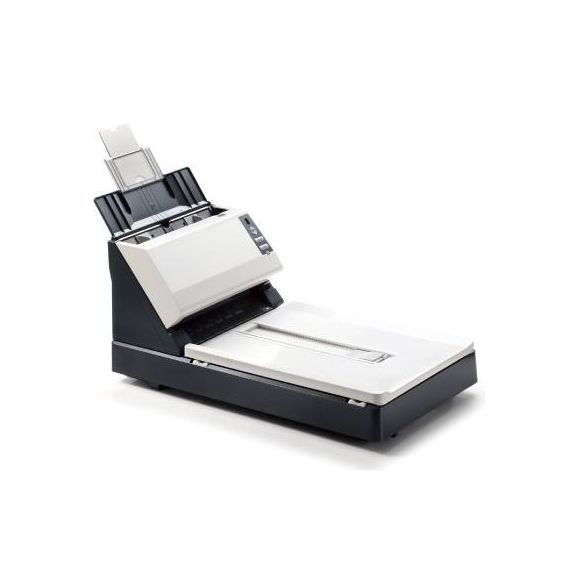

Avision AV1880 / Document scanner / Duplex / 222 x 356 mm / 600 dpi / up to 40 ppm (mono) / up to 40 ppm (colour) / ADF ( 50 sheets ) / up to 4000 scans per day / USB 2.0 | 000-0756-02G
Avision AV1880 / Document scanner / Duplex / 222 x 356 mm / 600 dpi / up to 40 ppm (mono) / up to 40 ppm (colour) / ADF ( 50 sheets ) / up to 4000 scans per day / USB 2.0 | 000-0756-02G
|
Description The AV1880 is a high-speed color duplex scanner. Designed to scan both documents up to legal size and plastic ID cards, the AV1880 can be used to capture all the information you need in a fast and reliable performance.The scanner's straight paper path provides smooth and reliable paper transmit and less document jam. It also ensures thicker paper up to 400 g/m2 and embossed plastic cards up to 1.25mm can be transmitted smoothly.Enhanced with innovative features, the Avision AV1880 offers high throughput of 40 ppm and 80 ipm in a compact footprint conserving both space and budget. Unlike common sheet-fed scanners which provide only the auto document feeder and can not accommodate irregular sizes and weights of paper, the AV1880 harmoniously combines the benefits of the fast scan rate of the ADF and the convenience of the flatbed unit to meet customer's diverse requirements. Special Features
Product features
|
Product Specification
| Type | Document scanner - desktop |
| Interface Type | USB 2.0 |
| Max Supported Document Size | 222 x 356 mm |
| Input Type | Colour |
| Grayscale Depth | 16-bit (64K grey levels) |
| Grayscale Depth (External) | 8-bit (256 grey levels) |
| Colour Depth | 48-bit colour |
| Colour Depth (External) | 24-bit (16.7 million colours) |
| Optical Resolution | 600 dpi |
| Automatic Duplexing | Yes |
| Scan Element Type | CCD |
| Bulb / Light Source Type | LED |
| Max Document Scan Speed B/W | 40 ppm |
| Max Document Scan Speed Colour | 40 ppm |
| Duty Cycle | 4000 scans per day |
| Scanner Speed Details | 40 ppm - A4 - 200 dpi ¦ 80 ipm - duplex - black & white - A4 - 200 dpi ¦ 40 ppm - black & white - A4 - 300 dpi ¦ 80 ipm - duplex - black & white - A4 - 300 dpi ¦ 40 ppm - colour - A4 - 200 dpi ¦ 80 ipm - duplex - colour - A4 - 200 dpi ¦ 40 ppm - colour - A4 - 300 dpi ¦ 80 ipm - duplex - colour - A4 - 300 dpi |
| Scanner Features | Ultrasonic paper jam detection |
| Compliant Standards | TWAIN, ISIS |
| Max Document Size | 222 mm x 2997 mm |
| Supported Document Type | Plain paper, business card |
| Supported Document Size Details | ADF - up to Legal (216 x 356 mm) ¦ Flatbed - up to 222 x 356 mm |
| Document Feeder Type | Automatic |
| Document Storage Capacity | 50 sheets |
| Interfaces | USB 2.0 |
| Power Consumption Operational (Standby) | 31 Watt |
| Power Consumption Stand by | 11.5 Watt |
| Software Included | AVScan 5.0, Avision Button Manager 2, ScanSoft PaperPort 14 SE, Adobe Acrobat XI Standard |
| Width | 58.8 cm |
| Depth | 31.9 cm |
| Height | 27.2 cm |
| Weight | 8.2 kg |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
