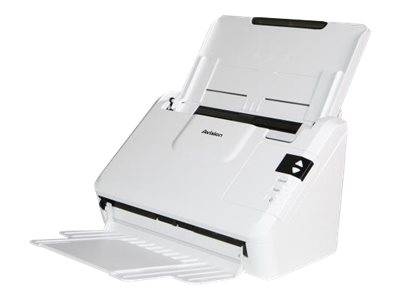

Avision AV332U / Document scanner / Contact Image Sensor (CIS) / Duplex / Legal / 600 dpi / up to 32 ppm (mono) / up to 32 ppm (colour) / ADF (50 sheets) / up to 3000 scans per day / USB 2.0 | FF-1904B
Please sign in so that we can notify you about a reply
Product Features
- High optical resolution
With a high optical resolution of 600 dpi and advanced image processing technology, you can be assured documents can be converted in the high image quality. In addition, with the built-in CIS (Contact Image Sensor) module, the AV332 series does not require any warm-up time. - Innovative design to save your space
The AV332 series boasts a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AV332 series can be easily carried and fit on a desk without taking up a lot of space.
Special Features
- Easy to carry due to the slim design
- Supports embossed plastic cards
- Ultrasonic multi-feed detection
- Earth-friendly LED technology
- Compact ADF holds up to 50 pages
Product Specification
| Type | Document scanner - desktop |
| Interface Type | USB 2.0 |
| Max Supported Document Size | Legal (216 x 356 mm) |
| Scanner | Scanner |
| Input Type | Colour |
| Grayscale Depth | 16-bit (64K grey levels) |
| Grayscale Depth (External) | 8-bit (256 colours) |
| Colour Depth | 48-bit colour |
| Colour Depth (External) | 24-bit (16.7 million colours) |
| Optical Resolution | 600 dpi |
| Automatic Duplexing | Yes |
| Scanning Sensor Type | Contact Image Sensor (CIS) |
| Bulb / Light Source Type | LED |
| Max Document Scan Speed B/W | 32 ppm |
| Max Document Scan Speed Colour | 32 ppm |
| Duty Cycle | 3000 scans per day |
| Scanner Speed Details | 32 ppm - colour - A4 - 300 dpi ¦ 64 ipm - duplex - colour - A4 - 300 dpi |
| Scanner Features | Ultrasonic paper jam detection |
| Compliant Standards | TWAIN, ISIS |
| Media Handling | Media Handling |
| Max Document Size | 216 mm x 356 mm |
| Supported Document Type | Plain paper, business card, plastic card, ID card |
| Document Feeder Type | Automatic |
| Document Storage Capacity | 50 sheets |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | USB 2.0 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational (Standby) | 33 Watt |
| Power Consumption Stand by | 7.5 Watt |
| Power Consumption Sleep | 2 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Avision Button Manager 2, Avision AvScan X, Nuance PaperPort 14 SE |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 (32/64 bits) |
| System Requirements Details | Core i3 - 2.1 GHz - RAM 2 GB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28.2 cm |
| Depth | 15.2 cm |
| Height | 16.5 cm |
| Weight | 2.48 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% |
| Sound Emission | 55 dB |
Features - Avision - FF-1904B
More Details
Product Code
04:348376
EAN Code
4713494651325
Manufacturer
Avision
