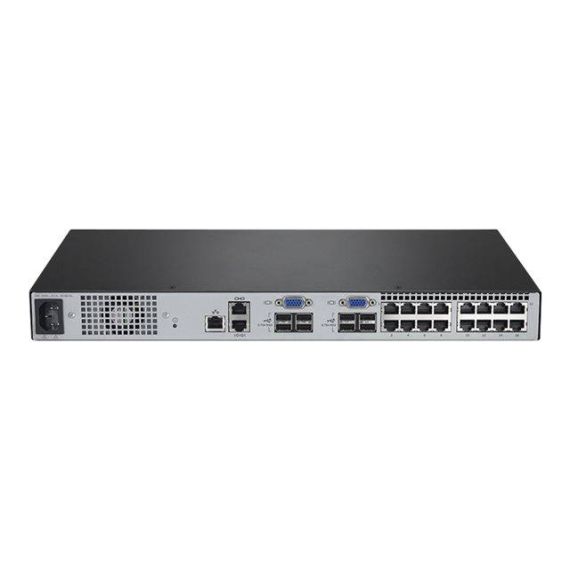

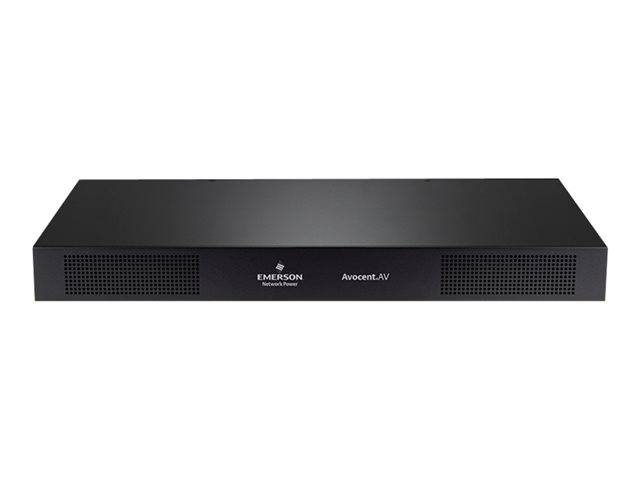

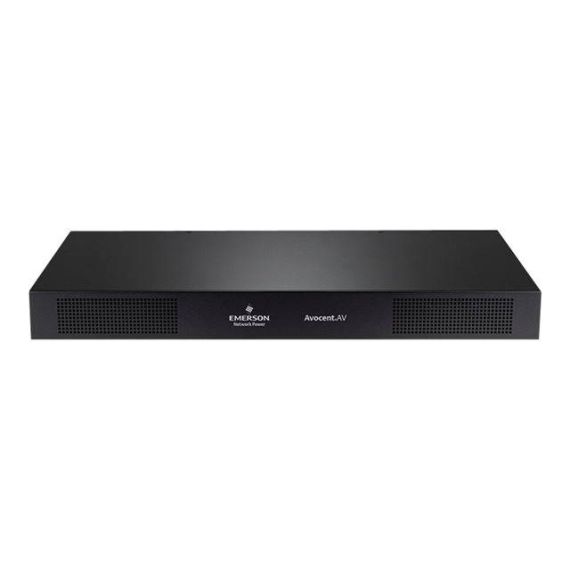

Avocent AutoView 2216 / KVM / USB switch / USB / CAT5 / 16 x KVM / USB / 2 local users / rack-mountable | AV2216-201
|
Description 'Built for small datacenters and remote/branch office environments, this analog KVM switch is used to control and access your servers. AutoView KVM switches can be upgraded to enable remote management with the purchase of a remote access key. |
Product Specification
| Device Type | KVM / USB switch - 16 ports |
| Enclosure Type | Rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM / USB |
| KVM Local Users Qty | 2 local users |
| Server Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | USB |
| Encryption Algorithm | DES, Triple DES, AES, 128-bit SSL |
| Max Resolution | 1600 x 1200 |
| Features | On-Screen Display, IPv6 support, firmware upgradable, Virtual Media support, front to back airflow, IPv4 support, Common Access Card (CAC) reader support |
| Interfaces | 16 x KVM - RJ-45 ¦ 1 x 100Base-TX - RJ-45 ¦ 1 x serial (RS-232) - DB-9 - management ¦ 2 x VGA - HD-15 ¦ 8 x USB - Type A |
| Power Device | Internal power supply |
| Power Provided | 20 Watt |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Compliant Standards | FCC Class A certified, UL, C-Tick, BSMI, cUL, ICES Class A, KCC Class A, VCCI Class A, EAC |
| Localisation | United Kingdom, Ireland |
| Width | 43.2 cm |
| Depth | 16.5 cm |
| Height | 4.37 cm |
| Weight | 2 kg |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - Avocent - AV2216-201
More Details
Product Code
W893912
EAN Code
0636430074719
Manufacturer
Avocent
