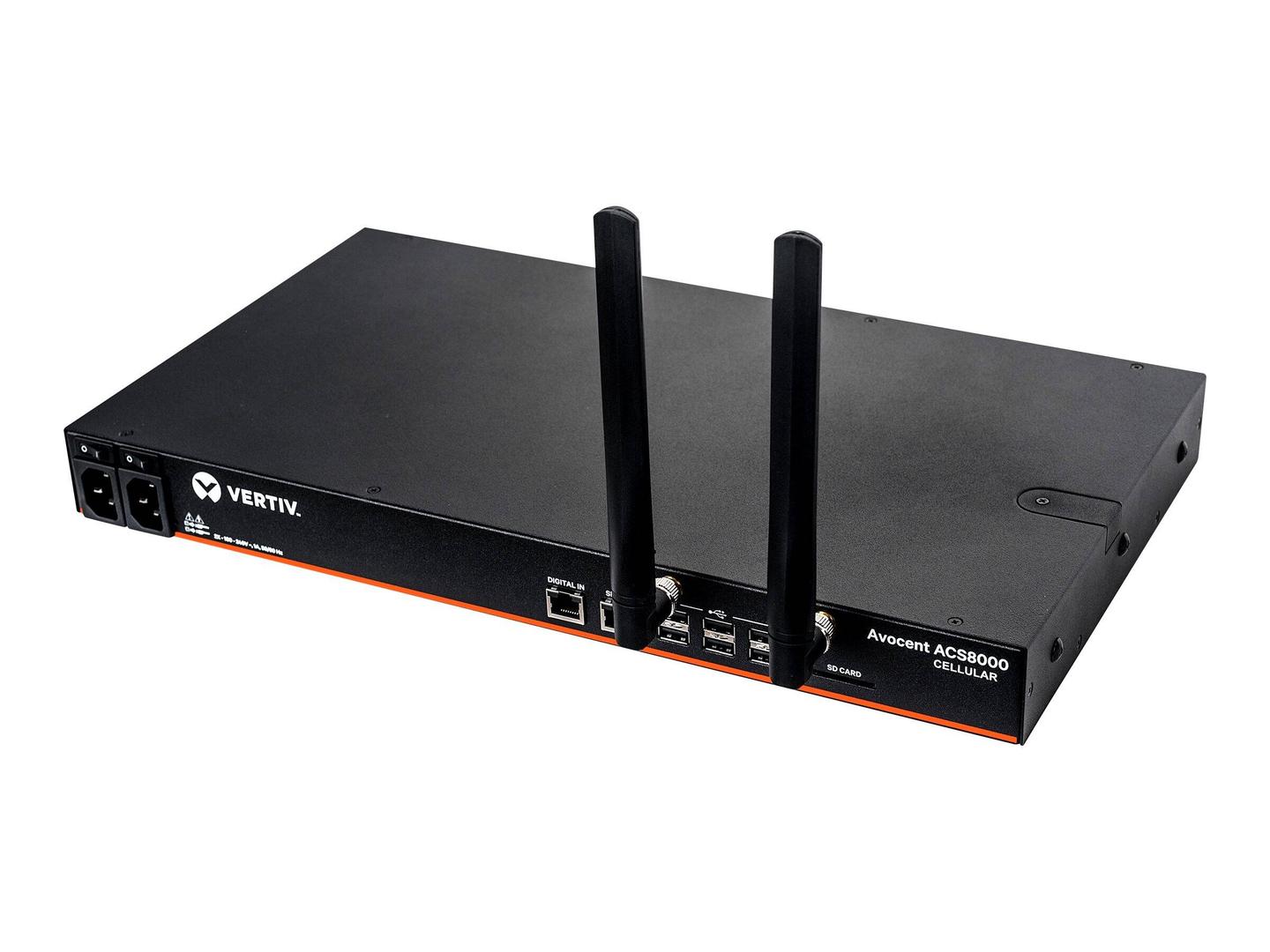

Avocent ACS 8000 Advanced Console Server ACS8048-EU-DAC-400 / Console server / 48 ports / GigE, RS-232, RS-422, RS-485 / LTE B1/B20/B28/B3/B7/B8 / 1U / rack-mountable | ACS8048-EU-DAC-400
Please sign in so that we can notify you about a reply
Special Features
- Cellular connectivity provides both primary WAN interface and secondary failover support
- Environmental sensor port gives visibility into onsite conditions
- Secure in-band and out-of-band network remote management
- Fast, automated configuration with Zero Touch Provisioning
- Access and troubleshoot remote locations using automatic network failover to cellular, Ethernet or analog modem
- No need for adaptors with automatic Cyclades and Cisco pin-out conversions
- Compliance with data center access and security policies customizable, multiple access levels
- Expanded support for Rack PDUs from Vertiv Geist, ServerTech, APC, Raritan and Eaton
- Support for Vertiv GXT4 and Vertiv GXT5 UPS systems
- IPv6 and IPv4 support for network deployments
- Integration with Avocent DSView software for centralized management
- Console event logging and notification, including "last gasp" capture
- Regulatory compliance and easy troubleshooting - online and off-line data logging with time stamps
Product Specification
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Width | 43.82 cm |
| Depth | 24.13 cm |
| Height | 4.45 cm |
| Localisation | Europe |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x ARM A9 |
| RAM | 1 GB DDR3L SDRAM |
| Flash Memory | 16 GB |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Authentication Method | DSView |
| Communications | Communications |
| Mobile Broadband Access | Yes |
| Mobile Band | LTE B1/B20/B28/B3/B7/B8 |
| Supported Flash Memory Cards | SD Memory Card |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SIM card |
| Interfaces | 2 x Ethernet 1000 - SFP (mini-GBIC) ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x RS-232/422/485 - RJ-45 ¦ 46 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 1 x sensor - RJ-45 ¦ 4 x sensor |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, UL 60950-1 Second Edition, KCC, FCC Part 22, FCC Part 24, PTCRB, FCC Part 27, IEC 60950-1 Second Edition, RCM, FCC Part 15 Class B, CU, cUL No.60950-1 Second Edition |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 28 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% |
Features - Vertiv - ACS8048-EU-DAC-400
More Details
Product Code
CA88766
EAN Code
0636430090443
Manufacturer
Vertiv
