Avocent Local Rack Access / KVM console with KVM switch / 8 ports / USB / 19" (18.5" viewable) / rack-mountable / 1366 x 768 / 250 cd/m / VGA / 1U | LRA185KMM8D-001
Avocent Local Rack Access / KVM console with KVM switch / 8 ports / USB / 19" (18.5" viewable) / rack-mountable / 1366 x 768 / 250 cd/m / VGA / 1U | LRA185KMM8D-001
Description

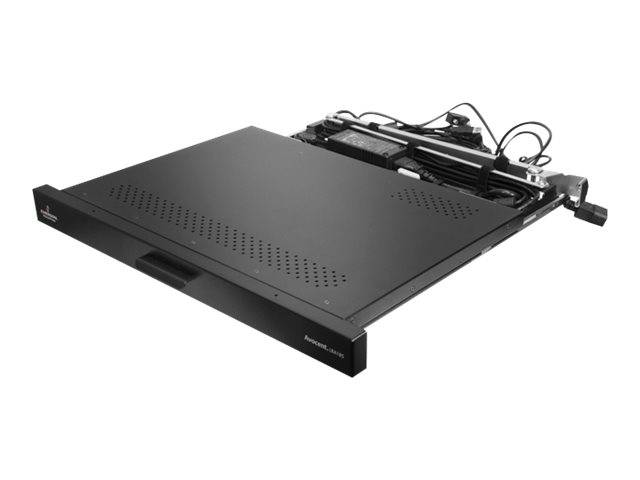

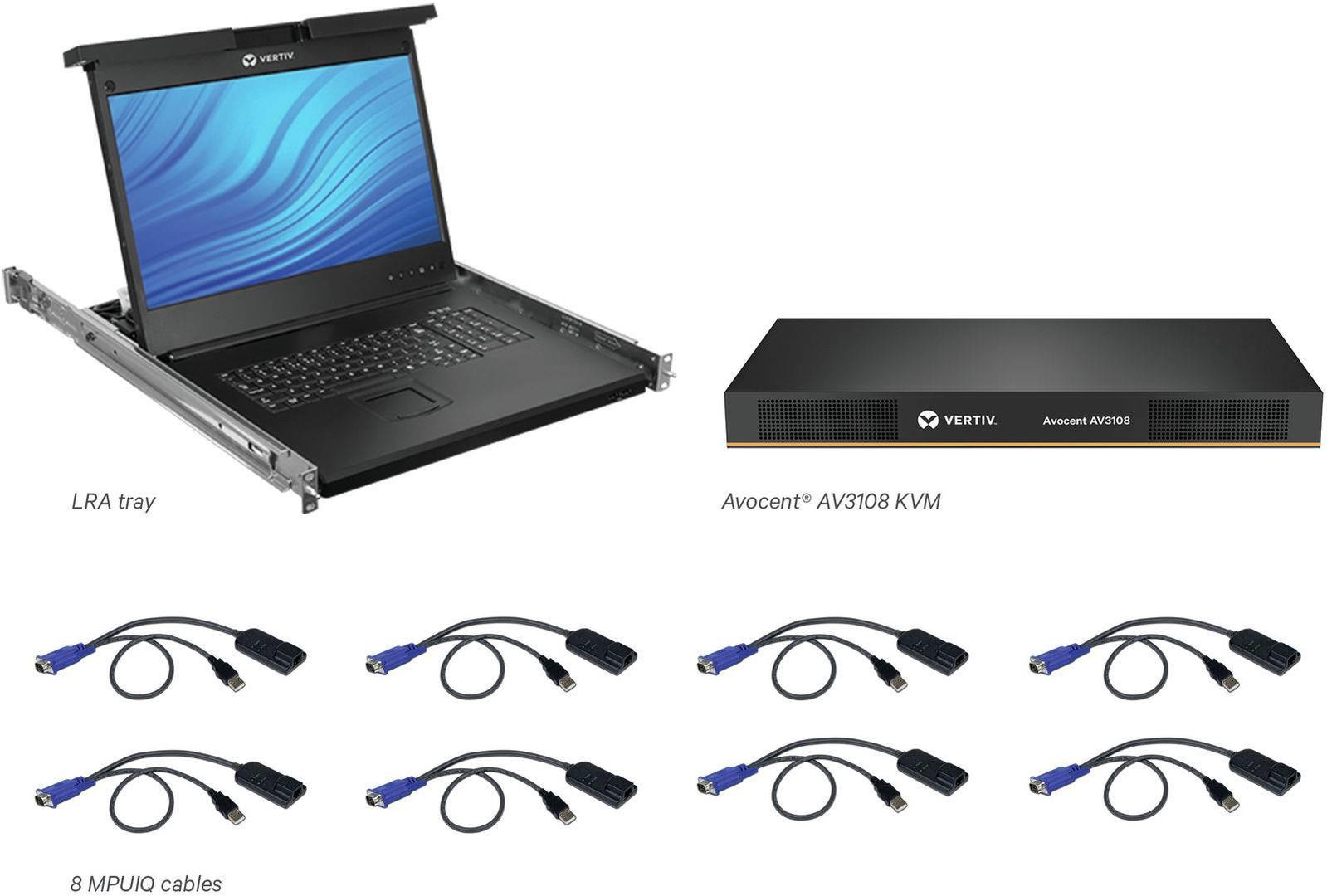

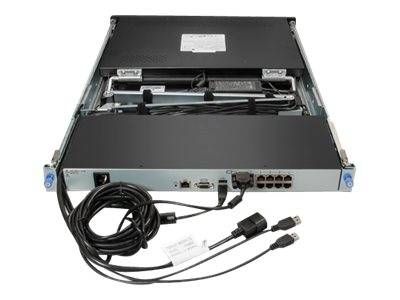

The Vertiv Avocent LRA Console and KVM Bundle makes software upgrades, troubleshooting and system monitoring more convenient and less time consuming by providing easy access to multiple servers and other IT gear, protecting uptime and staff time. The LRA185KMM8D-001 model has everything needed for at-the-rack access, including a widescreen LCD console tray, full desktop-style keyboard with touchpad, an 8-port rackmount KVM over IP Switch, and 8 MPUIQ-VMCHS server interface module cables. The Vertiv Avocent LRA Console and KVM over IP Bundle eliminates the clutter of crash carts, monitors and keyboards. The tray features standard USB and VGA interfaces that are broadly compatible with servers and network devices. Its minimal power draw during standby and operation saves energy and money.
Avocent Local Rack Access / KVM console with KVM switch | LRA185KMM8D-001
Special Features
- Form factor
- KVM compatibility
- On-screen display
- Ease of use
- Environmentally responsible
- Global availability
Product features
- Form factor
Trays are easy to access, yes lock securely in and only 1U preserving rack space. - KVM compatibility
LRA Consoles are compatible with all Avocent data center KVM switches. - On-screen display
Easy-to-use intuitive design in multiple languages. - Ease of use
Convenient, full 103-keys keyboard with full numpad. - Environmentally responsible
Low power usage during operation and standby. - Global availability
Certifications and keyboard language support.
Product Specification
| Display Type | KVM console |
| Diagonal Size | 19" |
| Viewable Size | 18.5" |
| Built-in Devices | 8 port KVM switch |
| Aspect Ratio | 16:9 |
| Native Resolution | 1366 x 768 at 60 Hz |
| Pixel Pitch | 0.3 mm |
| Brightness | 250 cd/m² |
| Vertical Refresh Rate | 55 - 85 Hz |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 160 |
| Backlight Technology | LED backlight |
| Dimensions (WxDxH) | 48.3 cm x 53.3 cm x 4.45 cm |
| Height (Rack Units) | 1U |
| Weight | 9.98 kg |
| Type | Keyboard, touchpad |
| Type | KVM switch - 8 ports |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1600 x 1200 @ 60 Hz |
| Features | US keyboard layout |
| Interfaces | Keyboard (USB) ¦ Mouse (USB) ¦ VGA ¦ 2 x USB 2.0 (pass-through) ¦ 8 x KVM (RJ-45) |
| Cables Included | 8 x keyboard / mouse / video cable |
| Compliant Standards | FCC Class A certified, UL, VCCI, C-Tick, BSMI, CCC, KCC, EAC |
| Localisation | Asia Pacific, North America, Europe |
| Voltage Required | AC 90 - 264 V (50 - 60 Hz) |
| Power Consumption Operational | 17 Watt |
| Power Consumption Stand by | 0.5 Watt |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 80% |
