Avocent MergePoint Unity 2016DAC - KVM switch - Managed - CAT5 - 16 x KVM port(s) - 1 local user - 2 IP users - desktop, rack-mountable | MPU2016DAC-001
MPU2016DAC-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Improve remote management and staff efficiency
Reduce the time required to remotely diagnose/reconfigure/repair/restore servers as well as network devices and other hardware with serial configuration and/or management consoles. Complement in-band tools to create a more complete remote management solution to access servers and network equipment at remote locations. Virtual media enables remote USB connections to map CD-ROM and other USB mass storage devices directly to remote servers to transfer/copy files, load updates or install new applications, etc.Integrated serial device support allows secure SSH connections to the physical serial ports of devices attached to the MPUIQ-SRL module. The Cisco configuration settings electronically pin out the module to enable a fast and direct connection to Cisco configuration ports, without the need for any additional external wiring adapters or special wiring. - Improve physical security
Remote smart card/CAC reader support is provided for advanced security requirements. Using the virtual media capabilities of the Avocent MergePoint Unity switch, a smart card reader can be mapped from a desktop PC out to a remote server. Reduce the need to physically enter the data centers for local access and control. The Avocent MergePoint Unit switch provides remote users the capabilities of a direct physical connection from anywhere to KVM, USB and serial ports of servers and other IT equipment.
Special Fetures
- Remote access to KVM, USB and serial connections
- Serial adaptors support SSH connections
- Serial adaptors support the Cisco pinout to make connections to Cisco equipment quick and easy
- Virtual media enables remote USB connections and support for smartcard/CAC readers
- Built-in Web interface for standalone applications or can be managed with the Avocent DSView 4 management software
- Local and remote browser interface for easy setup and use
Product Specification
| Device Type | KVM switch - 16 ports - Managed - cascadable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | KVM |
| Ports | 16 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| KVM IP Users Qty | 2 IP users |
| Server Connection Via Twisted Pair | CAT5 |
| Keyboard / Mouse Interface | USB |
| Remote Management Protocol | SNMP, HTTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), LDAP |
| Max Resolution | 1280 x 1024 @ 75 Hz |
| Features | DHCP support, LDAP support, IPv6 support, Virtual Media support, IPv4 support, IP-based user connection, server connection via twisted pair |
| Expansion / Connectivity | |
| Interfaces | 16 x KVM / serial RJ-45 ¦ 1 x VGA HD-15 ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 5 x USB 2.0 Type A ¦ 4 x console RJ-45 |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 13 Watt |
| Miscellaneous | |

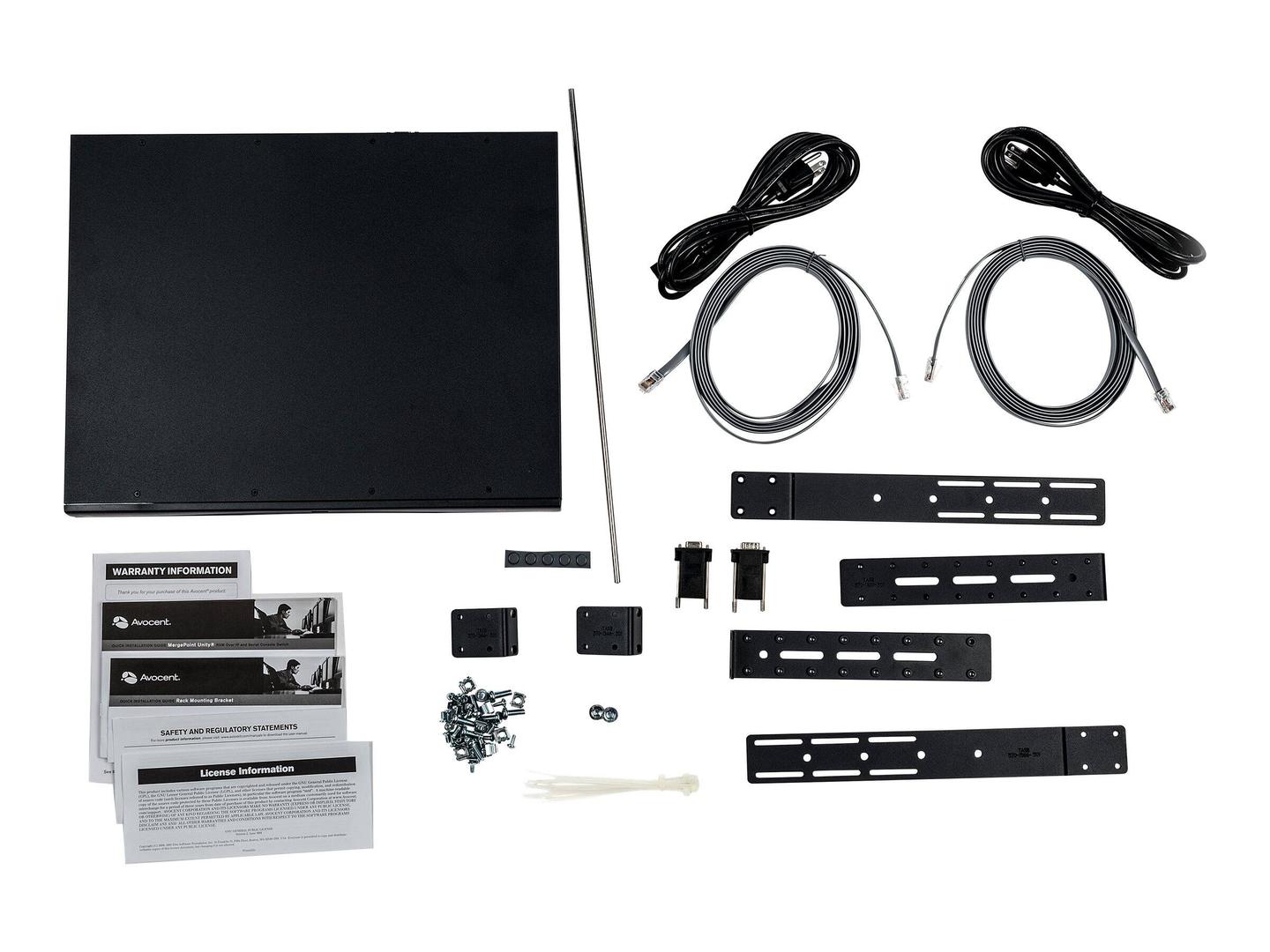

| Rack Mounting Kit | Included |
| Compliant Standards | UL, VCCI, C-Tick, GOST, cUL, ICES-003, FCC, FIPS 140-2, KCC |
| Localisation | North America |
| Dimensions & Weight | |
| Width | 43.18 cm |
| Depth | 34 cm |
| Height | 4.37 cm |
| Weight | 3.9 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% |
Features - Vertiv - MPU2016DAC-001
More Details
Product Code
W892336
EAN Code
0636430052694
Manufacturer
Vertiv
