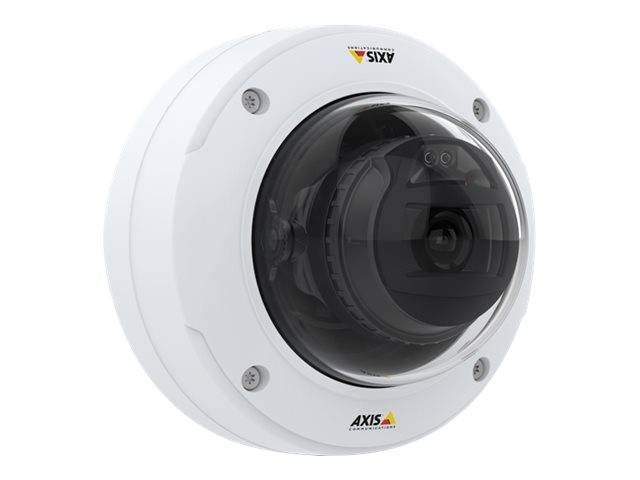

AXIS P3245-LVE Network Camera / Network surveillance camera / dome / outdoor / colour (Day&Night) / 1920 x 1080 / 1080p / auto iris / vari-focal / audio / LAN 10/100 / MJPEG, H.264, HEVC, H.265, MPEG-4 AVC / DC 12 V / PoE Plus | 02047-001
02047-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Never miss a beat
AXIS P3245 has powerful capacity for analytics. It features lightfinder 2.0 providing increased light sensitivity to capture video with more life-like colors and sharp video of moving objects. Even the darkest areas of the scene will be lighter, more colorful and disclose more details. - Keeping you secure
AXIS P3245 is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed.
Special Features
- Zipstream supporting H.264 and H.265
- Signed firmware and secure boot
- Two-way audio and I/O connectivity
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Form Factor | Dome |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 14.9 cm |
| Depth | 14.9 cm |
| Height | 10.4 cm |
| Weight | 860 g |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor |
| Digital Video Format | MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/66500 sec |
| Minimum Illumination | 0.1 lux - colour - F1.6 - 50 IRE ¦ 0.02 lux - B&W - F1.6 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 40 m |
| Video Capture | 1920 x 1080 @ 60 fps |
| RAM | 512 MB |
| Flash Memory | 1024 MB |
| Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, Privacy Mask Function, full duplex audio, active tampering alarm, digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Audio Detection, OptimizedIR, audible alerts, Zipstream technology, remote focus, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Pixel Counter Support, infrared-cut filter, Forensic WDR, IP address filtering, exposure zone, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology |
| Image Sensor | Image Sensor |
| Type | CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | Vari-focal |
| Optical Zoom | 2.6 x |
| Focal Length | 9 mm - 22 mm |
| Lens Iris | F/1.6 auto iris (P-Iris) |
| Horizontal Field of View (degree) | 15 - 35 |
| Vertical Field of View (degree) | 9 - 19 |
| Panning | Panning |
| Range (degree) | -180 to +180 |
| Tilting | Tilting |
| Range (degree) | -10 to +80 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, SIP, LLDP, USGv6 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable gaskets, drill hole template, Resistorx T20 tool L-key, weathershield, connector guard, terminal block connectors |
| Compliant Standards | EN55024, EN 61000-6-1, ICES-003 Class A, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NMB-3 Class A, RCM, IS13252, IEC EN60529, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN 62471, IEEE 802.3af, IEEE 802.3at, KCC KN35, IEC/EN 62262, IEC/EN/UL 62368-1, IEEE 802.1x, NIST SP500-267 |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 V / PoE Plus |
| Power Device | 11.3 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% |
Features - AXIS - 02047-001
More Details
Product Code
CB10419
EAN Code
7331021071483
Manufacturer
AXIS
