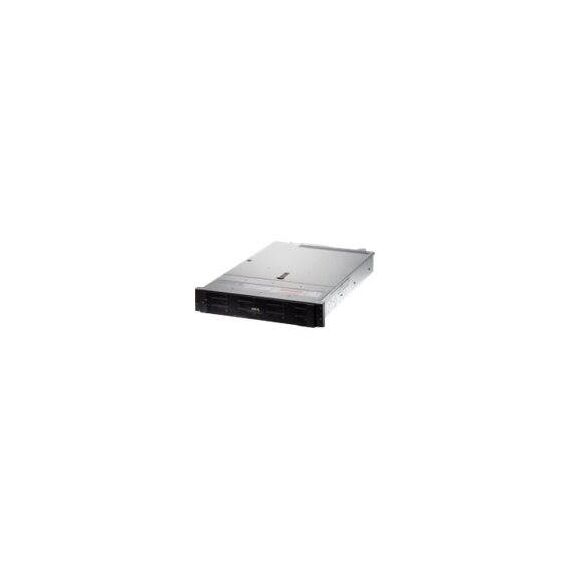

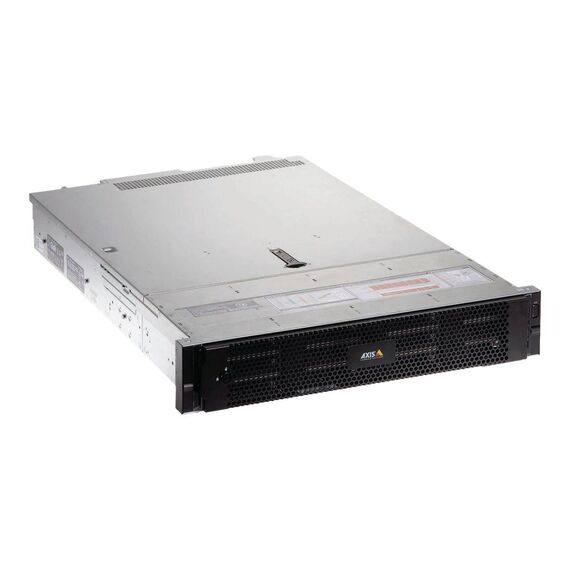

AXIS Camera Station S1148 Recorder / NVR / 48 channels / 6 x 4 TB / networked / 2U / rack-mountable | 01614-001
01614-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Improved performance and reliability
AXIS S1148 provides increased performance and contains a powerful CPU to allow for fast processing of data. - Greater flexibility to meet your needs
AXIS Camera Station S1148 Recorder comes with greater storage flexibility allowing you to fully customize your system storage.
Special Features
- Flexible storage options including RAID
- Optimized for Axis network products
- Quick system setup and intuitive operation
- Extensive support available
Product Specification
| Device Type | NVR - rack-mountable - 2U |
| Video Channels | 48 |
| IP Cameras Supported | 48 |
| Package Content | Rack mount rails |
| OS Provided | Windows 10 Enterprise |
| Software Included (Y) | AXIS Camera Station (48-channel licences) |
| Compliant Standards | BSMI, EN 61000-3-2, IEC 61000-3-2, NOM, EN55024, ICES-003 Class A, FCC Part 15 A, VCCI Class A, EAC, RCM, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-1, IEC/EN 61000-3-3 |
| Security DVR | Security DVR |
| Networked | Yes |
| Features | RAID 5 support, RAID 10 support, RAID 0 support, RAID 1 support, RAID 6 support, 240GB SSD OS system drive |
| Hard Drive | Hard Drive |
| Quantity Installed | 6 |
| Quantity Supported | 8 |
| Capacity | 4 TB |
| Video Server | Video Server |
| CPU | Intel Xeon Bronze 3104 |
| RAM | 8 GB |
| Connections | Connections |
| Video Output Ports | VGA x 2 |
| Other Ports | USB 2.0 x 2, serial RS-232 x 1, RJ-45 x 2, USB-C x 1, USB 3.1 x 2, VGA x 2 |
| Power | Power |
| Voltage | 100 - 240 V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 68.1 cm |
| Depth | 48.2 cm |
| Height | 8.7 cm |
| Weight | 20.3 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - AXIS - 01614-001
More Details
Product Code
B093538
EAN Code
7331021065864
Manufacturer
AXIS
