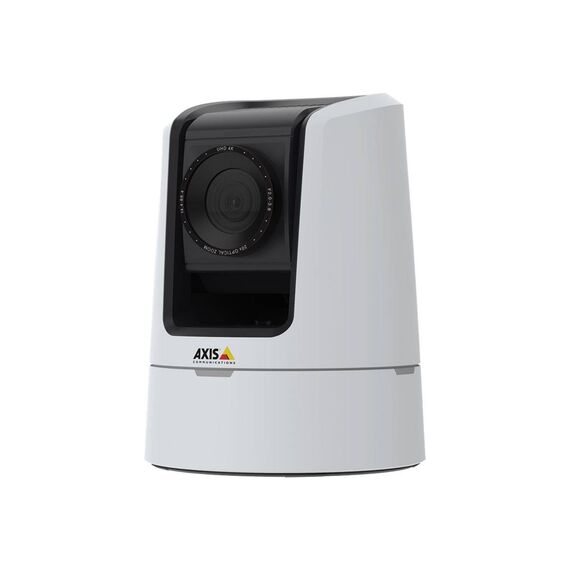

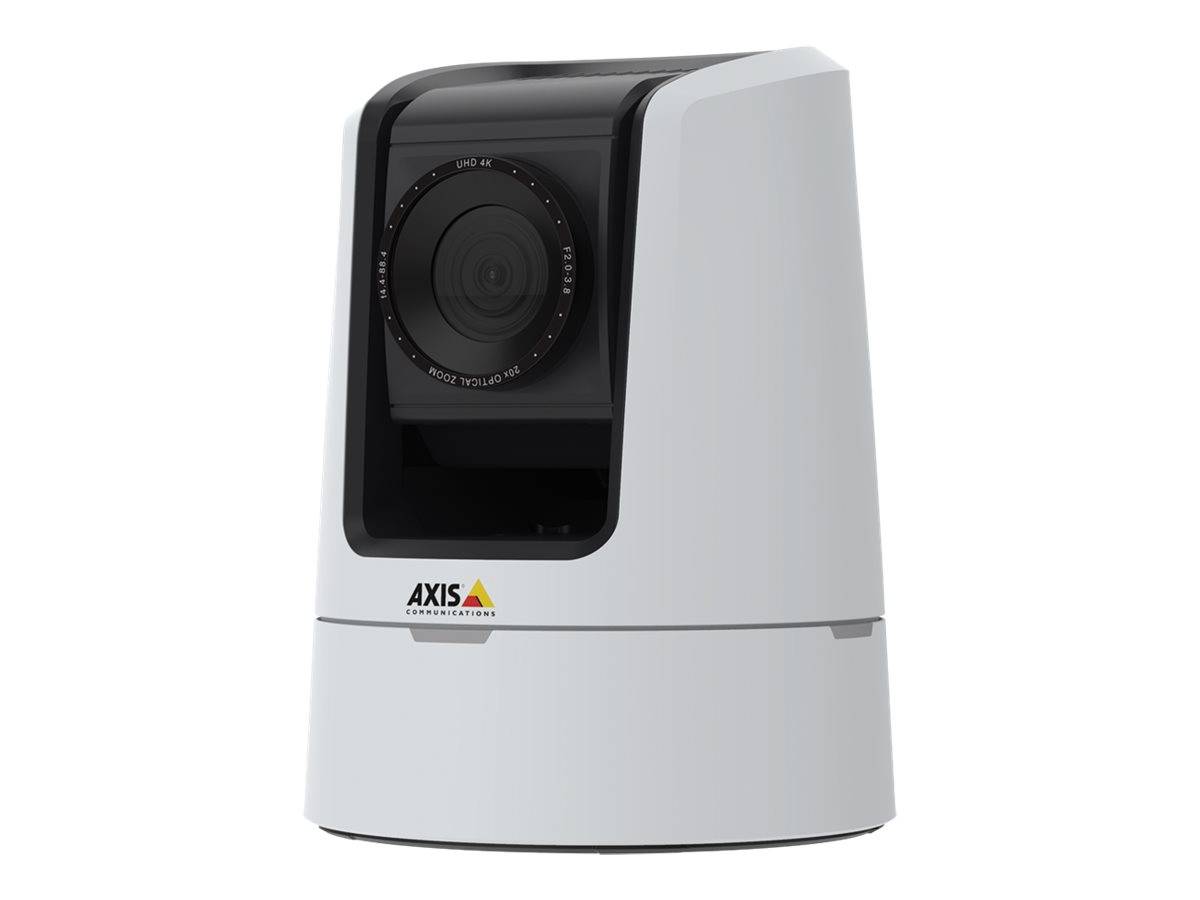

AXIS V5938 50 Hz / Network surveillance camera / PTZ / colour (Day&Night) / 8 MP / 3840 x 2160 / motorized / audio / HDMI, HD-SDI, 3G-SDI / GbE / MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 / DC 11 / 13 V | 02022-003
Please sign in so that we can notify you about a reply
Special Features
- UHD 4K at 30 fps and 20x zoom
- Broadcast-quality audio with XLR inputs
- VISCA and VISCA over IP support
- Camstreamer 3-month trial included
- 3G-SDI and HDMI outputs
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type | Wall mount, ceiling mount |
| Connectivity Technology | Wired |
| Width | 13.6 cm |
| Depth | 13.6 cm |
| Height | 18 cm |
| Weight | 1.5 kg |
| Localisation | United Kingdom |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom |
| Video Format | PAL |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 720p, 1080i, 1080p, 2160p, 4K |
| Digital Zoom | 12 |
| Minimum Illumination | 0.7 lux - colour - F2.0 - 30 IRE ¦ 1 lux - colour - F2.0 - 50 IRE ¦ 0.06 lux - B&W - F2.0 - 30 IRE ¦ 0.1 lux - B&W - F2.0 - 50 IRE |
| Video Capture | 3840 x 2160 @ 25 fps ¦ 1920 x 1080 @ 50 fps ¦ 1280 x 720 @ 50 fps |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Backlight compensation, sharpness control, white balance, progressive scanning, saturation control, brightness control, Wide Dynamic Range (WDR), Video Motion Detector (VMD), Highlight Compensation (HLC), 256 preset positions, Electronic Image Stabilizer (EIS), notification picture to E-mail, notification picture to FTP, password protection, Variable Bitrate (VBR), Audio Detection, noise reduction, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, infrared-cut filter, IP address filtering, auto tracking 2.0, multiple stream encoding, signed firmware, secure boot, Adaptive Bitrate (ABR), day/night threshold, defogging, text overlay, 180° image rotation |
| Image Sensor | Image Sensor |
| Type | 8 MP PS CMOS 1/2.5" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 20 x |
| Focal Length | 4.4 mm - 88.4 mm |
| Lens Iris | F/2.0-3.8 (DC) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 4.1 - 70.2 |
| Vertical Field of View (degree) | 2.3 - 39.5 |
| Panning | Panning |
| Range (degree) | -170 to +170 |
| Speed (degree/sec) | Up to 100 |
| Tilting | Tilting |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 90 |
| Interfaces | Interfaces |
| Video | HDMI, HD-SDI, 3G-SDI |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, EAP, SFTP, SIP, LLDP, MQTT |
| Control Interface | RS-232, VISCA |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN - RJ-45 ¦ 3G-SDI output - BNC ¦ HDMI output ¦ Audio line-in/microphone - 3 pin XLR x 2 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ Serial RS-232 (Visca) |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Ceiling mount kits, wall mount kit, terminal block connectors |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, VCCI Class A, RCM, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEEE 802.1x, CAD ICES-3(A)/NMB3(A), NIST SP500-267 |
| Colour | White |
| Power | Power |
| Power Requirements | DC 11 - 13 V |
| Power Device | Power adapter - external 17.5 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence, Camstreamer (3 months trial) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
Features - AXIS - 02022-003
More Details
Product Code
CA89380
EAN Code
7331021070875
Manufacturer
AXIS
