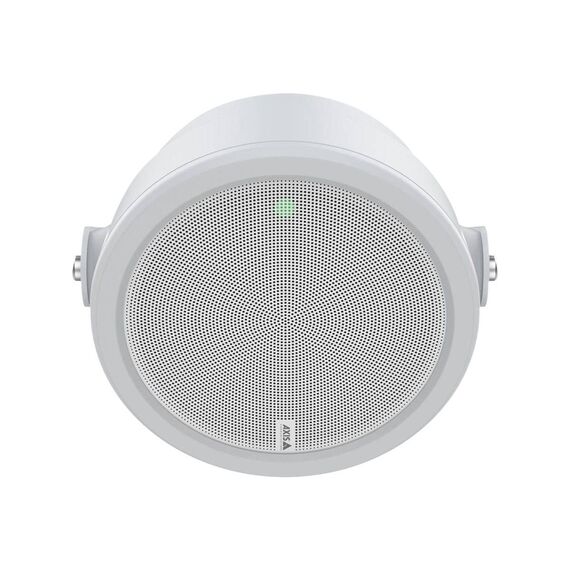

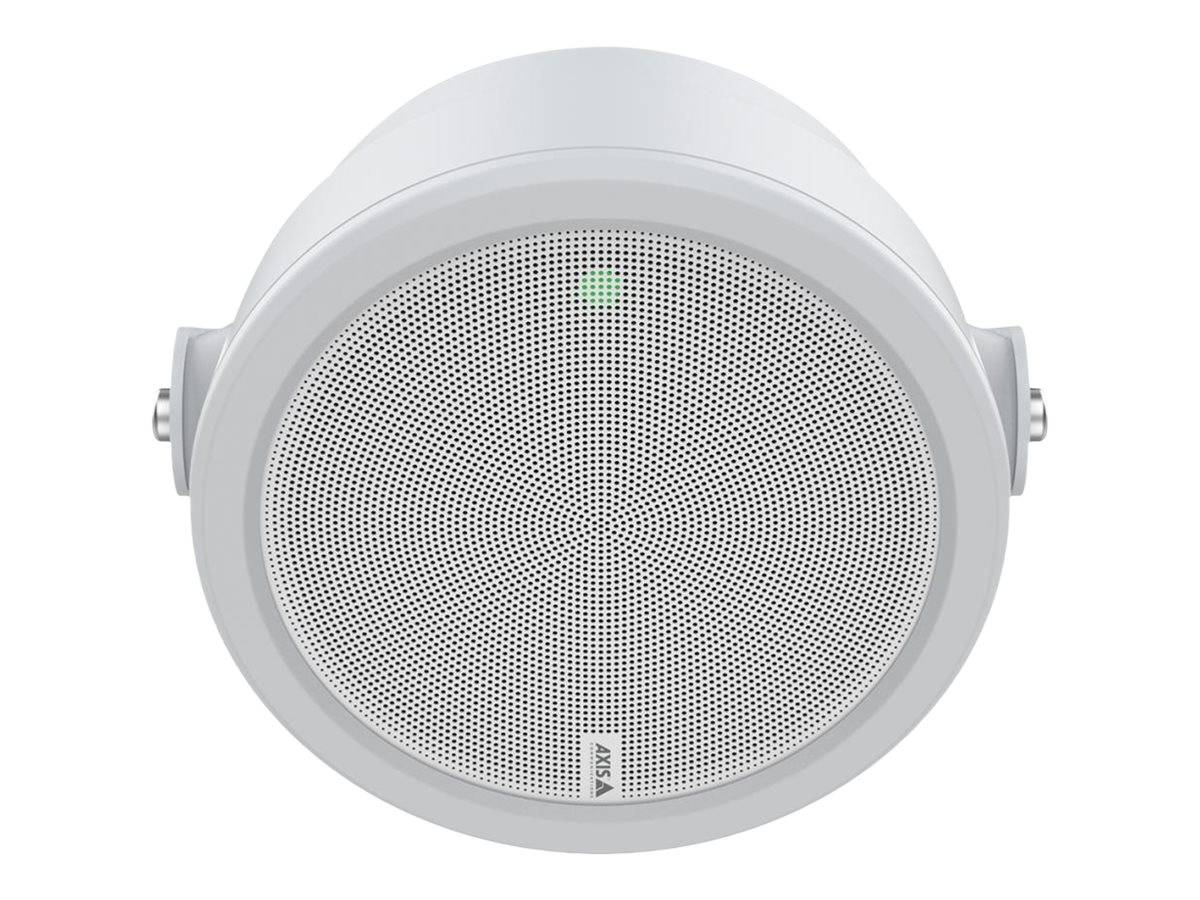

Axis C1610-VE / Sound projector / PoE, PoE-Plus / App-controlled | 02380-001
Product Features
- Looks and sounds great - anywhere
AXIS C1610-VE is proof that tough can look good. Built to withstand temperatures ranging from -40 to +55°C, this network speaker offers clear, dependable voice messages outdoors or indoors. It comes ready for wall, pole, or ceiling mounting, and its IK10-rated vandal-resistant housing offers you peace of mind at any installation height. Furthermore, with a sleek, minimalistic look suited to any facade. - Smart - and easy
This all-in-one unit connects to the standard network, making it part of a flexible, scalable, and cost-effective solution. It's preconfigured for excellent sound using a digital signal processor (DSP), and it's packed with smart features, including a built-in microphone for remote health testing and two-way audio communication, I/O ports for integration with additional systems and devices, and an integrated LED for a visual status confirmation. Scheduling, zoning, prioritization, user permissions - it's all available wherever you are. - Multiple uses, singular performance
As an alternative to the horn speaker, the sound projector offers natural, rich sound, making it an excellent option for all your voice messaging needs - and even for playing background music. High-quality audio means you can use it confidently as part of your security, operational, and safety solutions. Additionally, you can schedule prerecorded announcements, broadcast live speak, or integrate it with other network devices - such as cameras paired with analytics - so that specific events trigger relevant messages.
Special Features
- Sleek, vandal-resistant design
- All-in-one, outdoor-ready speaker system
- Connects to standard network
- Simple installation with PoE
- Remote health testing
Product Specification
Product Type | Sound projector |
Features | DSP, AXIS Audio Manager Edge, 2-way audio talkback |
Integrated Memory | Flash - 512 MB |
Microphone | Yes |
Protection | Vandal-resistant |
Enclosure Material | Aluminium |
Speaker System | Speaker System |
Speaker Type | Active |
Frequency Response | 200 - 16000 Hz |
Max Output Level (Max SPL) | 106 dB |
Maximum Sampling Rate Supported | 48 kHz |
Amplifier | Integrated |
Amplifier Class | D |
Amplifier Output Power | 7W |
Coverage | 130° |
Interfaces | IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
VoIP Protocols | SIP, SRTP, SIP over TLS, SIPS |
Voice Codecs | Speex, Opus, L16, PCMA, PCMU, G.726-32 |
Network Protocols | TCP, UDP, ICMP, ARP, HTTP, DNS, SNMP, HTTPS, NTP, UPnP, SSH, FTP, SSL, TLS, IPv6, IPv4, CIFS, SMB, SMTP, DynDNS, IGMP, DHCP, SOCKS, SIP |
Recommended Placing | Indoor / Outdoor |
Audio Formats | WAV, G.726, MP3, ADPCM, AAC-LC, G.711 |
App-Controlled | Yes |
Connections | Connections |
Connector Type | LAN (RJ-45) ¦ (4 pin terminal block) |
Miscellaneous | Miscellaneous |
Included Accessories | AVHS authentication key, AXIS Camera Station licence key, cable shoe, AXIS Connector Guard A |
Compliant Standards | EN55024, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class B, MIL-STD 810G 509.5, EN 55032 Class B, AS/NZS CISPR 32 Class B, NEMA250 Type 4X, KCC KN32 Class B, IEC/EN/UL 60950-22, KCC KN35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, FCC Part 15 Subpart B Class B, ICES-3(B)/NMB-3(B) |
Power | Power |
Power Source | Power over Ethernet (PoE) |
Dimensions & Weight | Dimensions & Weight |
Diameter | 20.3 cm |
Height | 10.5 cm |
Weight | 4.1 kg |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 55 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 65 °C |
Humidity Range Operating | 10 - 100% RH (condensing) |
Humidity Range Storage | 5 - 95% RH (non-condensing) |
