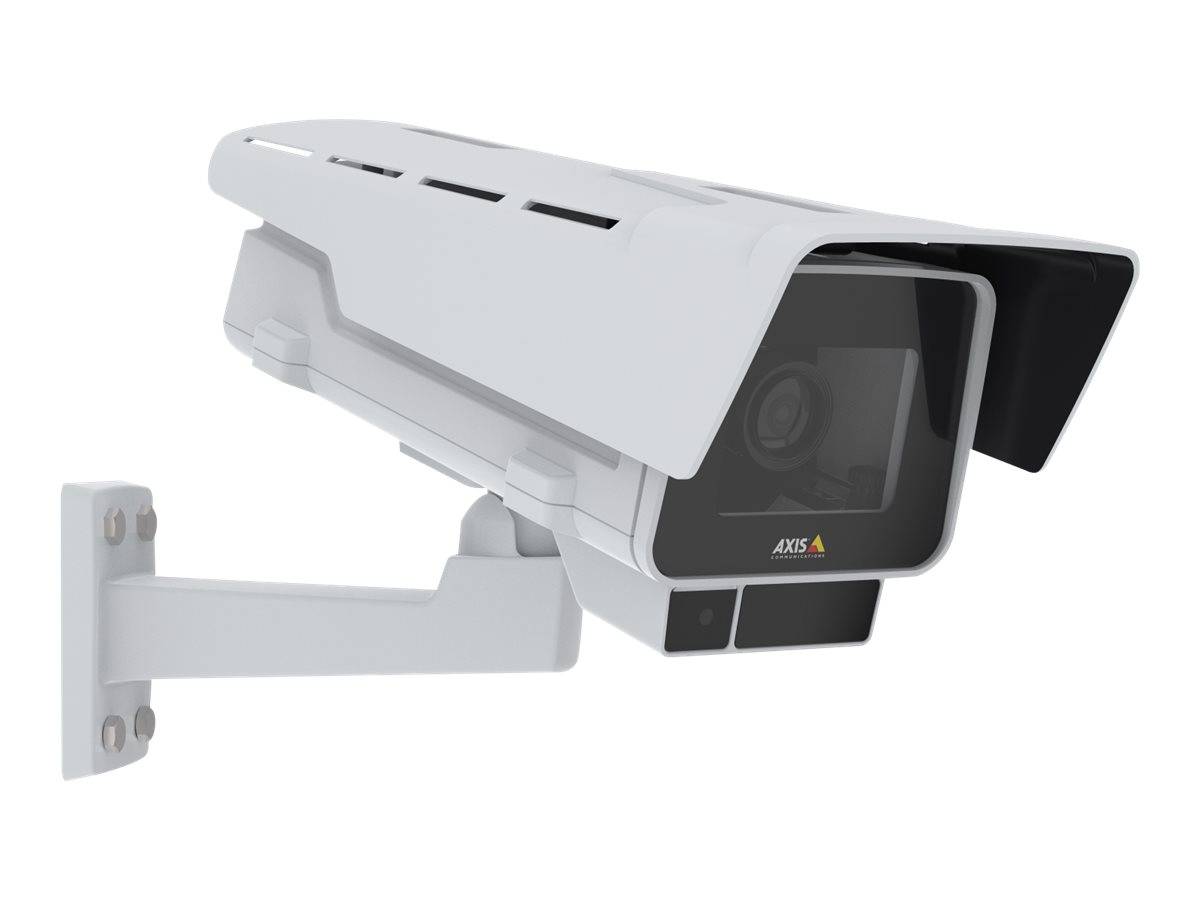

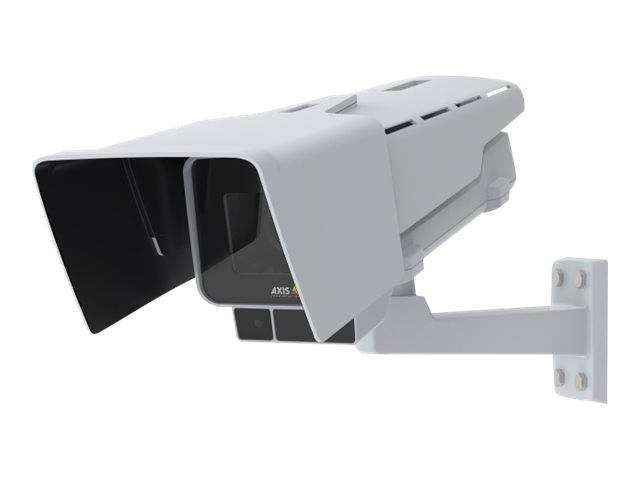

AXIS P1378-LE Network Camera / Network surveillance camera / outdoor / colour (Day&Night) / 3840 x 2160 / 4K / CS-mount / auto iris / vari-focal / audio / GbE / MJPEG, H.264, HEVC, H.265, MPEG-4 AVC / DC 12 / 28 V / PoE+ | 01811-001
01811-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- No detail too small
With excellent resolution, AXIS P1378-LE captures detailed images of fast-moving objects and people. Thanks to support for H.264/H.265, the camera provides exceptional savings on bandwidth and storage requirements without compromising image quality. It offers scene profiles, corridor format and electronic image stabilization for stable images in situations where the camera is subject to vibrations. - Light up the night
AXIS P1378-LE delivers excellent image quality regardless of the light conditions. It's designed to be reliable under rough conditions and can withstand extreme temperatures. The casing protects against water, corrosion and dust. Plus, there's a video streaming indicator making it easy to check that the video is up and running. - Keeping you secure
AXIS P1378-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default.
Special Features
- Signed firmware and secure boot
- Electronic image stabilization
- Zipstream supporting H.264 and H.265
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 40.4 cm |
| Depth | 15.9 cm |
| Height | 16.8 cm |
| Weight | 2.4 kg |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor |
| Digital Video Format | MJPEG, H.264, HEVC, H.265, MPEG-4 AVC |
| Max Digital Video Resolution | 3840 x 2160 |
| Motion Detection | Yes |
| Video Modes | 4K |
| Exposure Range | 1/5 sec - 1/8500 sec |
| Minimum Illumination | 0.15 lux - colour - F1.5 - 50 IRE ¦ 0.03 lux - B&W - F1.5 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 50 m |
| Digital Video Capture Resolution | 3840 x 2160, 160 x 90 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Privacy Mask Function, full duplex audio, Lightfinder technology, active tampering alarm, digital PTZ function, Event Notification, password protection, distortion correction function, shock detection, IR Corrected lens, Audio Detection, OptimizedIR, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, exposure control, infrared-cut filter, Forensic WDR, IP address filtering, electronic image stabilisation, auto defogging, secure boot, ONVIF (Profile T) support |
| Image Sensor | Image Sensor |
| Type | CMOS 1/2" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 2.6 x |
| Focal Length | 3.9 mm - 10 mm |
| Lens Iris | F/1.5 auto iris (P-Iris) |
| Horizontal Field of View (degree) | 45 - 115 |
| Vertical Field of View (degree) | 25 - 61 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, EAP, SFTP, USGv6 |
| Control Interface | RS-485, RS-422 |
| Alarm Inputs Qty | 2 |
| Alarm Outputs Qty | 2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mount bracket, sunshield, connector kit, IK10 tool, Torx T20 screw driver, Torx T30 screw bit |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-6, IP67, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, EN 60529, IEC 62471, IEC 60529, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, IEEE 802.3af, IEEE 802.3at, IEC/EN 62262, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, NIST SP500-267 |
| Colour | White |
| Power | Power |
| Power Requirements | DC 12 - 28 V / PoE+ |
| Power Device | 20.7 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% |
Features - AXIS - 01811-001
More Details
Product Code
07:452096
EAN Code
7331021068124
Manufacturer
AXIS
