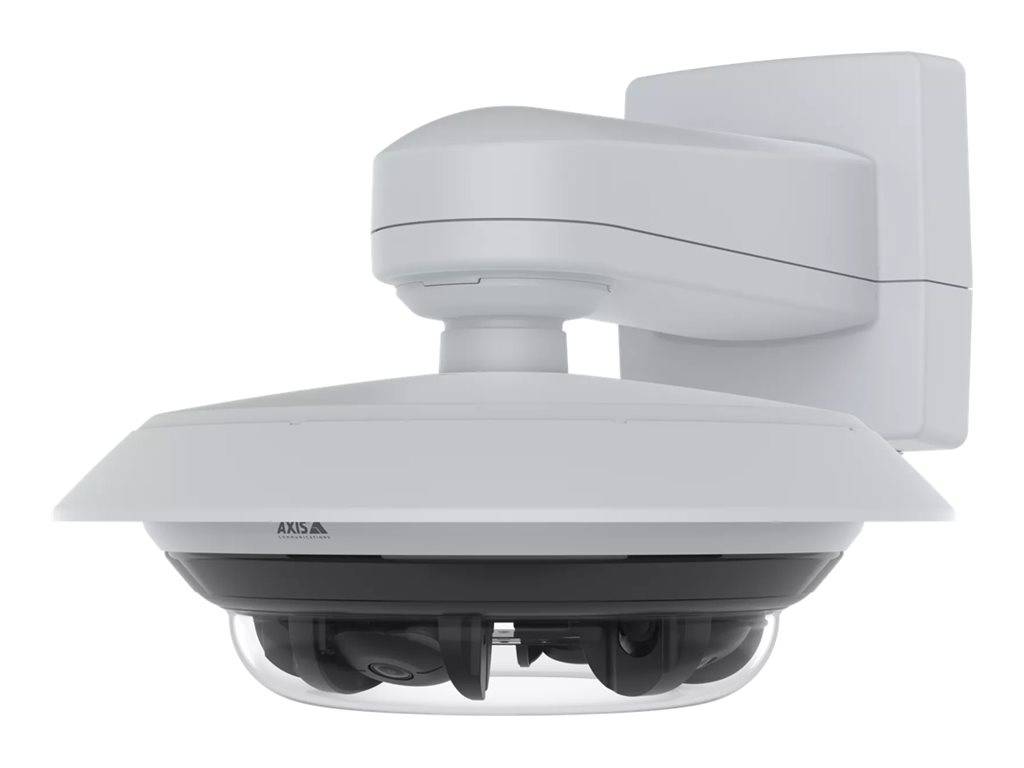

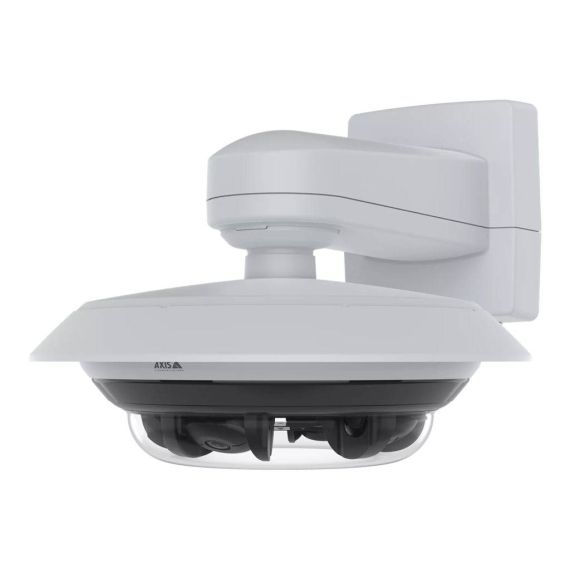

AXIS P37 Series P3747-PLVE / Network panoramic camera / multi-sensor / dome / outdoor / vandal / weatherproof / colour (Day&Night) / 4 x 5 MP / 2592 x 1944 / M20 mount / fixed iris / vari-focal / GbE / H.264, H.265, MJPEG, MPEG-4 Part 10, MPE | 02897-001
AXIS P37 Series P3747-PLVE / Network panoramic camera / multi-sensor / dome / outdoor / vandal / weatherproof / colour (Day&Night) / 4 x 5 MP / 2592 x 1944 / M20 mount / fixed iris / vari-focal / GbE / H.264, H.265, MJPEG, MPEG-4 Part 10, MPE | 02897-001
€3219.56 inc. VAT
02897-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust temperature tolerance
Designed to function in extreme conditions, the AXIS P3747-PLVE operates within a wide temperature range, from -40°C to 50°C, making it suitable for outdoor installations. - High-definition video resolution
This surveillance camera supports a maximum digital video resolution of 2592 x 1944, delivering clear and detailed footage for improved monitoring in varying conditions. - Comprehensive compliance standards
The AXIS P3747-PLVE adheres to compliance standards including RoHS, FCC, and IEC 60068, ensuring reliability and safety across various markets. - Advanced multi-channel design
Featuring a multi-sensor configuration, this camera captures multiple perspectives simultaneously, enhancing coverage and reducing blind spots. - Enhanced connectivity options
Equipped with a range of network protocols, including HTTPS and IPv6, the camera ensures secure and flexible connectivity for integration into existing systems.
Special Features
- Operating temperature range from -40°C to 50°C
- Supports multiple video formats including H.265 and HEVC
- Equipped with infrared LEDs for low-light performance
- Vandal- and weatherproof with IK10 and IP66 ratings
- Two-way audio capability for interactive surveillance
Product Specification
| Device Type | Network panoramic camera |
| Audio Support | Two-way audio capability, speaker pairing |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Weight | 3 kg |
| Localisation | Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States |
| Camera | Camera |
| Type | Colour - Day&Night - multi-sensor - outdoor - vandal / weatherproof |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-4 Part 10, MPEG-H Part 2, AVC, HEVC |
| Max Digital Video Resolution | 2592 x 1944 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/19500 sec |
| Minimum Illumination | 0.15 lux - colour - F1.6 - 50 IRE 0 lux - B&W - F1.6 - 50 IRE |
| Infrared LEDs | Yes |
| Digital Video Capture Resolution | 2592 x 1944, 640 x 480 |
| Frame Rate (max) | 30 frames per second |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Features | Remote zoom, remote focus, infrared-cut filter, deep learning processing unit (DLPU), Zipstream technology, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), saturation control, contrast control, brightness control, sharpness control, white balance, day/night threshold, local contrast control, tone mapping, exposure mode, exposure zone, barrel distortion correction, compression, text overlay, image overlay, dynamic text overlay, Privacy Mask Function, polygon privacy mask, Forensic WDR, Lightfighter technology, OptimizedIR, Pixel Counter Support, level grid, human classification, vehicle classification, Line Crossing Detection, object in area, time in area, crossing counter, occupancy counting, licence plate detection, ONVIF support, perspective configuration, Face Capture, vehicle colour recognition, clothes colour detection, IR Corrected lens |
| Image Sensor | Image Sensor |
| Type | 4 x 5 MP PS RGB CMOS 4 x 1/2.78" |
| Lens Construction | Lens Construction |
| Type | M20 mount - vari-focal |
| Focal Length | 3.18 mm - 7.42 mm |
| Lens Iris | F/1.6-2.7 fixed iris |
| Min Focus Distance | 1.5 m |
| Horizontal Field of View (degree) | 40 - 90 |
| Vertical Field of View (degree) | 30 - 71.5 |
| Panning | Panning |
| Range (degree) | -180 to +180 |
| Tilting | Tilting |
| Range (degree) | -23 to 150 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | EAP-TLS, FIPS 140-2 Level 2, 256-bit AES-XTS, TLS 1.2, TLS 1.3 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Connector guard, cable gaskets, mount plate, dome cover |
| TAA Compliant | Yes |
| Compliant Standards | IEEE 802.1ar, IEEE 802.1x, IEEE 802.1ae, EN 50121-4, EN 61000-6-1, EN 61000-6-2, AS/NZ CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B, CNS 15936, IEC 62236-4, CAN/CSA-C22.2 No. 62368-1-14 Third Edition, IEC/EN/UL 62368-1 Third Edition, IEC/EN 62471, AS/NZS 62368.1:2022, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IEC/EN 62262, IK10, MIL-STD-810H, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), UL/cUL, FCC, ICES, KC, VCCI, RCM, BSMI, BFR, CFR free, JEDEC, ECA, JS709, RoHS, EU RoHS, Directive 2011/65/EU, Directive 2015/863, EN IEC 6300:2018, REACH 1907/2006/CE |
| Colour | White, NCS S 1002-B |
| Power | Power |
| Power Requirements | PoE Plus Class 4 |
| Power Device | 23.7 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Object Analytics, AXIS Video Motion Detection, AXIS Scene Metadata |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 02897-001
More Details
Product Code
CN63093
EAN Code
7331021086135
Manufacturer
AXIS
