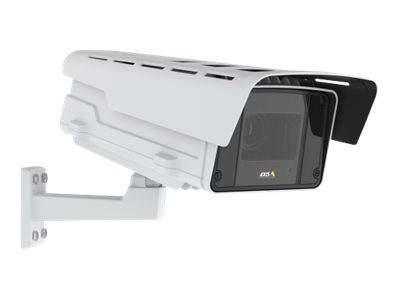

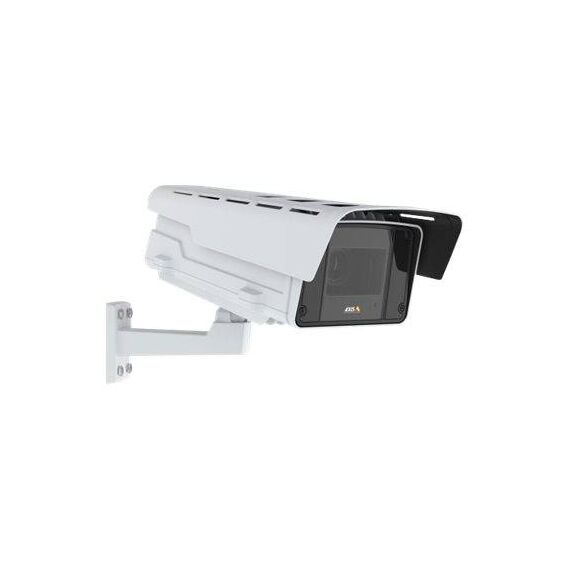

AXIS Q1615-LE Mk III / Network surveillance camera / outdoor / vandal / weatherproof / colour (Day&Night) / 1920 x 1080 / 1080p / CS-mount / vari-focal / audio / LAN 10/100 / MJPEG, H.264 / PoE Plus | 02064-001
AXIS Q1615-LE Mk III / Network surveillance camera / outdoor / vandal / weatherproof / colour (Day&Night) / 1920 x 1080 / 1080p / CS-mount / vari-focal / audio / LAN 10/100 / MJPEG, H.264 / PoE Plus | 02064-001
€2206.11 inc. VAT
02064-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Protecting your system
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, there's a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach. - More opportunities with deep learning
AXIS Q1615-LE Mk III is a perfect platform for tailor-made third-party applications based on deep learning on the edge. With the proprietary Axis ARTPEC chip and a deep-learning processing unit (DLPU), this dual chipset allows analytics to run directly on AXIS Q1615-LE Mk III (on the edge), resulting in a faster and more scalable system and facilitating complex and powerful analytics. Edge-based automatic incident detection, counting and anomaly detection are just a few of the many option.
Special Features
- Lightfinder 2.0 and Forensic WDR
- TPM, FIPS 140-2 level 2 certified
- Embedded deep learning processing unit
- Support for third-party deep learning applications
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Width | 20.1 cm |
| Depth | 17.9 cm |
| Height | 49.4 cm |
| Weight | 6.965 kg |
| Localisation | Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Exposure Range | 2 sec - 1/125000 sec |
| Minimum Illumination | 0.05 lux - colour - F1.2 - 50 IRE - Forensic WDR and Lightfinder ¦ 0.01 lux - B&W - F1.2 - 50 IRE - Forensic WDR and Lightfinder ¦ 0.1 lux - colour - F1.2 - 50 IRE - Lightfinder ¦ 0.02 lux - B&W - F1.2 - 50 IRE - Lightfinder ¦ 0.2 lux - colour - F1.2 - 50 IRE - infrared LEDs on ¦ 0.04 lux - B&W - F1.2 - 50 IRE - infrared LEDs on |
| Video Capture | 1920 x 1080 @ 120 fps |
| RAM | 2 GB |
| Flash Memory | 1 GB |
| Features | Sharpness control, colour control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Electronic Image Stabilizer (EIS), text stamp, multi-streaming, Lightfinder technology, digital PTZ function, password protection, microSD/SDHC/SDXC Memory Card slot, Variable Bitrate (VBR), Forensic Capture (120 dB), Zipstream technology, ONVIF (Profile S) support |
| Image Sensor | Image Sensor |
| Type | RGB CMOS 1/2.8" |
| Lens Construction | Lens Construction |
| Type | CS-mount - vari-focal |
| Optical Zoom | 3 x |
| Focal Length | 2.8 mm - 8.5 mm |
| Lens Iris | F/1.2 |
| Focus Adjustment | Motorised |
| Horizontal Field of View (degree) | 40 - 102 |
| Vertical Field of View (degree) | 22 - 58 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
| Control Interface | RS-485, RS-422 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line in - 3.5 mm jack ¦ 2 x serial RS-485/RS-422 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Sunshield, Resistorx T20 tool, connector kit, AXIS T94Q01A Wall Mount |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, AS/NZS, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IEC 62471, NEMA250 Type 4X, EN 55032 Class A, IEC/EN/UL 60950-22, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67 |
| Colour | White |
| Power | Power |
| Power Requirements | PoE Plus |
| Power Device | 25.5 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Windows decoder 1-user licence |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% |
Features - AXIS - 02064-001
More Details
Product Code
07:452840
EAN Code
7331021071797
Manufacturer
AXIS
