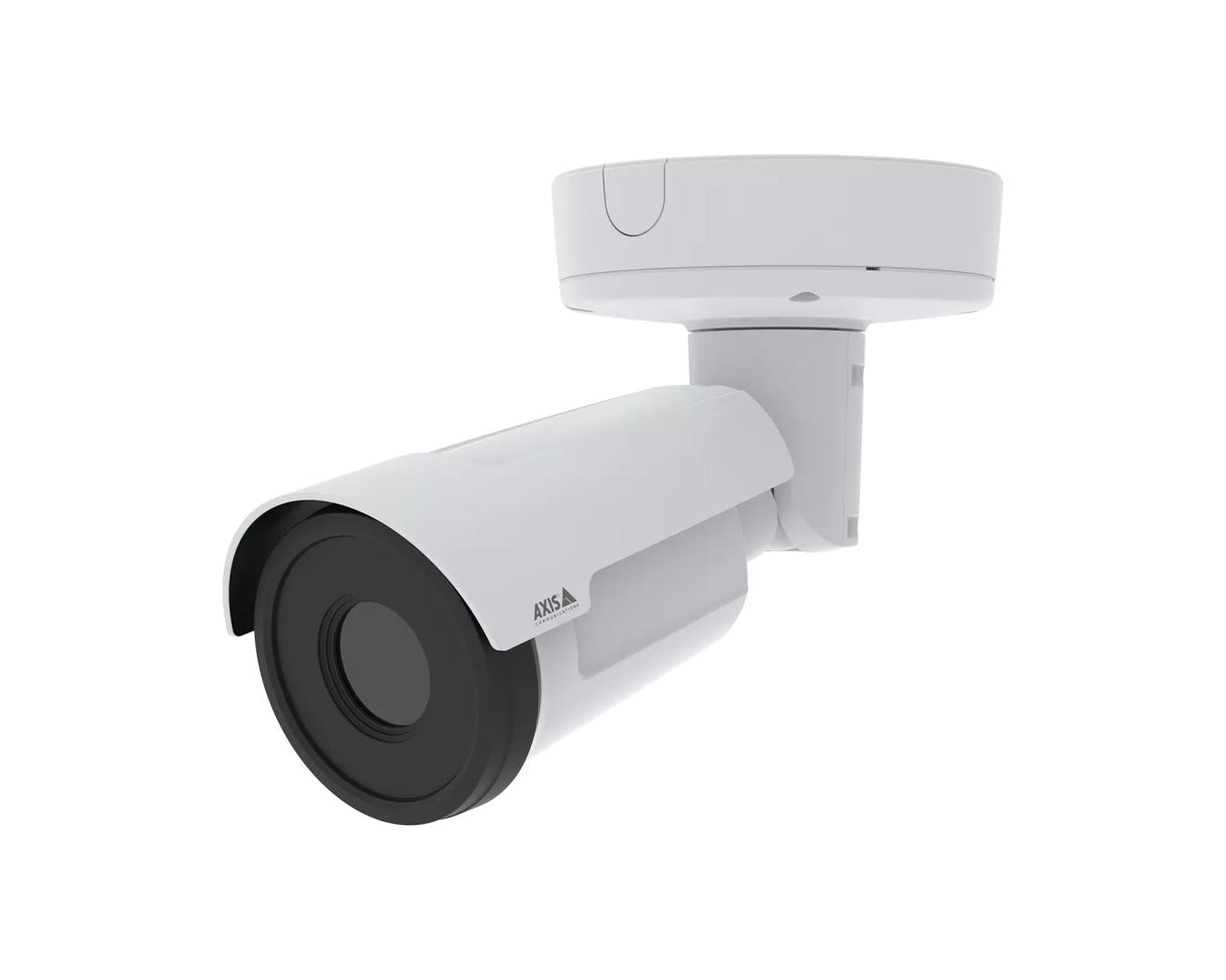

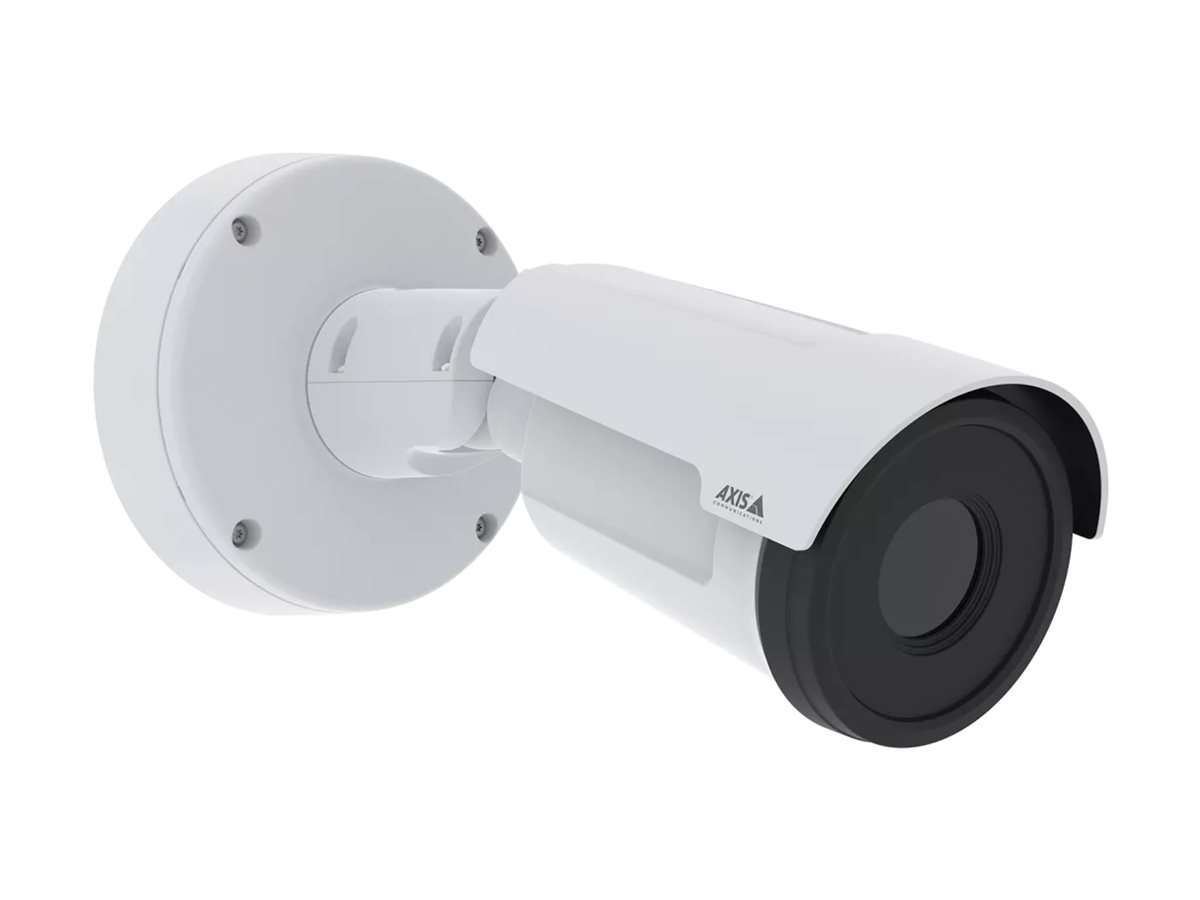

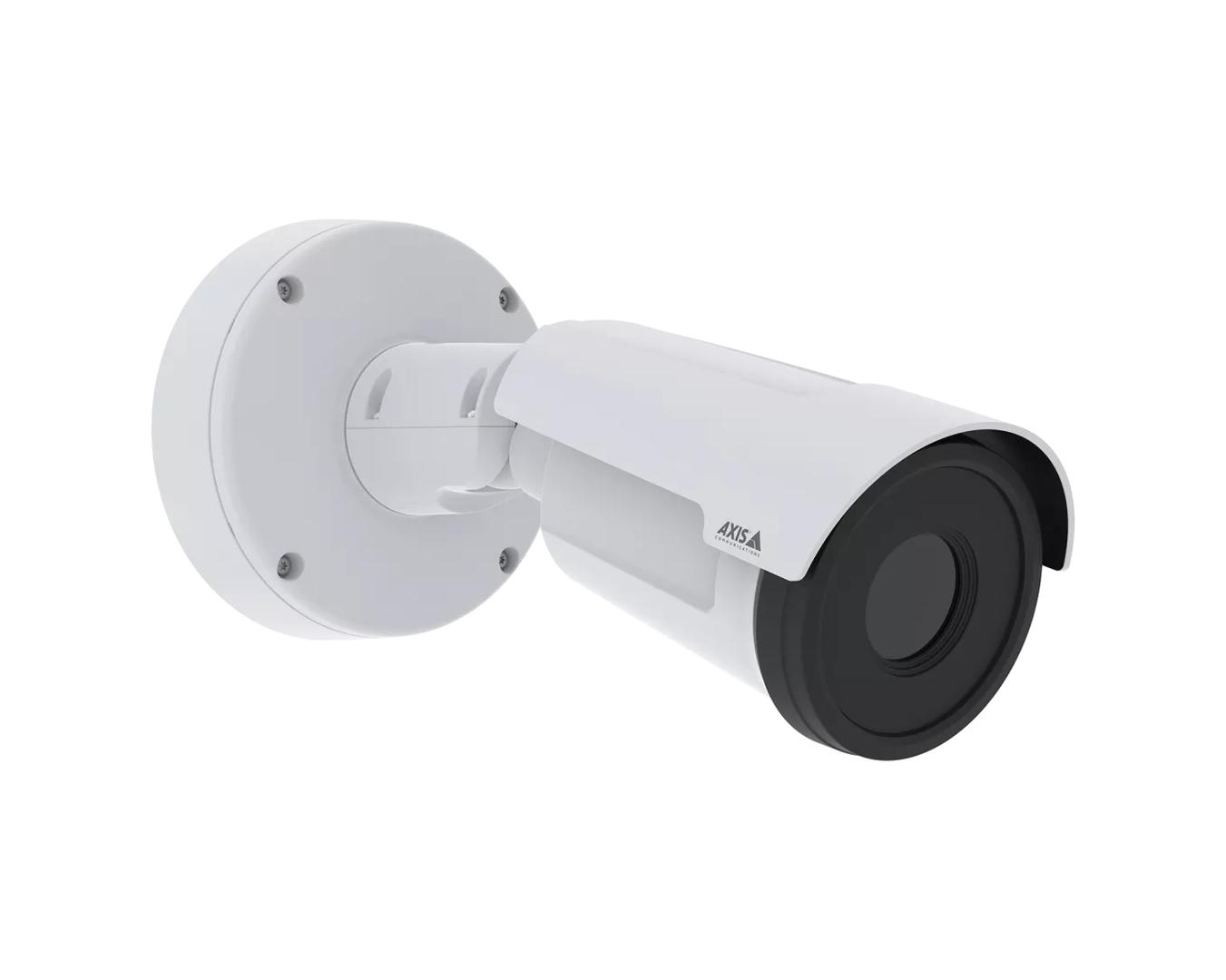

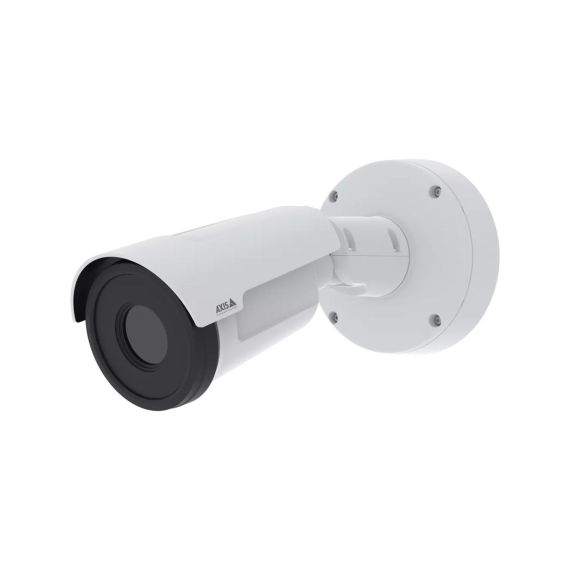

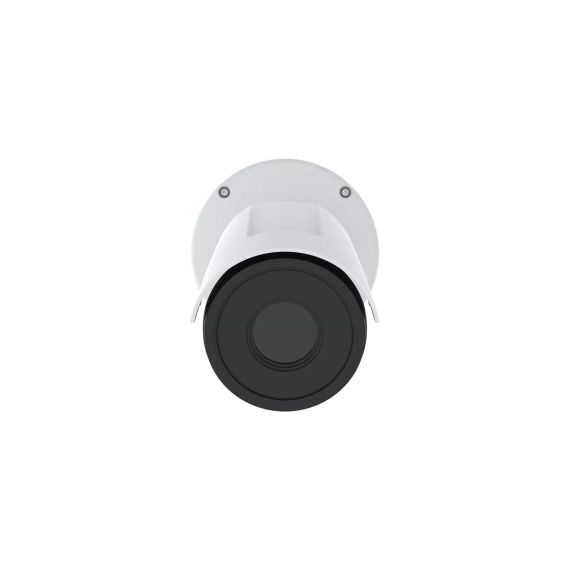

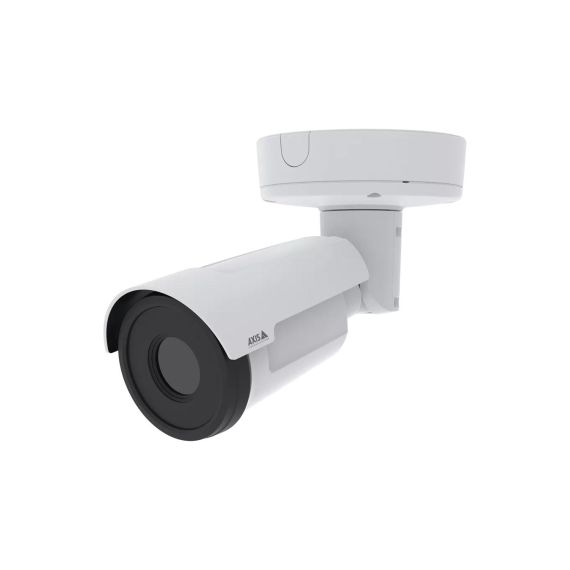

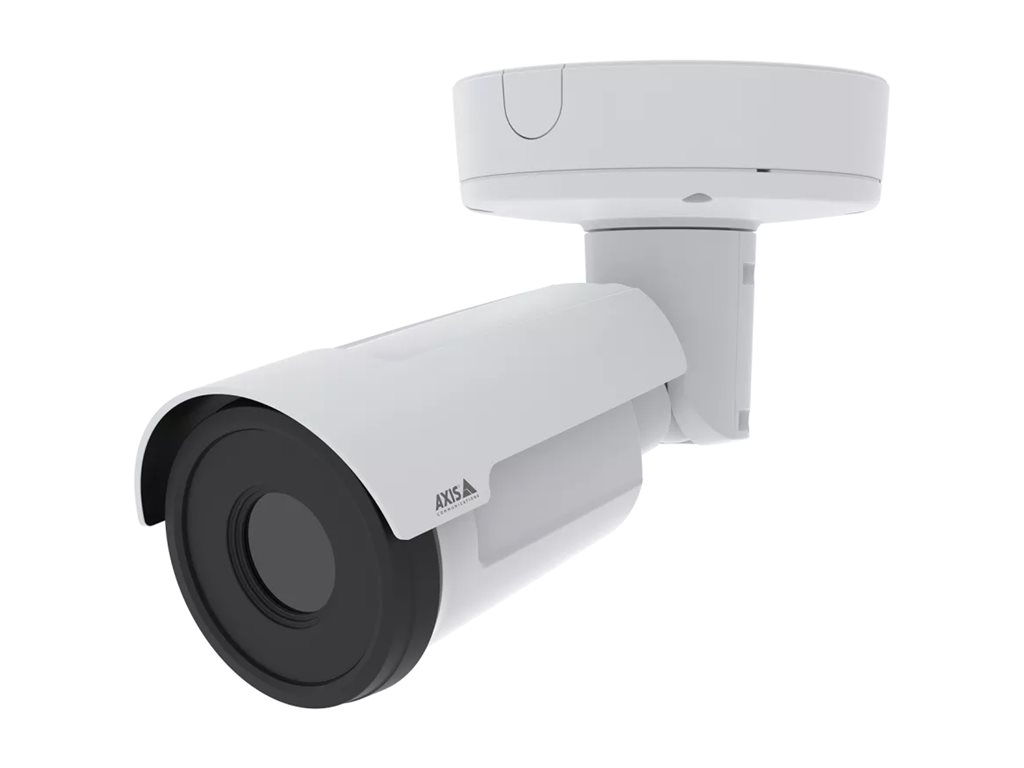

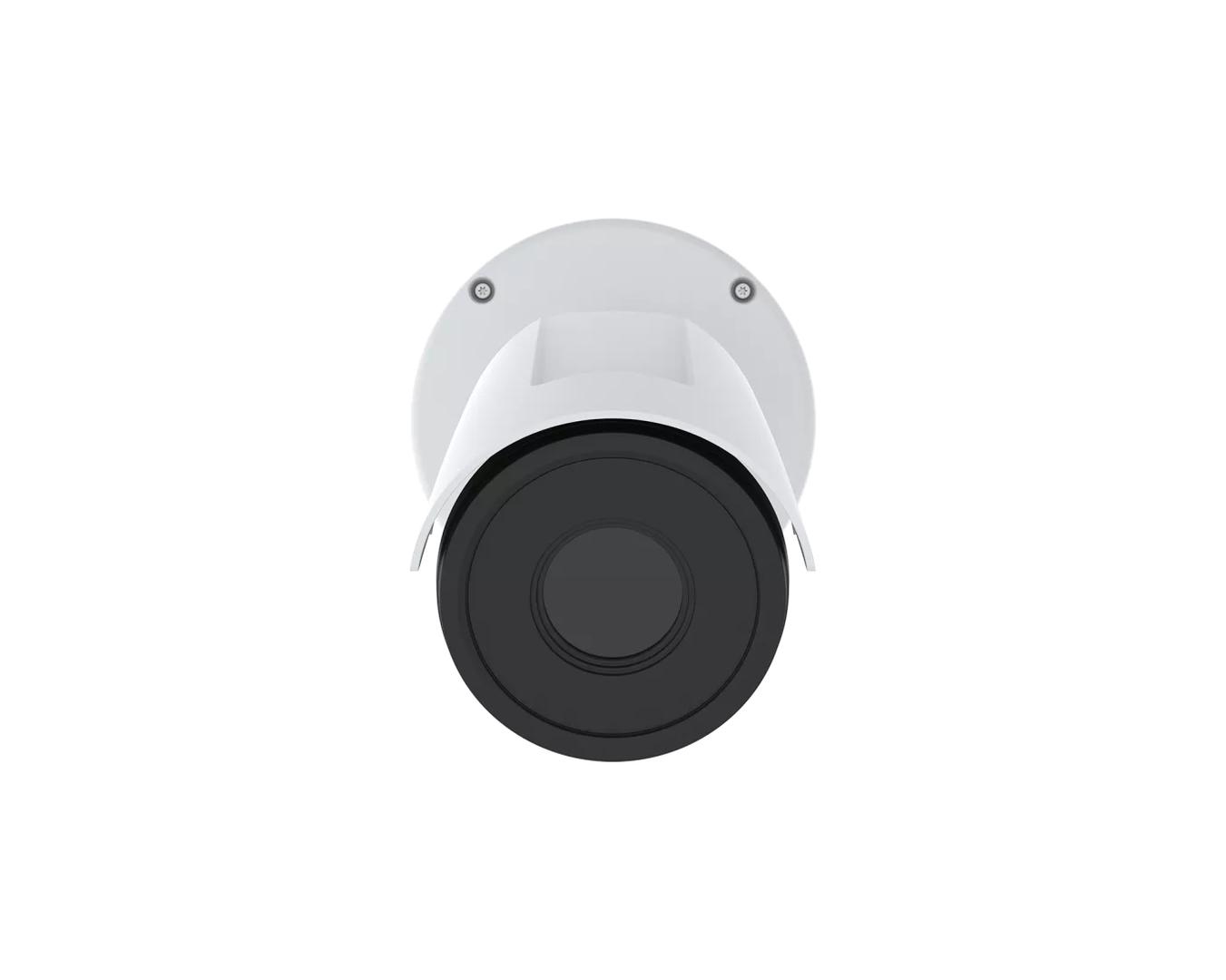

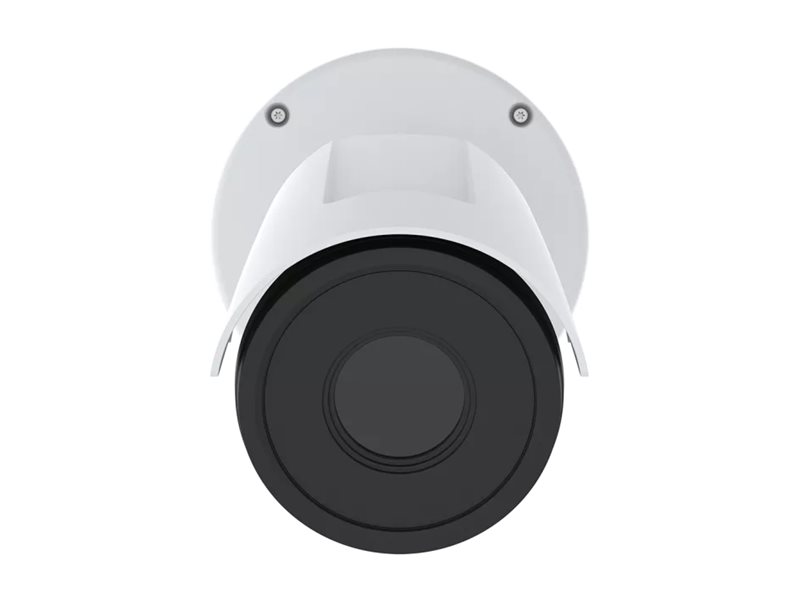

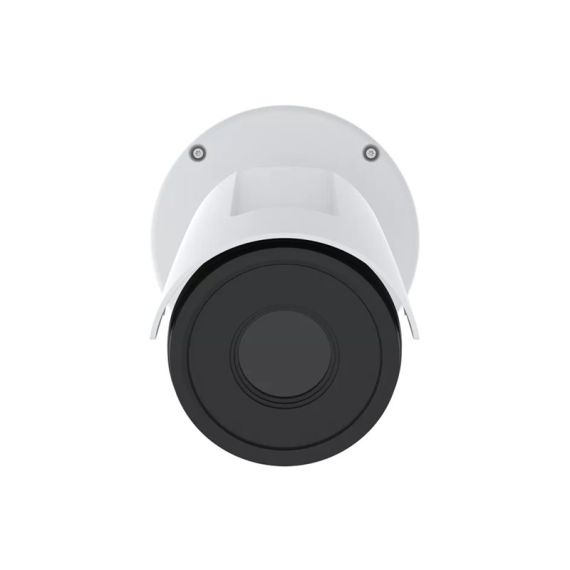

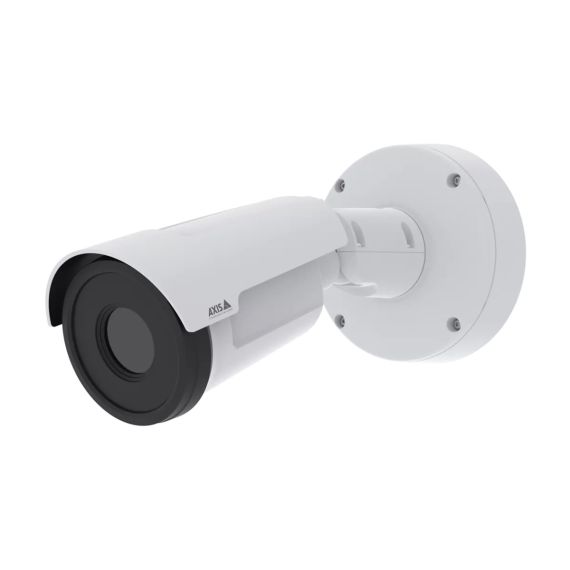

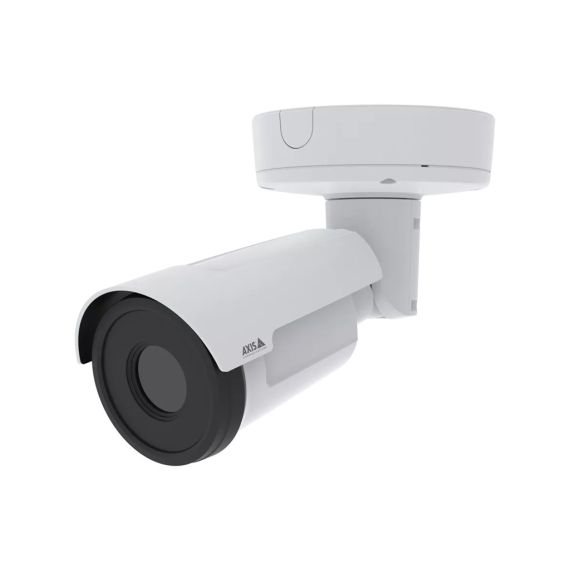

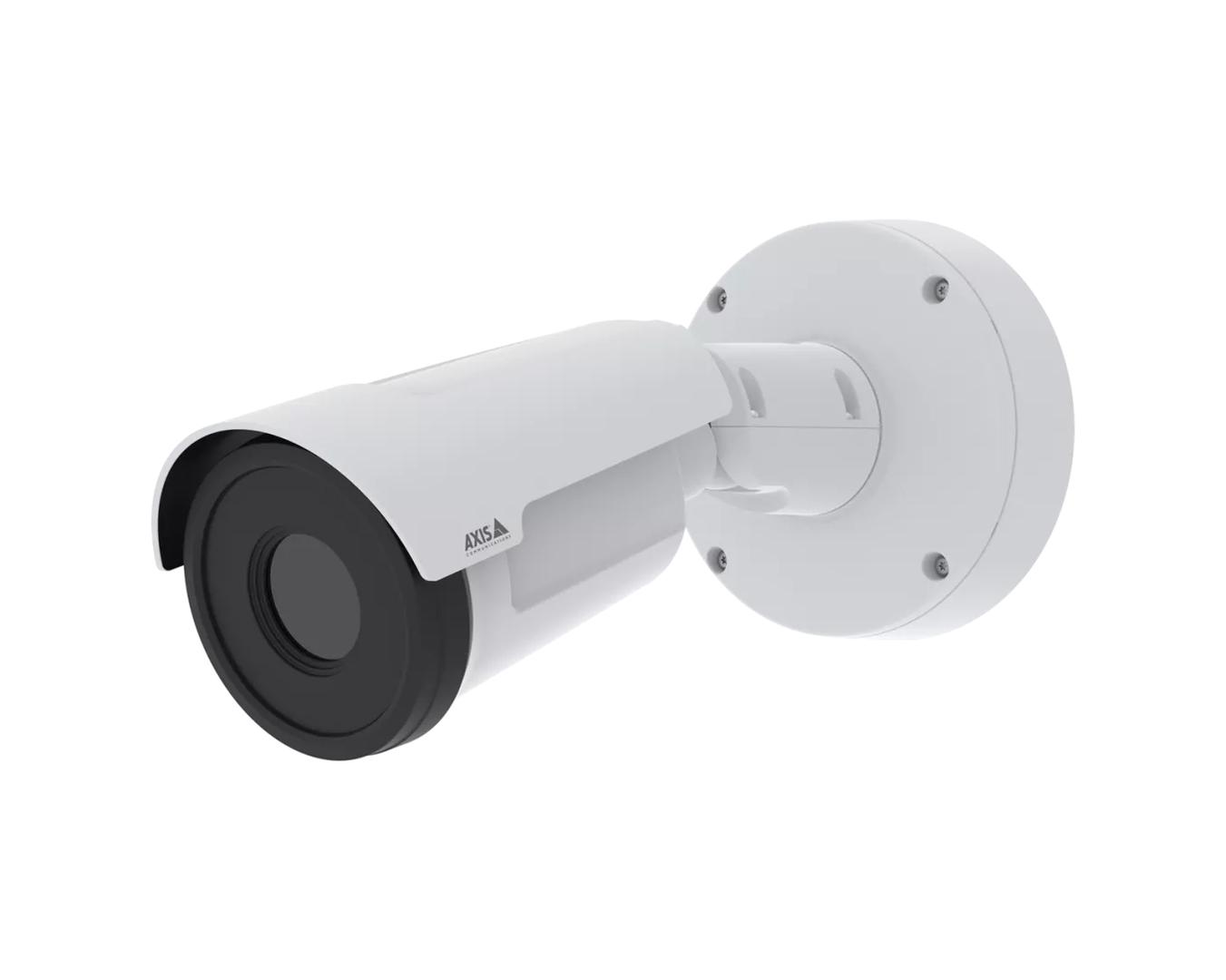

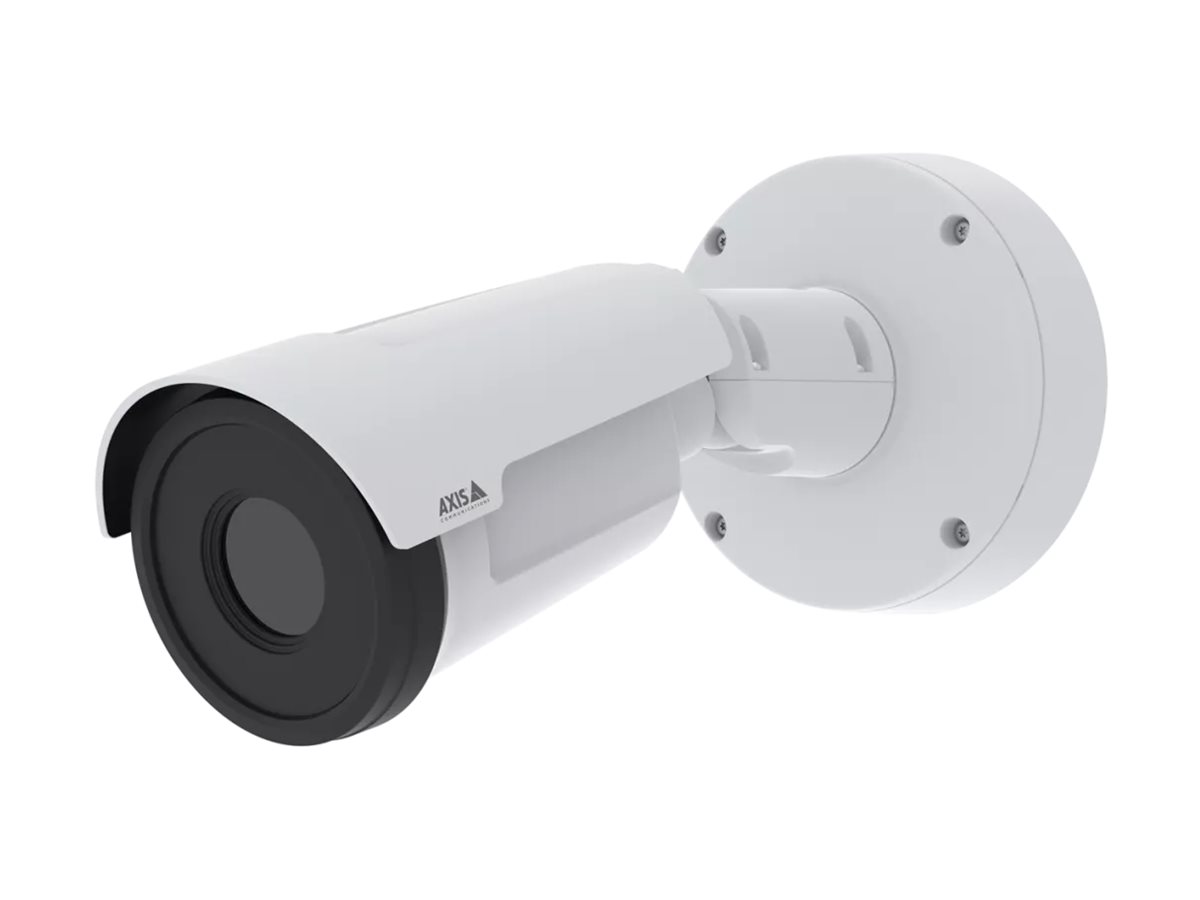

AXIS Q19 Series Q1972-E / Thermal network camera / bullet / outdoor / weather resistant / impact resistant / 800 x 600 / fixed focal / audio / GbE / H.264, MJPEG, H.265, AVC, HEVC / DC 12 / 28 V / PoE Class 3 / TAA Compliant | 03033-001
03033-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust environmental protection
The AXIS Q1972-E is designed to withstand weather and impact, complying with IK10 and IP67 standards, ensuring reliable performance in challenging outdoor conditions. - Flexible connectivity options
Equipped with audio line-in and microphone options along with LAN connectivity, this camera offers versatile integration for various surveillance systems. - Advanced imaging capabilities
Features like electronic image stabilization, variable bitrate, and various image control options enhance the camera's ability to deliver video quality. - Easy memory expansion
Supports microSD, microSDHC, and microSDXC cards, allowing for flexible memory expansion and local video storage options. - Secure data encryption
Incorporates advanced encryption algorithms such as TLS 1.2 and TLS 1.3, ensuring secure data transmission and protecting sensitive information.
Special Fetures
- Operates in extreme temperatures from -40 °C to 60 °C
- Two-way audio capabilities for interactive monitoring
- Durable design compliant with various standards for outdoor use
- Integrated thermal imaging for early warning fire prevention
- Supports multiple video formats for high-quality capture
Product Specification
| Device Type | Thermal network camera |
| Audio Support | Yes: 10-band graphic equaliser, two-way audio via edge-to-edge technology |
| Audio Formats | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 9.5 cm |
| Depth | 27.2 cm |
| Height | 9.5 cm |
| Weight | 1.4 kg |
| Localisation | Argentina, Australia, Brazil, China, European Union, Japan, Korea, United Kingdom, United States |
| Camera | |
| Type | - fixed - outdoor - weather resistant / impact resistant |
| Digital Video Format | H.264, MJPEG, H.265, AVC, HEVC |
| Max Digital Video Resolution | 800 x 600 |
| Motion Detection | Yes |
| Digital Video Capture Resolution | 800 x 600 |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Axis Edge Vault, thermal sensitivity 20 mK (NETD), electronic image stabilisation, Thermal Imaging System, 640 x 480 thermal resolution, multiple colour palettes, deep learning processing unit (DLPU), video streaming indicator, contrast control, brightness control, sharpness control, exposure control, compression, rotation mode, 180° image rotation, 270° image rotation, 90° image rotation, Corridor mode, image mirror, image overlay, simplex audio, half duplex audio, network speaker pairing, auto gain control, text overlay, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, VAPIX support, Pixel Counter Support, early warning fire prevention, brute force delay protection, digest authentication, memory card encryption, password protection, signed firmware, Axis device ID, secure boot, secure keystore, signed video, isothermal palette, TPM 2.0 module, spot temperature metre, 10 temperature zones detection, Adaptive Bitrate (ABR), Multi-Bitrate (MBR), Variable Bitrate (VBR), 8 - 14 µm spectral response, scheduled recording, Electronic Image Stabilizer (EIS) |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Effective Pixels | 640 x 480 |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 35 mm |
| Lens Iris | F/1.2 |
| Focus Adjustment | Athermalised |
| Min Focus Distance | 33 m |
| Horizontal Field of View (degree) | 17 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, RTCP, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 <br /> Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm | PEAP, MSCHAPv2, Dynamic PSK, TLS 1.2, TLS 1.3, PKI, 256-bit AES-XTS-Plain64 |
| Miscellaneous | |
| Included Accessories | Drill hole template, torx L-key, Resistorx L-key, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | IK10, IP66, IP67, NEMA Type 4X, NEMA TS-2, FIPS 140-2, halogen-free, CSA, cUL, KC, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, MIL-STD 810H 501.7, MIL-STD 810H 502.7, MIL-STD 810H 505.7, MIL-STD 810H 506.6, MIL-STD 810H 507.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 514.8, MIL-STD 810H 516.8, MIL-STD 810H 521.4, RCM, AS/NZS CISPR 32 Class A, ICES, NMB-003, VCCI Class A, KS C 9835, KS C 9832, FCC Part 15 Subpart B:2020 Class A, IEC 62236-4, CAN/CSA C22.2 No. 62368-1 Third Edition, IS 13252, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IEC/EN 62262, ISO 21207 method B, NEMA TS-2 (2.2.7-2.2.9), NIST SP500-267, ETSI EN 303 645, BSI, ICES-3(A)/NMB-3(A), IEEE 802.1x, IEEE 802.1ar, X.509, IEEE 802.3af, IEEE 802.3at, RoHS 2011/65/EU, EN 63000:2018 |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | DC 12 - 28 V / PoE Class 3 |
| Power Device | 5 Watt |
| Software / System Requirements | |
| Software Included | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, AXIS Speed Monitor |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
Features - AXIS - 03033-001
More Details
Product Code
05:21277865
EAN Code
7331021088054
Manufacturer
AXIS
