AXIS Q3708-PVE / Network surveillance camera / dome / outdoor / tamper-proof / weatherproof / colour (Day&Night) / 3 x 5,000,000 pixels / 2560 x 1920 / fixed focal / GbE / MPEG-4, MJPEG, H.264 / PoE Plus | 0801-001
AXIS Q3708-PVE / Network surveillance camera / dome / outdoor / tamper-proof / weatherproof / colour (Day&Night) / 3 x 5,000,000 pixels / 2560 x 1920 / fixed focal / GbE / MPEG-4, MJPEG, H.264 / PoE Plus | 0801-001

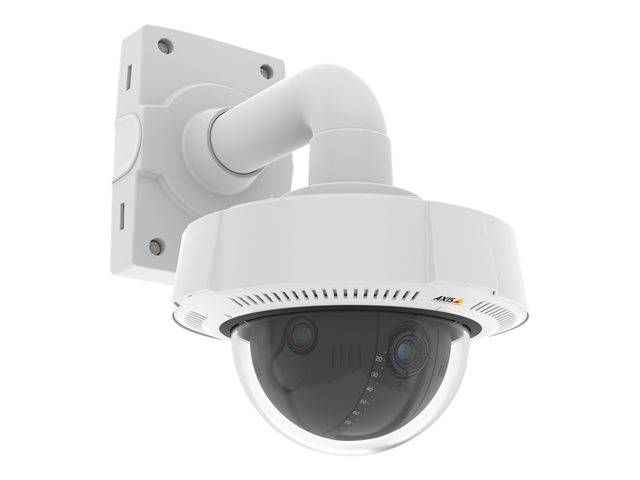

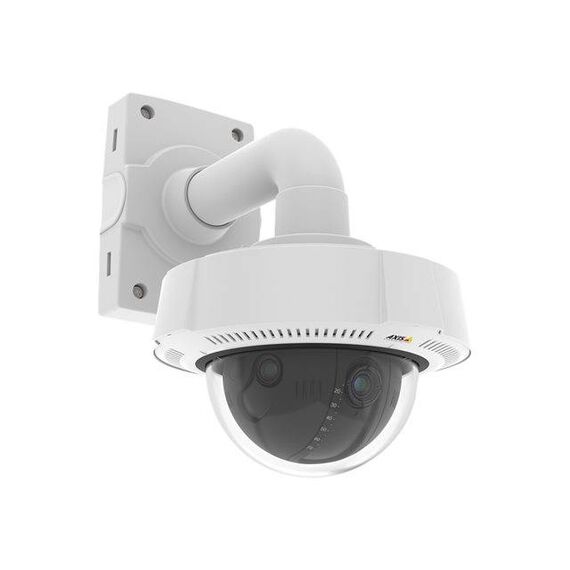

Description AXIS Q3708-PVE is a fixed dome network camera with three sensors. It gives you a 180º panoramic overview of large areas, using a single camera. And it's perfect for use in challenging light conditions, both during the day and at night. Special Features
Product features
|
Product Specification
Device Type | Network surveillance camera |
Connectivity Technology | Wired |
Width | 20.5 cm |
Depth | 20.5 cm |
Height | 17.2 cm |
Weight | 2.5 kg |
Localisation | Argentina, Australia, China, Japan, South Korea, Brazil, United Kingdom, United States, Europe |
Type | Colour - Day&Night - fixed dome - outdoor - tamper-proof / weatherproof |
Digital Video Format | MPEG-4, MJPEG, H.264 |
Max Digital Video Resolution | 2560 x 1920 |
Exposure Range | 1 sec - 1/71500 sec |
Minimum Illumination | 0.3 lux - colour - F2.8 ¦ 0.06 lux - B&W - F2.8 |
RAM | 2.5 GB |
Flash Memory | 512 MB |
Features | Sharpness control, white balance, auto exposure control, colour control, brightness control, Power over Ethernet, contrast control, Wide Dynamic Range (WDR), ONVIF support, Open Network Video Interface Forum (ONVIF), infrared cut filter, Privacy Mask Function, Video Motion Detection Technology, active tampering alarm, Text Caption Overlay, password protection, Variable Bitrate (VBR), Constant Bitrate (CBR) |
Type | 3 x 5,000,000 pixels CMOS 3 x 1/1.8" |
Type | Fixed focal |
Focal Length | 5 mm |
Lens Iris | F/2.8 |
Horizontal Field of View (degree) | 180 |
Range (degree) | -180 to +180 |
Range (degree) | 18 to 75 |
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP |
Ports | LAN/power - RJ-45 |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, IEC 60529 IP66, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-30, KCC, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 62262 IK10, EN 50121-4, IEC 62236-4, VCCI Class A, EN 50581, AS/NZS CISPR 22, RCM, IEC 60950-22, EN 60950-22, UL 60950-22, EN 55024, EN 55022 Class A, KN35, NEMA250 Type 4X, KN32 Class A |
Colour | White |
Power Requirements | PoE Plus |
Power Device | 25.5 Watt |
Service & Support | Limited warranty - 3 years |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 55 °C |
Relative Humidity (operating) | 10 - 100% (non-condensing) |
