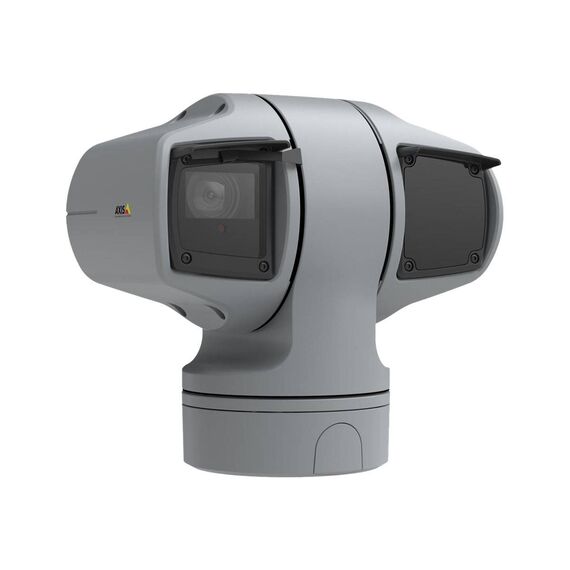

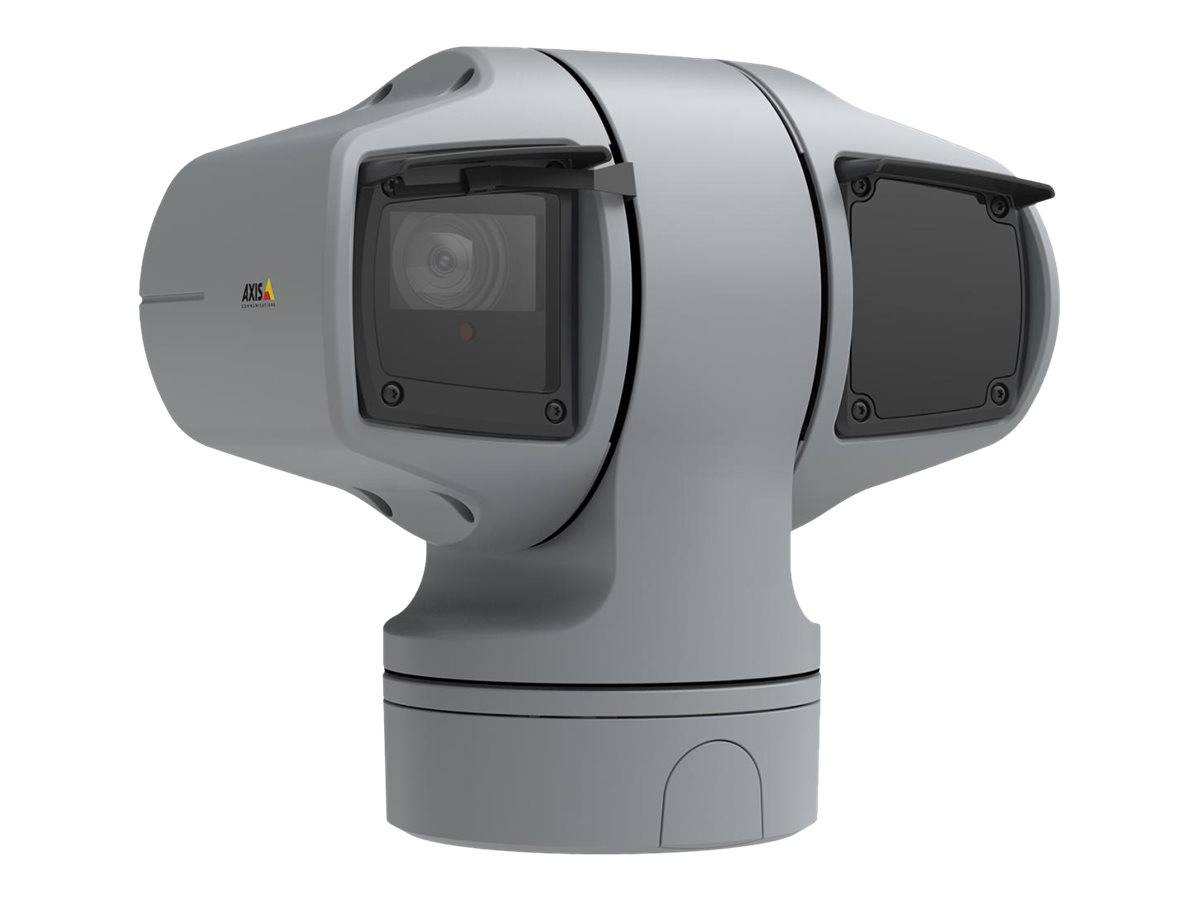

AXIS Q6225-LE / Network surveillance camera / PTZ / outdoor / dust resistant / water resistant / vandal resistant / colour (Day&Night) / 1920 x 1080 / 1080p / motorized / GbE | 02316-002
Please sign in so that we can notify you about a reply
Product Features
- Heavy-duty and robust
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. And it can withstand winds up to 245 km/h (152 mph). With vandal-resistant IK10-rated casing and NEMA 4X, NEMA TS-2, and IP66/IP68 ratings, you can rest assured that the camera housing is resistant to both harsh weather conditions and impacts. Thanks to the flexible design the camera can be mounted facing up or down depending on your needs. Furthermore, out-of-the-box it includes a bracket with sliders for safe and easy top-mounted installations. - Great image quality both far and wide
AXIS Q6225-LE offers HDTV 1080p resolution with 31x optical zoom. Thanks to long-range OptimizedIR up to 400 m (1312 ft) the camera's IR LEDs can automatically adjust to the camera zoom, so the entire field of view is always evenly illuminated. Plus, high-speed pan/tilt performance ensures exceptional coverage of large areas and great detail when zooming in. Featuring a very light-sensitive ½" inch sensor, Forensic WDR, and Lightfinder it ensures sharp, clear images even when there's both dark and light areas in the scene. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without sacrificing quality. - Intelligent protection
This high-performance PTZ camera is packed with built-in analytics to alert you when needed. It comes with AXIS Guard Suite analytics, including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for detecting motion, intrusion, and loitering. It also features autotracking functionality. And Axis Gatekeeper automatically moves the camera to a preset position when motion is detected in a pre-defined area. Thanks to Axis Object Analytics you can detect and classify people and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.
Special Features
- HDTV 1080p and 31x optical zoom
- 1/2" sensor and long-range OptimizedIR
- Electronic image stabilization
- MIL-STD-810G and NEMA TS-2 compliant
- AXIS Object Analytics preinstalled
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 33 cm |
| Depth | 21 cm |
| Height | 31.3 cm |
| Weight | 8.7 kg |
| Localisation | Europe |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - outdoor - dust resistant / water resistant / vandal resistant |
| Digital Video Format | MJPEG, H.264, AVC, HEVC, H.265, MPEG-4 Part 10, MPEG-H Part 2 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1/2 sec - 1/111000 sec |
| Minimum Illumination | 0.05 lux - colour - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0.08 lux - colour - F1.36 - 50 IRE ¦ 0.008 lux - B&W - F1.36 - 50 IRE ¦ 0 lux - IR - F1.36 - 30 IRE ¦ 0 lux - IR - F1.36 - 50 IRE |
| Infrared LEDs | Yes |
| Infrared Distance | 400 m |
| Digital Video Capture Resolution | 1920 x 1080, 320 x 180 |
| Frame Rate (max) | 60 frames per second |
| RAM | 1 GB |
| Flash Memory | 512 MB |
| Features | Sharpness control, white balance, colour control, brightness control, e-mail alerts, Variable Bitrate (VBR), OptimizedIR, 300 preset positions, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Pixel Counter Support, infrared-cut filter, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP address filtering, electronic image stabilisation, exposure zone, tour recording, guard tour, HTTPs encryption, human detection, focus recall, secure boot, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, autotracking 2, defogging, compression, text overlay, polygon privacy mask, user access log, centralised certificate management, Machine learning processing unit (MLPU), Trusted Platform Module (TPM), ONVIF (Profile M) support, AXIS Object Analytics, Multi-Bitrate (MBR), control queue |
| Image Sensor | Image Sensor |
| Type | PS CMOS 1/2" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | F/1.36-4.6 (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2.2 - 63.8 |
| Vertical Field of View (degree) | 1.3 - 37 |
| Panning | Panning |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 150 |
| Tilting | Tilting |
| Range (degree) | -90 to +90 |
| Speed (degree/sec) | Up to 150 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, NTCIP, Zeroconf, MQTT, CDP, Syslog, NTS, RTSPS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | RJ45 push-pull connector, AXIS High PoE Midspan (1 port), IK10 bumper |
| Compliant Standards | UL, cUL, EN 61000-3-2, GS, EN 61000-3-3, CB, EN 61000-6-1, FIPS 140-2 Level 2, FCC, EN 61000-6-2, EN 60950-1, IEC 60068-2-27, IEC 60068-2-6, AES-256, X.509, FCC Part 15 B Class A, Common Criteria EAL4+, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, NEMA TS-2, RCM, TLS v1.2, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, IEEE 802.3bt, NIST SP500-267, IEC/EN 62262 IK10, IEC/EN 60529 IP68, TLS v1.3, KS C 9832 Class A, KS C 9835, MIL-STD-810G military testing, CAN/CSA-C22.2 No. 60950-22, IS 13252, IEEE 802.1ar, ICES-3(A)/NMB-3(B) |
| Colour | Urban grey, NCS S 5502-B |
| Power | Power |
| Power Requirements | High PoE Class 8 |
| Power Device | 25 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | AXIS Camera Station, Windows decoder 1-user licence, AXIS Video Motion Detection, AXIS Object Analytics |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -55 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% (condensing) |
Features - AXIS - 02316-002
More Details
Product Code
CE81015
EAN Code
7331021075856
Manufacturer
AXIS
