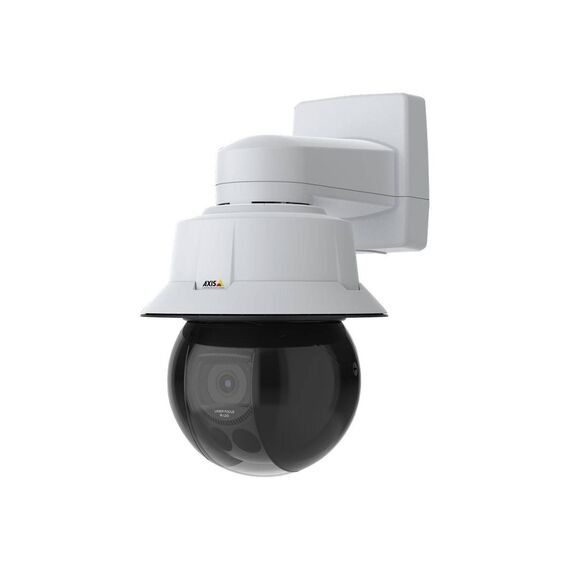

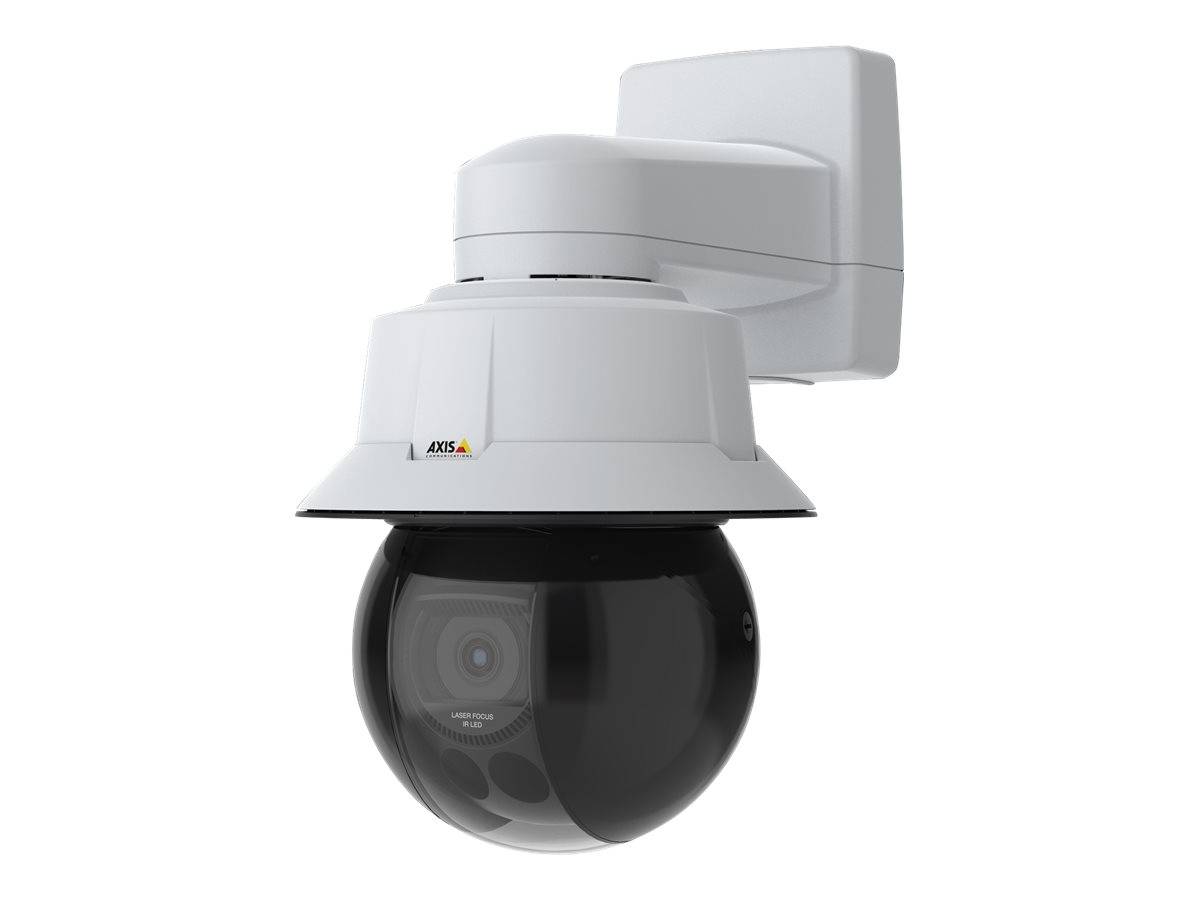

AXIS Q6315-LE 50 Hz / Network surveillance camera / PTZ / outdoor / vandal-proof / colour (Day&Night) / 2 MP / 1920 x 1080 / 1080p / auto iris / motorized / GbE / MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 / High PoE | 01924-002
Please sign in so that we can notify you about a reply
Special Features
- 1/2" sensor with 31x optical zoom
- IR illumination and D/N functionality
- Autotracking 2, orientation aid and AXIS Object Analytics
- Laser focus for precise focus with Quick-zoom <1sec
- TPM, FIPS 140-2 level 2 certified
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 23.9 cm |
| Depth | 23.9 cm |
| Height | 26.1 cm |
| Weight | 4.8 kg |
| Localisation | Europe |
| Camera | Camera |
| Type | Colour - Day&Night - pan / tilt / zoom - outdoor - vandal-proof |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Video Modes | 1080p |
| Digital Zoom | 12 |
| Exposure Range | 1/2 sec - 1/111000 sec |
| Minimum Illumination | 0.06 lux - colour - F1.36 - 30 IRE ¦ 0.001 lux - B&W - F1.36 - 30 IRE ¦ 0.09 lux - colour - F1.36 - 50 IRE ¦ 0.008 lux - B&W - F1.36 - 50 IRE ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 300 m |
| Frame Rate (max) | 50 frames per second |
| RAM | 1024 MB |
| Flash Memory | 512 MB |
| Features | Sharpness control, digital image rotation, digital image freeze, white balance, colour control, progressive scanning, brightness control, Wide Dynamic Range (WDR), infrared cut filter, built-in IR illuminator, Electronic Image Stabilizer (EIS), Video Motion Detection Technology, password protection, shock detection, Variable Bitrate (VBR), OptimizedIR, 300 preset positions, Forensic Capture (120 dB), Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Sharpdome technology, laser focus, exposure control, IP address filtering, tour recording, guard tour, HTTPs encryption, event tracking, auto tracking 2.0, TPM 2.0 module, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 technology, Nadir flip, Machine learning processing unit (MLPU) |
| Image Sensor | Image Sensor |
| Type | 2 MP CMOS 1/2" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 31 x |
| Focal Length | 6.91 mm - 214.64 mm |
| Lens Iris | F/1.36-4.6 auto iris (P-Iris) |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 2 - 60.6 |
| Vertical Field of View (degree) | 1.1 - 36.5 |
| Panning | Panning |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 550 |
| Tilting | Tilting |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 500 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, SMB, SSH, QOS, CIFS, SRTP, SFTP, NTCIP, USGv6, MQTT |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | AXIS High PoE Midspan (1 port), IP66-rated RJ45 connector kit |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, IEC 60825-1 Class 1, KN35, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, IEC/EN/UL 60950-22, IEC/EN 62471, ISO 21207, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, IEC/EN 60529 IP66, CAN/CSA C22.2 No. 60950-22, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, FCC Part 15 Subpart B |
| Colour | White |
| Power | Power |
| Power Requirements | High PoE |
| Power Device | Power injector - external AC 100-240 V |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -50 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
Features - AXIS - 01924-002
More Details
Product Code
CA89374
EAN Code
7331021072343
Manufacturer
AXIS
