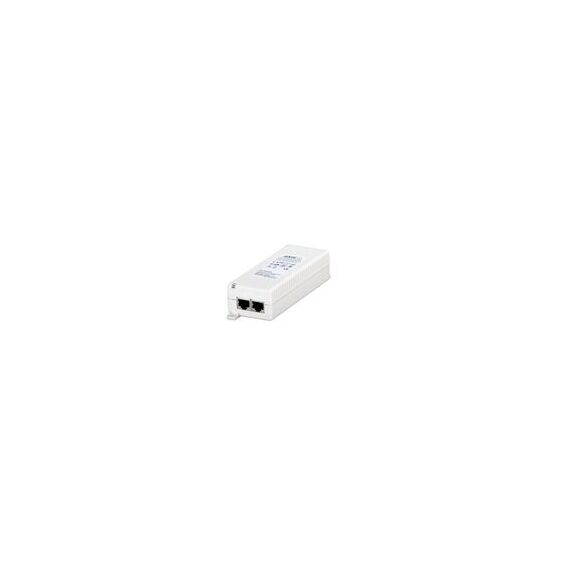

AXIS 5026-202 Axis T8120 15W MIDSPAN 1-PORT (5026-202)
Axis T8120 15W MIDSPAN 1-PORT (5026-202)- Reduced installation costs
- IEEE 802.3af compliance
Easier and faster installations
Power over Ethernet PoE offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.
No need for power outlets
With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.
Axis PoE midspans and PoE splitters
Axis PoE midspans provide power max. 15.4 W per port over Ethernet cables to network video products with built-in Power over Ethernet support.
For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.
Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.
|Input current:||0.5 A|
|Input frequency:||47 - 63 Hz|
|Input voltage:||100 - 240 V|
|Ethernet LAN data transfer rates:||10, 100, 1000 Mbit/s|
|Ethernet interface type:||Gigabit|
|Power over Ethernet PoE Support:||Y|
|Ethernet LAN RJ-45 ports quantity:||2|
|Dimensions WxDxH:||53 x 140 x 33 mm|
Axis T8120 15W MIDSPAN 1-PORT (5026-202)
