AXIS TM3101 Pendant Mount / Camera mount / ceiling mountable, wall mountable / indoor / white / for AXIS M2025, M2026, M3044, M3047, M3048, M3106, M4206, P3904, P3905, P3915, P3925, P3935 | 01742-001

01742-001
62.66
(74.57 inc. VAT)
Availability: 3 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.Express DeliveryExpress delivery within 2 to 3 business days.
Find similar
Delivery
Payment options
Product CodeB093689 EAN Code7331021067103 ManufacturerAXIS

AXIS TM3101 Pendant Mount / Camera mount / ceiling mountable, wall mountable / indoor / white / for AXIS M2025, M2026, M3044, M3047, M3048, M3106, M4206, P3904, P3905, P3915, P3925, P3935 | 01742-001

Description

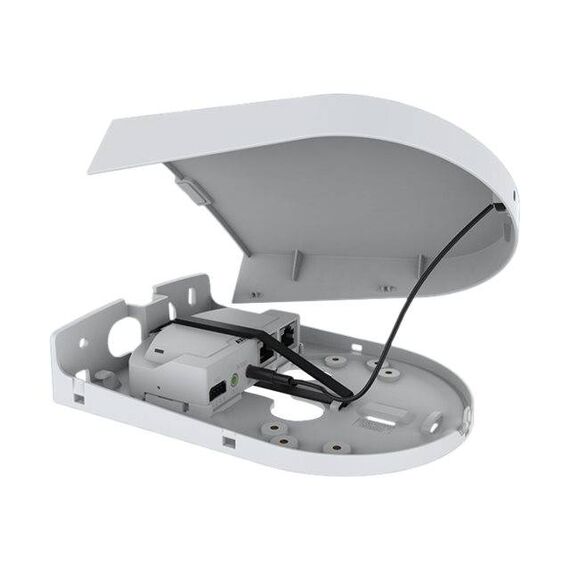

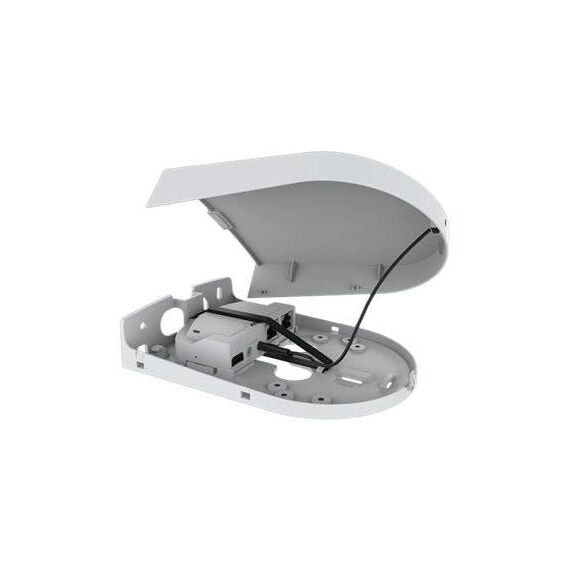

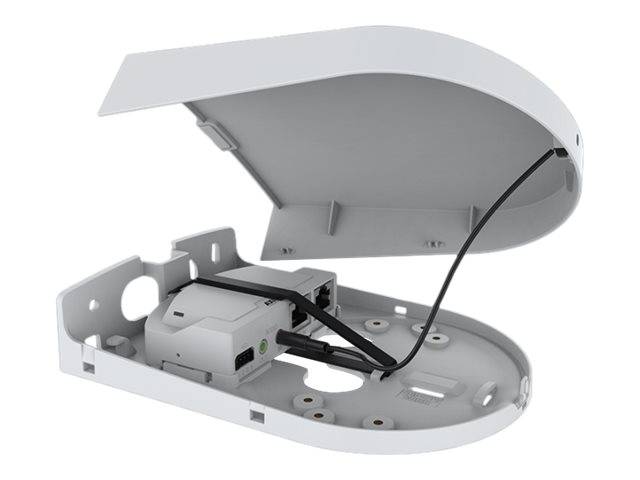

AXIS TM3101 Pendant Wall Mount allows a clean, pendant-style mounting of Axis mini fixed dome cameras. The concealed mounting makes it blend in with the wall. It's compatible with a wide range of Axis products. The compartment allows for secure storage of connectivity devices, and even a microphone. This compact mount is helpful to position the camera exactly where you need it, such as for installations above shop fronts with Axis retail analytics, such as people counting and face recognition.

AXIS TM3101 Pendant Mount / Camera mount | 01742-001

Special Features

  • Contemporary design, becomes one with the wall
  • Concealed cabling and mounting screws
  • Compartment for microphone and connectivity devices
  • Mount on walls, counter tops, and ceilings

Product features

  • Blends right in
    The contemporary and elegant design benefits from concealed mounting screws and becomes one with the wall. Available in both black and white models, the casing can be easily re-painted in any color helping it to blend in discreetly and seamlessly with any indoor surroundings.
  • Spacious and secure
    AXIS TM3101 features an ingress-protected compartment designed specifically for secure storage of connectivity devices so they can be safety mounted at the same point. It's easy to add whatever connectivity devices you need, such as support for audio using AXIS T6101 Audio and I/O Interface and AXIS Device Microphone A. Furthermore, with AXIS T8643 PoE+ over Coax Compact you can route pre-existing coax cabling saving you time and money. Plus, everything is protected, and the finished installation is aesthetically pleasing.
  • Designed for flexible installation
    Thanks to its flexible design, AXIS TM3101 can be installed in various directions without the need for additional pendant kits. For instance, it can be installed at entrances on walls pointing downwards for optimized people-counting or pointing sideways for enhanced facial recognition analytics. It can be mounted on junction boxes using optional accessory AXIS TP3701 J-Box & Pole Adapter. Plus, when challenged with delicate wall or ceiling surfaces that are not mounting-friendly, it's possible to mount on hard ceilings and counter tops. This makes AXIS TM3101 ideal for surveillance at border controls and cash check-out counters. Furthermore, the mount features multiple cable entries making installation quick and easy.


Product Specification

Product Type Camera mount
Package Content Mounting screws
Placing / Mounting Ceiling mountable, wall mountable
Indoor / Outdoor Indoor
Product Material PC/ABS, glass fibre reinforced polyamide
Width 17.5 cm
Depth 12.4 cm
Height 3.9 cm
Weight 159 g
Colour White
Features PVC free, max load 1.5 kg
Service & Support Limited warranty - 3 years
Min Operating Temperature -10 °C
Max Operating Temperature 50 °C
Designed For AXIS M2025-LE, M2026-LE Mk II, M3044-V, M3044-WV, M3045-V, M3045-WV, M3046-V, M3047-P, M3048-P, M3104-L, M3104-LVE, M3105-L, M3105-LVE, M3106-L Mk II, M3106-LVE Mk II, M4206-LV Network Camera, M4206-V Network Camera, P3904-R Mk II Network Camera, P3905-R Mk II Network Camera, P3915-R Mk II Network Camera, P3925-R, P3935-LR

Features - AXIS - 01742-001

More Details
Product Code
B093689
EAN Code
7331021067103
Manufacturer
AXIS
