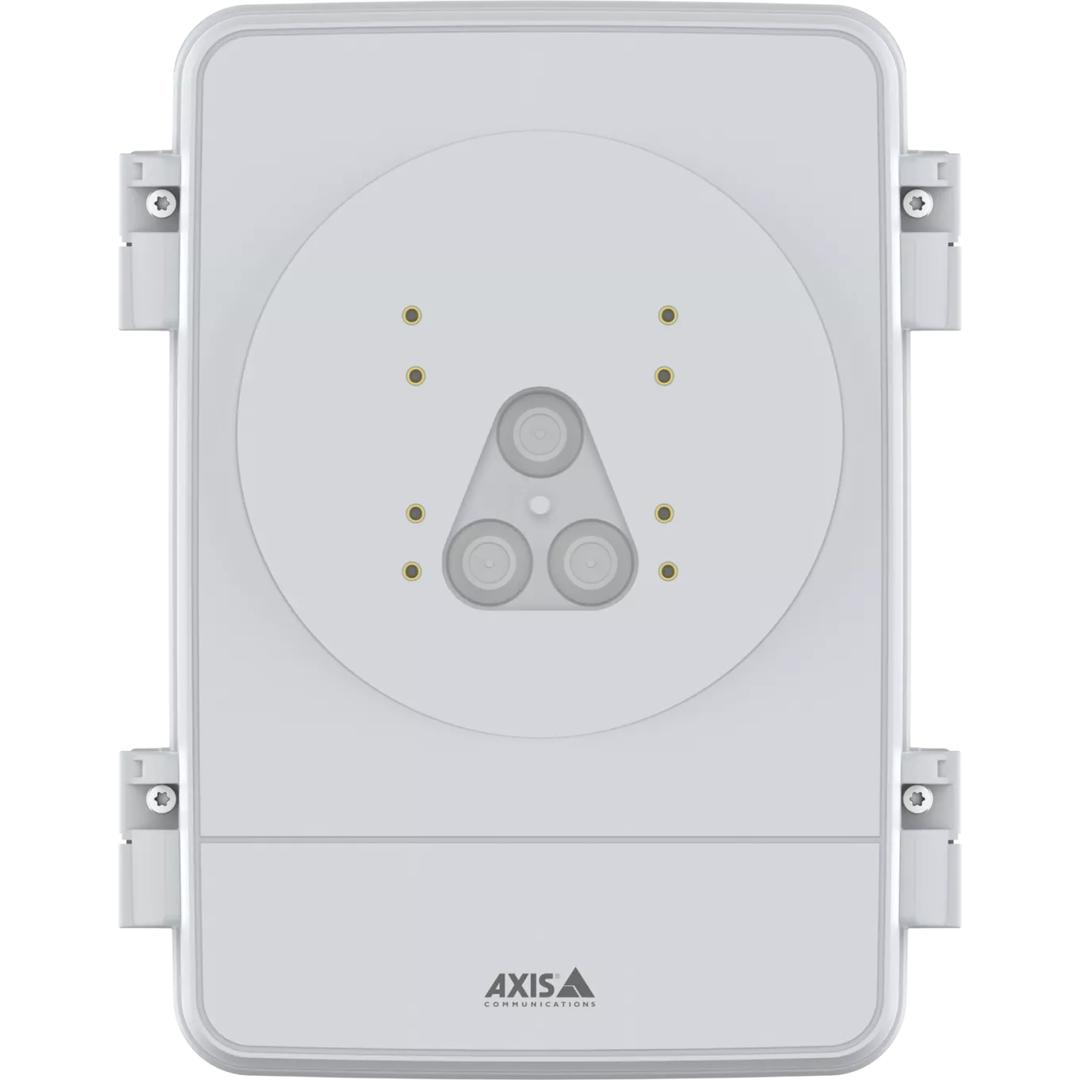

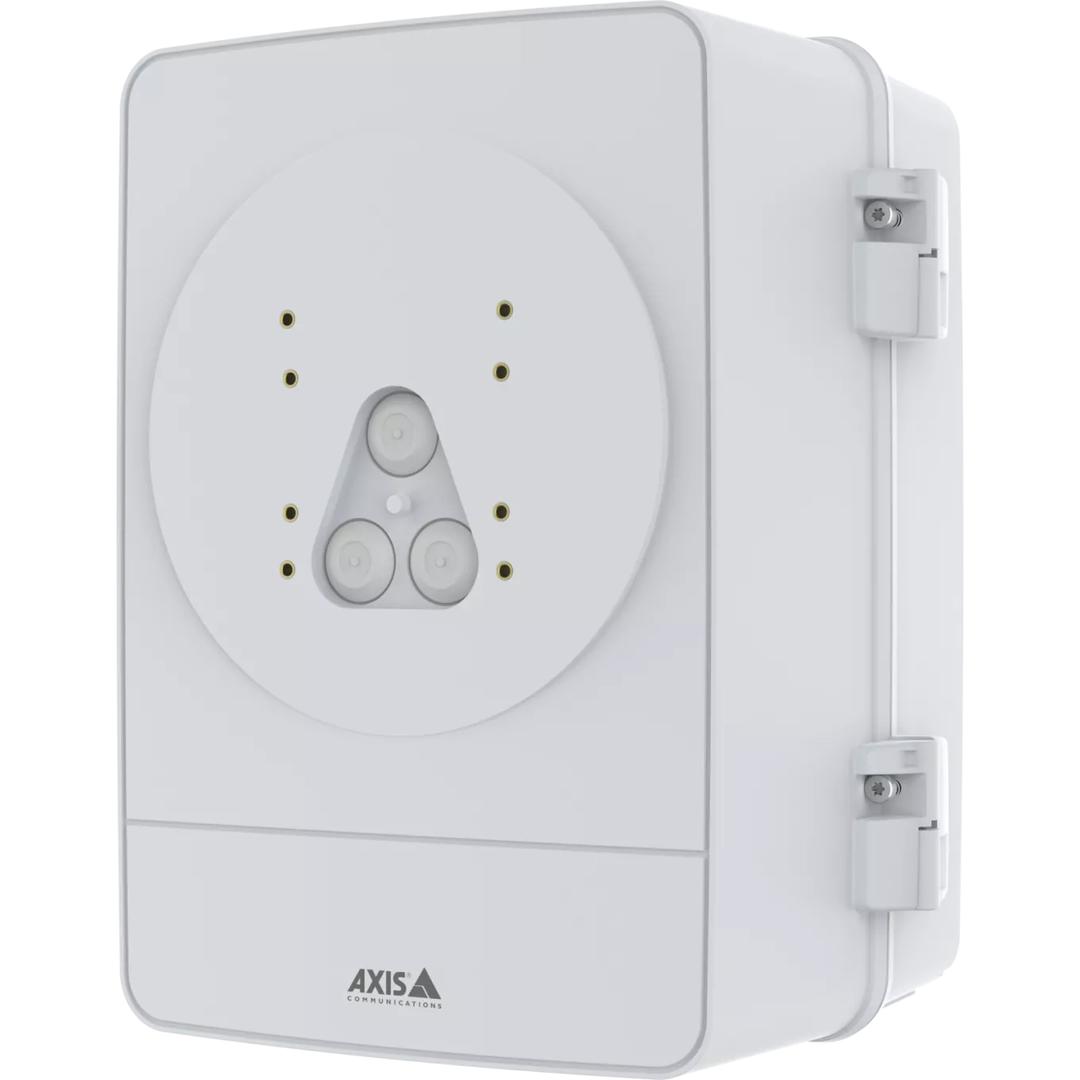

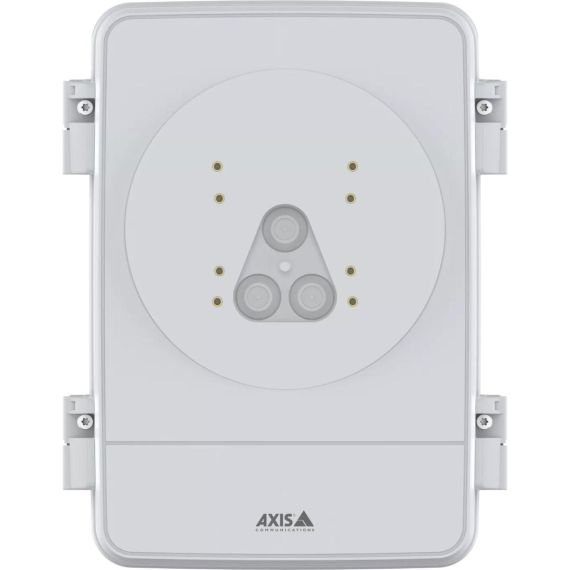

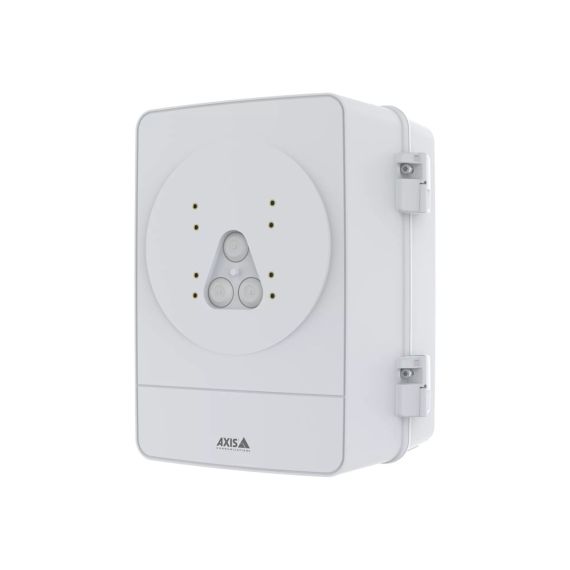

AXIS TQ1817-VE / Cabinet / surveillance / white, NCS S 1002-B, stainless steel / TAA Compliant / for AXIS M3215, M3216, P3265, P3267, Q3538, Q3626, Q3628; P32 Series; P38 Series; Q18 Series | 03085-001
03085-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Durable materials
Constructed from stainless steel and polycarbonate, this cabinet is engineered to resist harsh environmental conditions and vandalism. - Extreme climate resilience
With the ability to operate in temperatures as low as -40°C and as high as 75°C, this cabinet is ideal for challenging weather. - Comprehensive compliance
Meets rigorous standards such as IK10 and IP66, ensuring protection against impacts, dust, and water ingress. - Secure installation

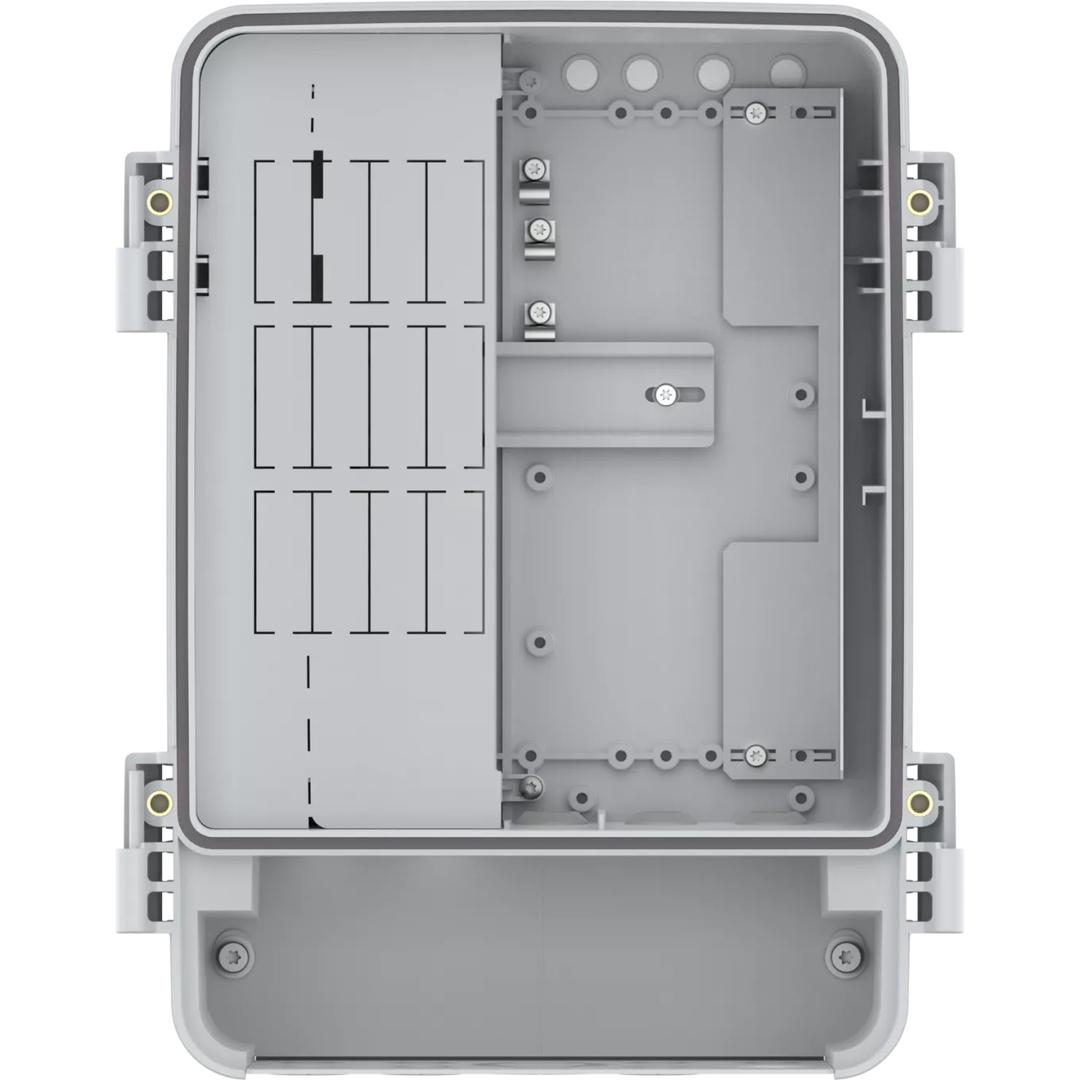

Comes with a mounting plate for straightforward installation, making it versatile for different surveillance scenarios. - Vandal-resistant design
Designed to withstand intentional damage, ensuring the integrity of the surveillance equipment inside.
Special Fetures
- Robust design withstands extreme temperatures from -40°C to 75°C
- Vandal-resistant construction ensures long-lasting durability
- Complies with multiple IEC and UL standards for protection

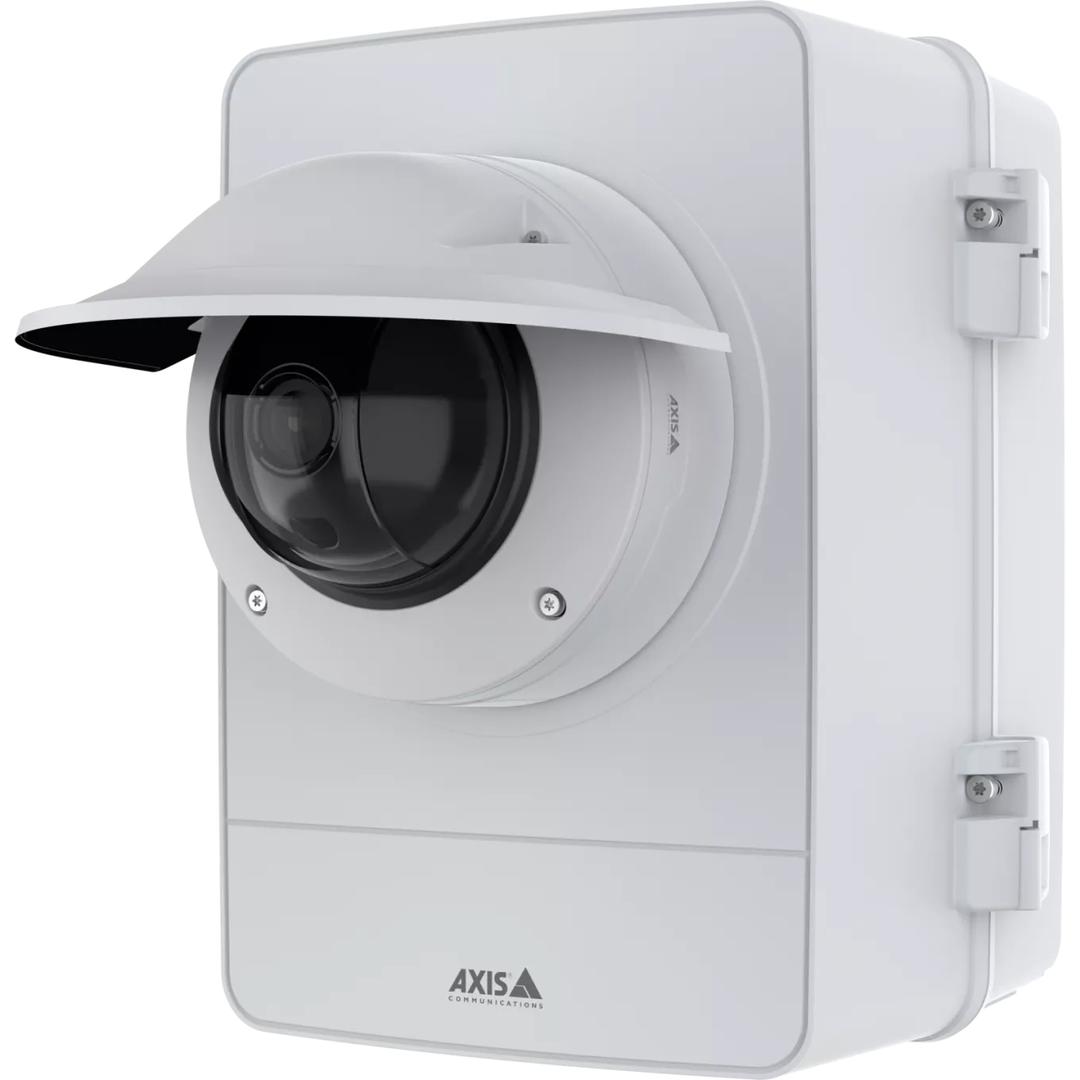

- Suitable for a variety of surveillance setups
- Includes a mounting plate for easy installation
Product Specification
| Product Type | Cabinet |
| Package Content | Mounting plate |
| Product Material | Polycarbonate, stainless steel |
| Width | 28.2 cm |
| Depth | 22.9 cm |
| Height | 36.1 cm |
| Weight | 4.1 kg |
| Colour | White, NCS S 1002-B, stainless steel |
| Localisation | Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United States, United Kingdom |
| Miscellaneous | |
| Features | Vandal-resistant, extended depth |
| Compliant Standards | UL/cUL, CAN/CSA C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529, IP66, IEC/EN 62262, IK10, NEMA 250 Type 4X |
| TAA Compliant | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Compatibility Information | |
| Designed For | AXIS M3077-PLVE, M3215-LVE, M3216-LVE, M4308-PLE, P3265-LVE, P3265-LVE-3, P3267-LVE, P3268-LVE, P3818-PVE, Q1700-LE License Plate Camera, Q3536-LVE, Q3538-LVE, Q3626-VE, Q3628-VE, Q3819-PVE <br /> AXIS P32 Series P3268-SLVE <br /> AXIS P38 Series P3827-PVE <br /> AXIS Q18 Series Q1805-LE, Q1806-LE, Q1808-LE, Q1809-LE |
Features - AXIS - 03085-001
More Details
Product Code
05:21277836
EAN Code
7331021088887
Manufacturer
AXIS
