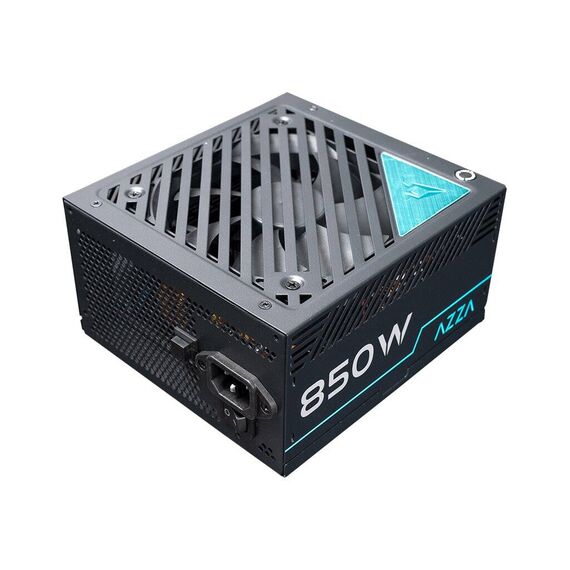

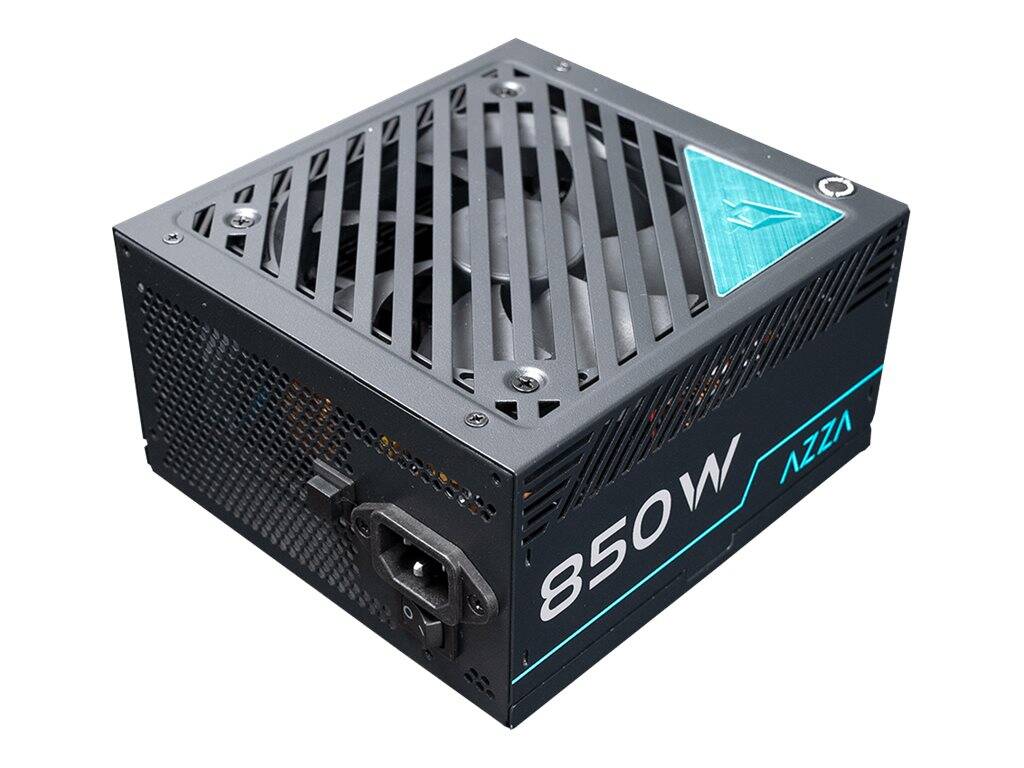

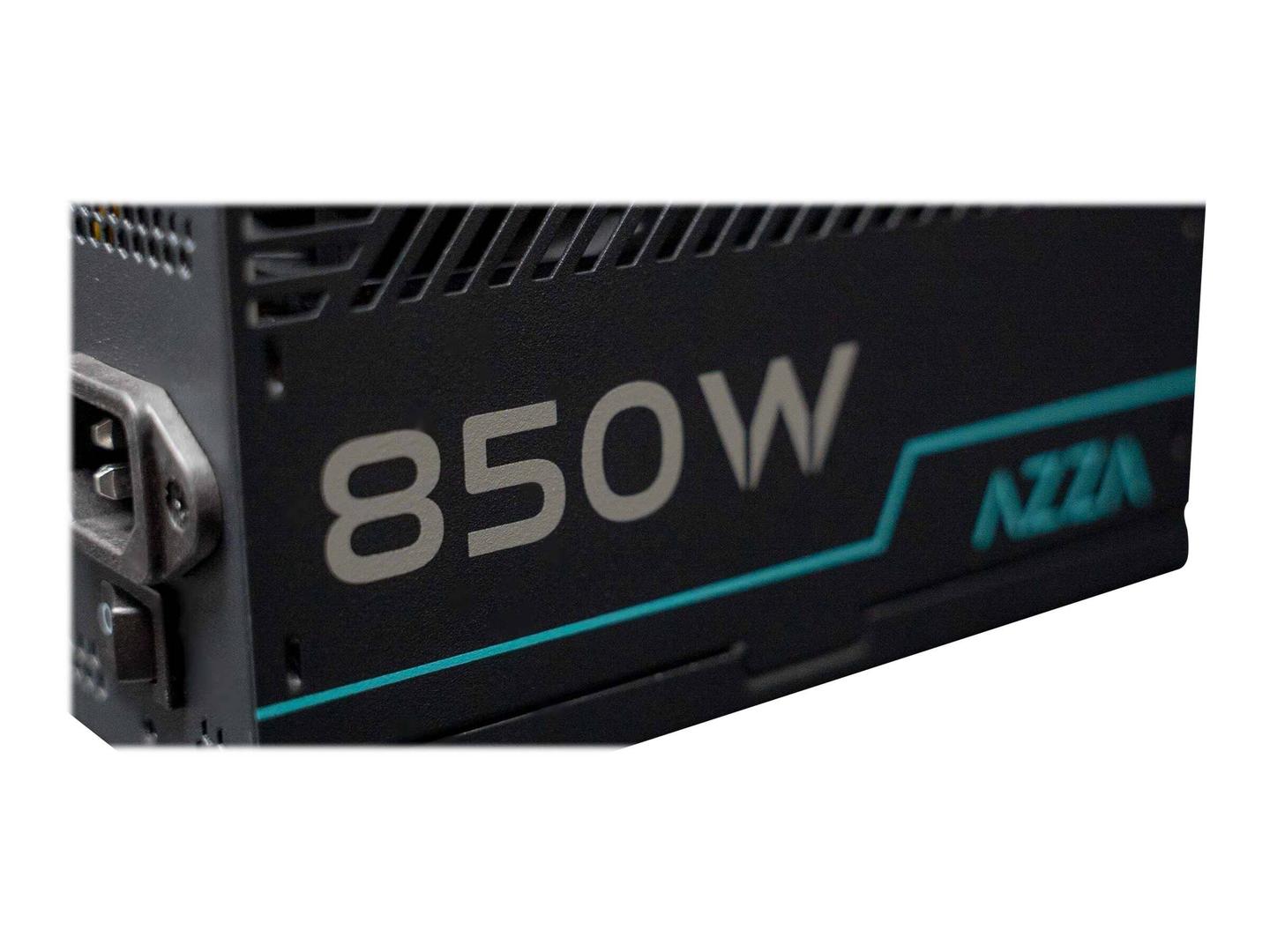

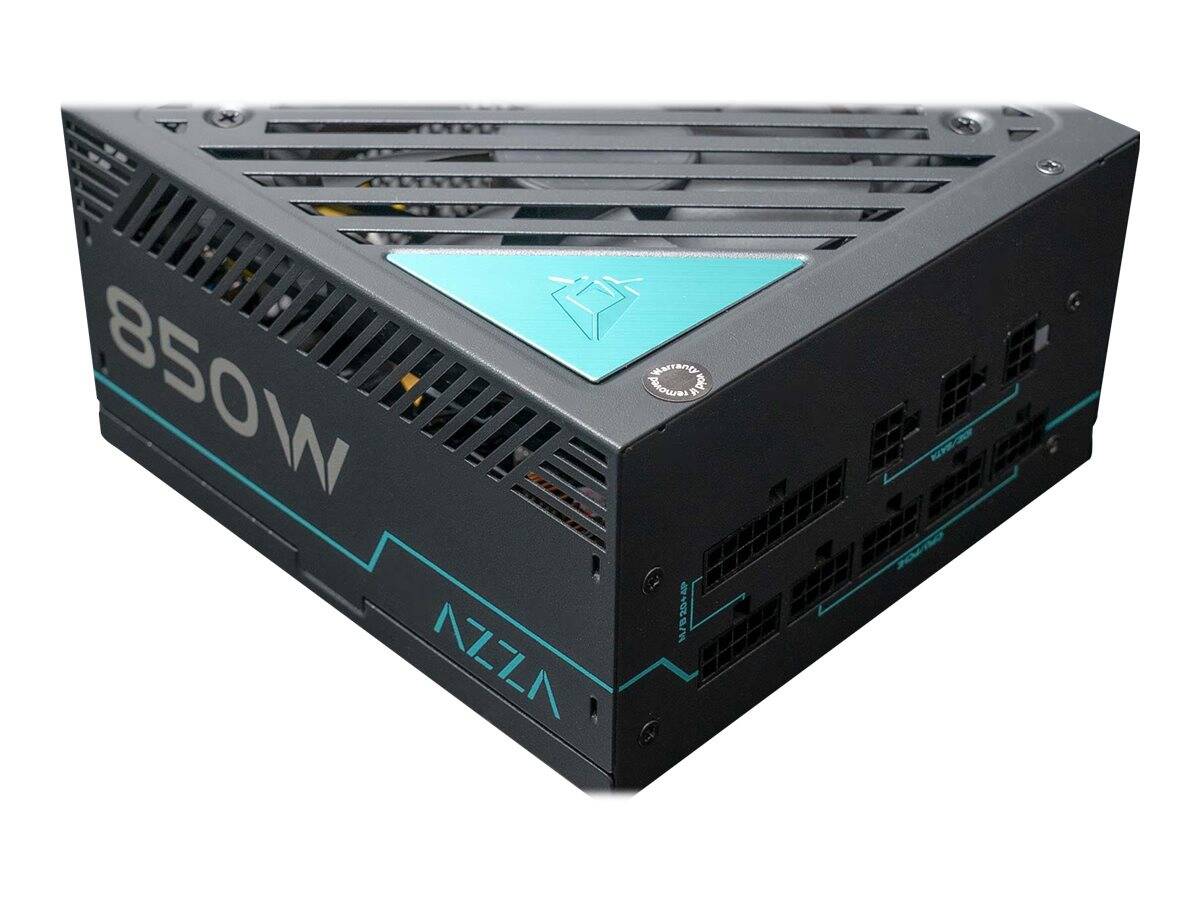

AZZA PSAZ-850G14 - Power supply (internal) - ATX12V 2.4/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 850 Watt | 850G14
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |

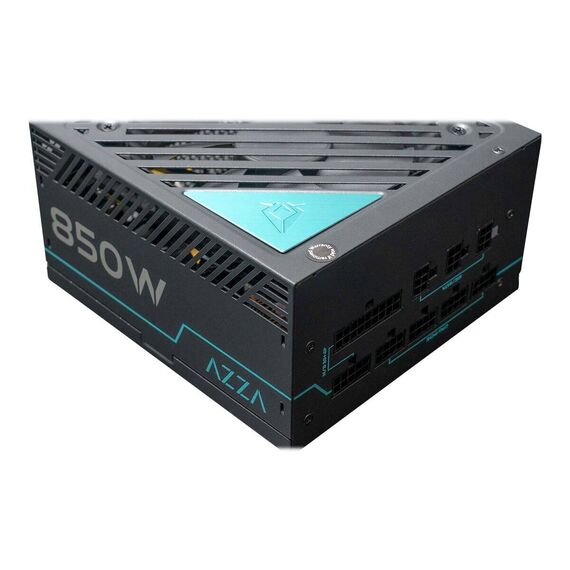

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 3 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Efficiency | 89% (230VAC), 87% (115VAC) |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |

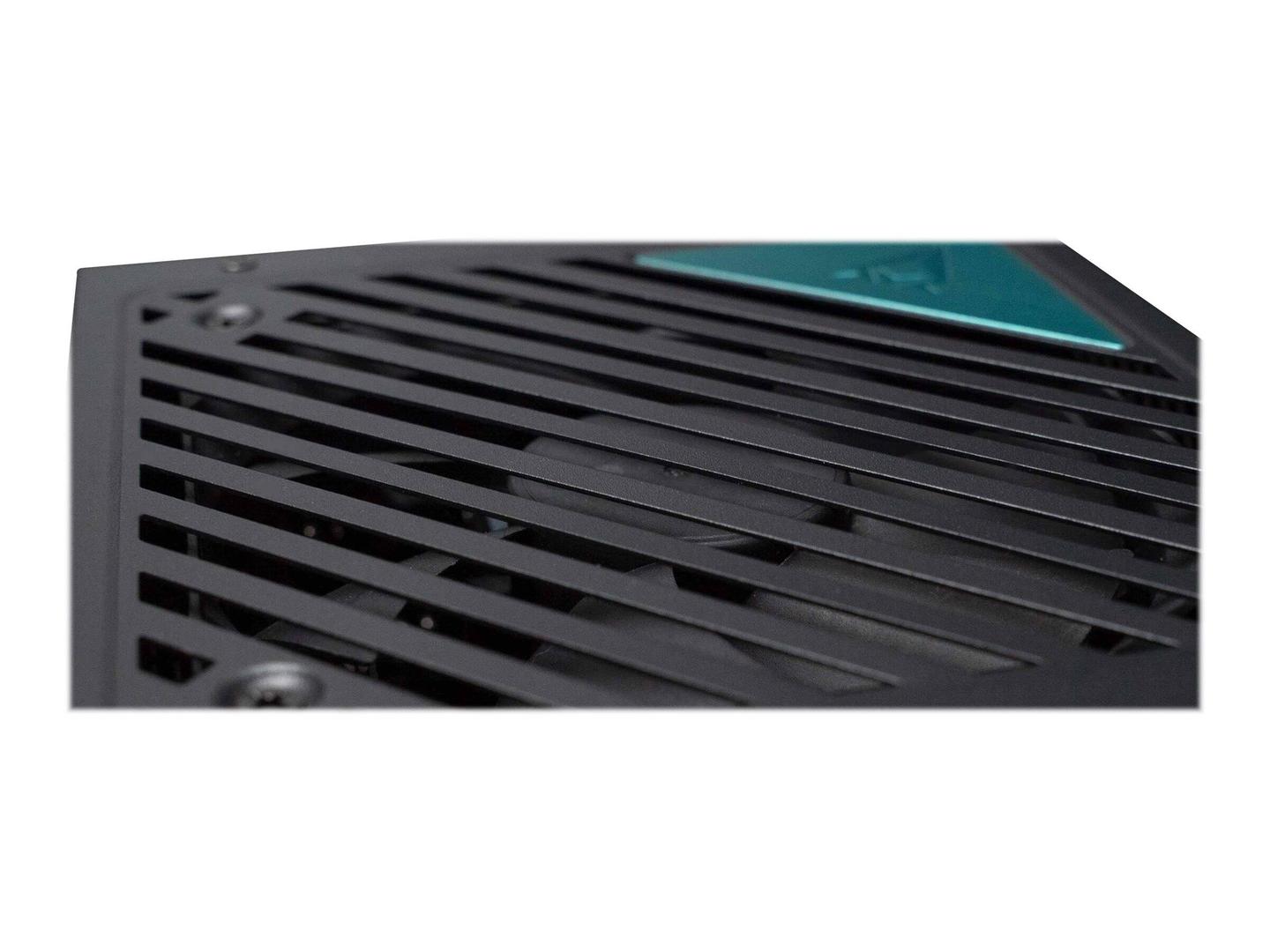

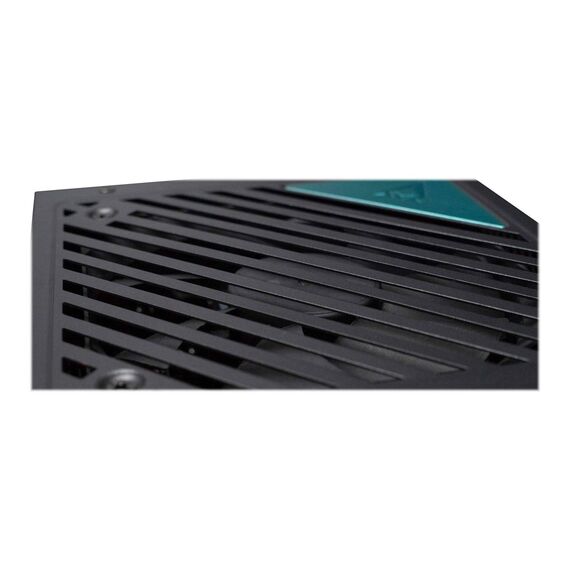

| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, fully modular |
| Compliant Standards | TUV, CB, FCC, RoHS, cTUVus |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Sound Emission | 35 dBA |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 2.55 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 cm |
| Shipping Depth | 35 cm |
| Shipping Height | 11.5 cm |
| Shipping Weight | 2.68 kg |
Features - azza - 850G14
More Details
Product Code
04:405240
EAN Code
4712839557353
Manufacturer
azza
