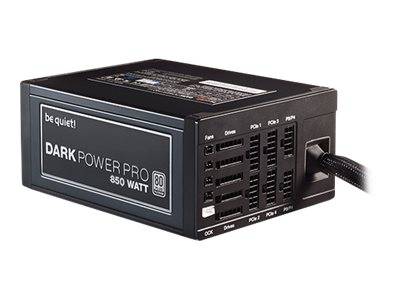

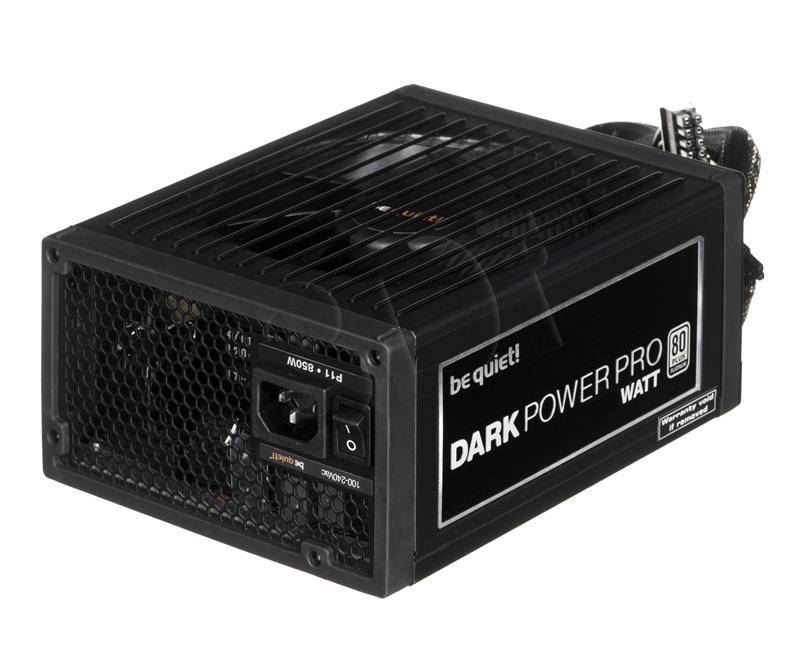

Be quiet! Dark Power PRO 11 850W / Power supply / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Platinum / AC 100-240 V / 850 Watt / active PFC / black | BN253
Be quiet! Dark Power PRO 11 850W / Power supply / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Platinum / AC 100-240 V / 850 Watt / active PFC / black | BN253
Description It is a fact of the modern world that high technology requires constant refinement and unending improvement - and that is even truer for those who would be leaders. Dark Power Pro power supplies are renowned as quiet and efficient high-performance PSUs. The Dark Power Pro 11 850W model takes that a step further with a power conversion topology that delivers high performance, add to that an unparalleled array of enhancements that augment this unit's compatibility, convenience of use, reliability, and safety, and the result is a technologically-advanced power supply. Be quiet! Dark Power PRO 11 850W / Power supply / 80 PLUS Platinum / 850 Watt | BN253Special Features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
PSU Form Factor | ATX |
Colour | Black |
Input Voltage | AC 100-240 V |
Frequency Required | 50 - 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 7 x 4 PIN internal power ¦ 8 x 15 pin Serial ATA power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 6 pin PCI Express power ¦ 2 x 4 PIN mini-power connector |
Power Capacity | 850 Watt |
Output Current | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 30 A ¦ +12V2 - 30 A ¦ +12V3 - 35 A ¦ +12V4 - 35 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A |
Efficiency | 94.38% at 50% Load, 92.4% at 100% Load, 92.4% at 20% Load |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Platinum |
Included Accessories | Cable ties, thumbscrews |
Cables Included | Power cable - external - 1.5 m |
MTBF | 100,000 hours |
Cooling System | 135mm fan |
Features | Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, undervoltage protection, short-circuit protection, 4 x 12V rail, temperature controlled fan, CrossFireX ready, Intel 4th-gen CPU (Haswell) compatible, fluid dynamic bearing cooling fan, semi-modular |
Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, ERP, RCM, CU-TR |
ENERGY STAR | Yes |
Service & Support | Limited warranty - 5 years |
Max Operating Temperature | 40 °C |
Width | 15 cm |
Depth | 19.3 cm |
Height | 8.6 cm |
Weight | 2.38 kg |
Shipping Width | 34.8 cm |
Shipping Depth | 27.2 cm |
Shipping Height | 11.8 cm |
Shipping Weight | 4.59 kg |
